IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
8 - 136 Section 8-6 - Top Console Parts Replacement Overview
8-6-23-3 Assemble the A/N Keyboard and the A/N Keyboard Enclosure (cont’d)
3.) Position the Ground Cable (C) in the opening of the A/N Keyboard Bottom Enclosure.
4.) Install the A/N Keyboard Top Enclosure onto the keyboard by snapping the eight small clips on the
Top Enclosure onto the keyboard metal base plate. The eight positions are marked in the figure
below.

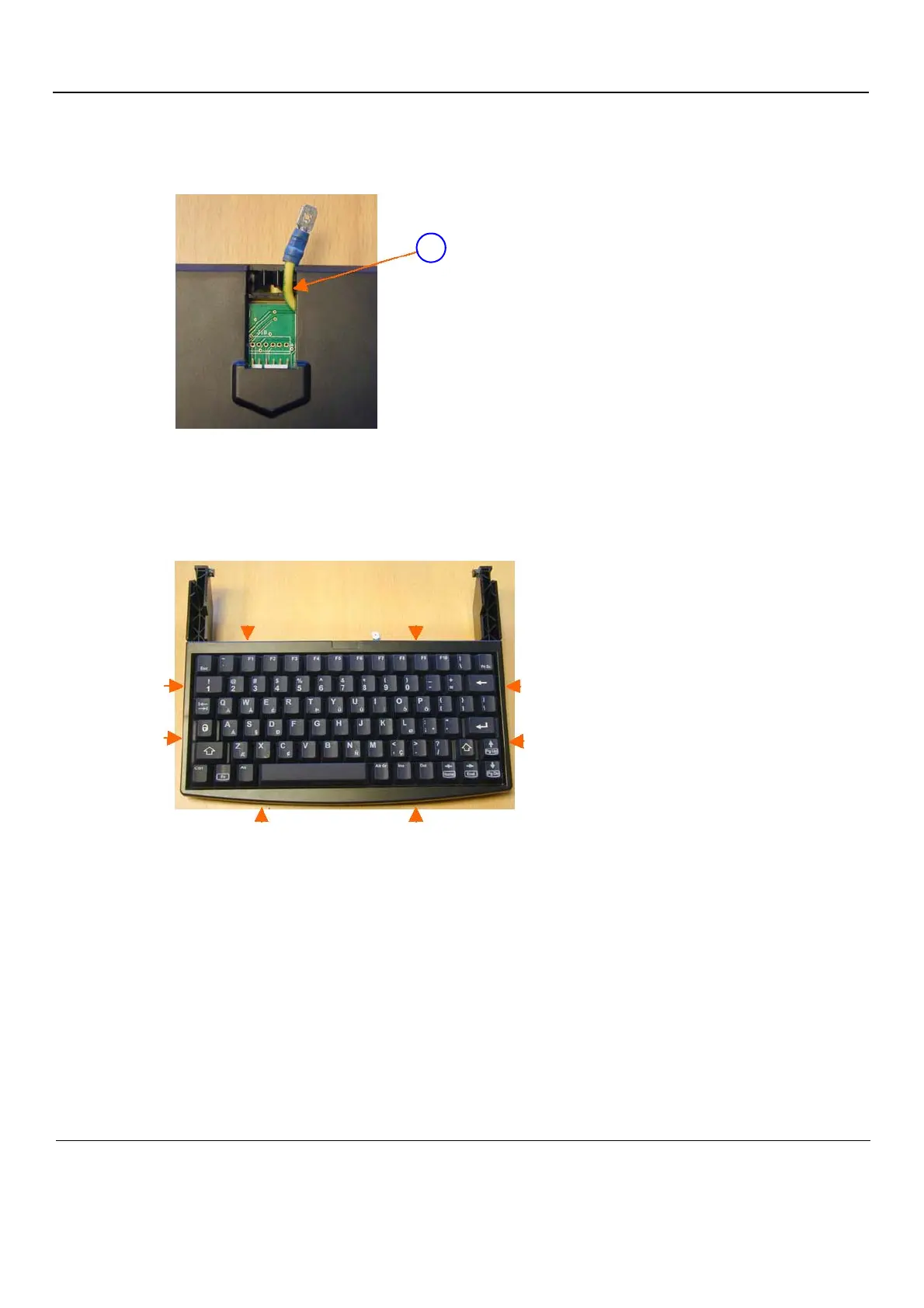

Figure 8-120 Ground Cable (C) in the opening of the A/N Keyboard Bottom Enclosure
Figure 8-121 Install A/N Keyboard Top Enclosure
