IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 8 - Replacement procedures 8 - 167
8-7-3 XY Park Lock replacement
8-7-3-1 Preparation
Unlock the XY, either by using the release knobs or by manually release the lock.
1.) At the rear of the VIVID E9 / VIVID E7, release the console’s XY mechanism by inserting a
screwdriver into the release point and pressing until release.
8-7-3-2 XY Park Lock removal
1.) Remove four screws.
2.) Carefully pull out the XY Park Lock assembly.
3.) Disconnect the cable at the connector.
4.) Remove the XY Park Lock assembly.
8-7-3-3 XY Park Lock installation
1.) Install the cable from the XY Park Lock assembly in the assigned connector.
2.) Position the XY Park Lock assembly.
3.) Install the four screws.
8-7-3-4 Verification
Verify that the XY locks and unlocks as intended.
If needed, adjust the locking mechanism as described in:
Section 6-7 "Adjusting the XYZ Mechanism" on page 6-12.

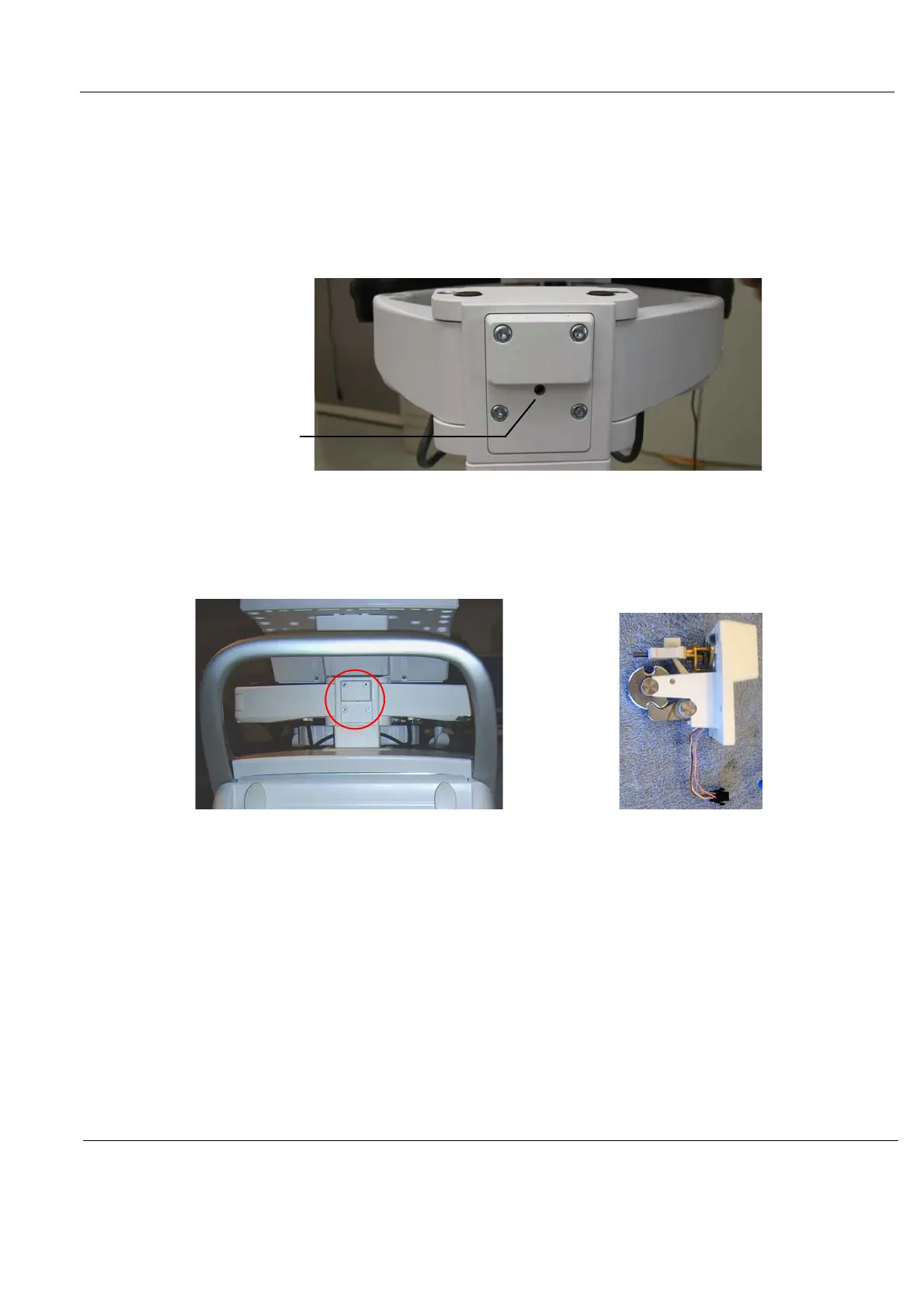

Figure 8-147 XY mechanism release
Figure 8-148 Remove four screws
XY
(FROGLEG)
RELEASE
