IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 8 - Replacement procedures 8 - 175
8-7-6-2 XYZ Control Assembly removal procedure
1.) Disconnect the cables to the XYZ Control Assembly.
2.) Unscrew and remove two (2x) screws.
3.) Pull the top of the XYZ Control Assembly forwards, up and away from the bracket.
8-7-6-3 XYZ Control Assembly installation procedure
1.) Thread the XYZ Control Assembly into position.
2.) Install the three screws at the top, rear. (M6x16 sunken. Torque: 9.8 Nm.)
3.) Install the two remaining screws on the top. (M4x8, sunken. Torque: 4.9 Nm.)
4.) Connect the cables to the XYZ Control Assembly.
5.) Install the Top Cover.
6.) Install the Rear Cover.
7.) Install the Left Side Cover.

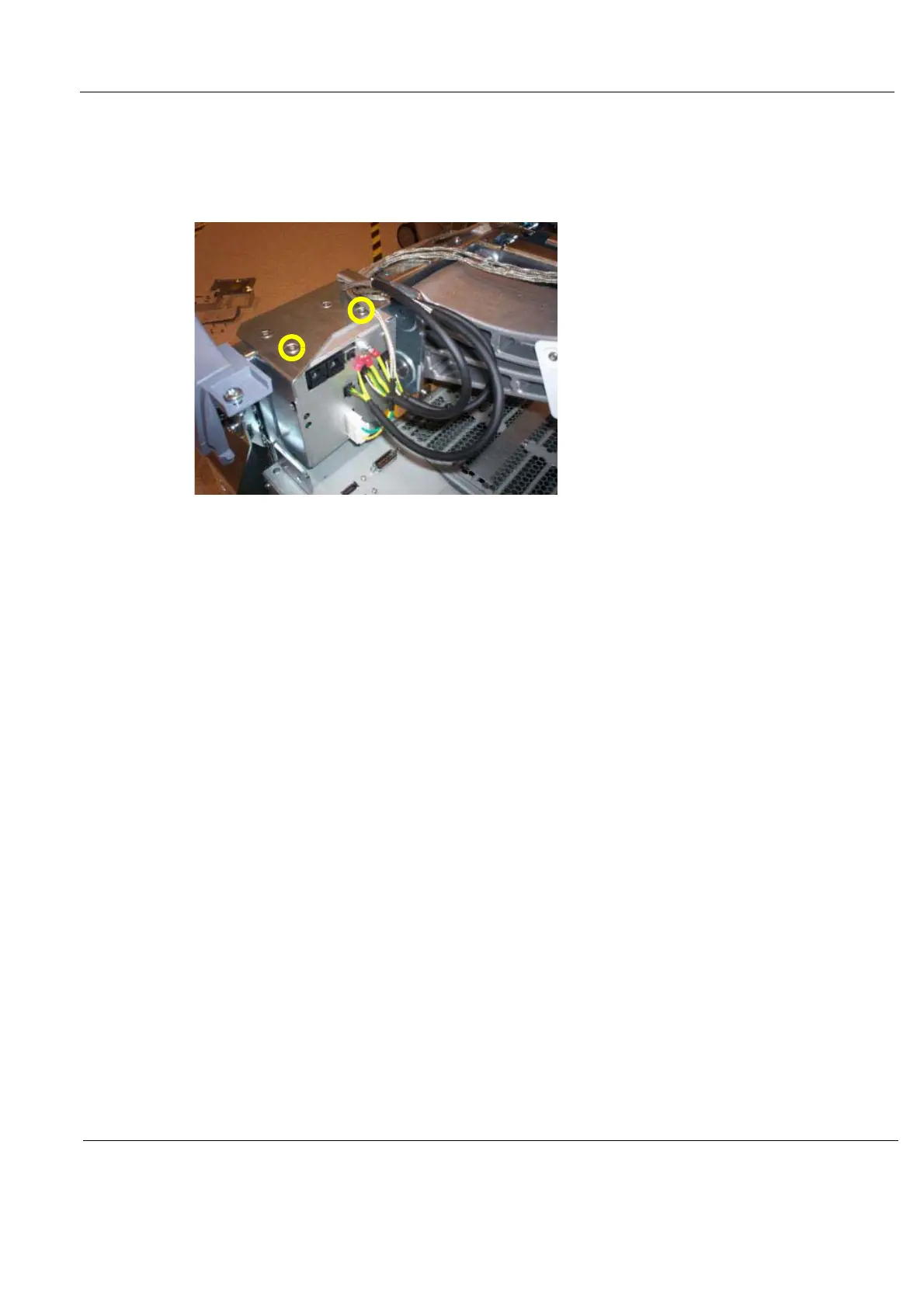

Figure 8-158 XYZ Control Assembly removal
To Next Page
