8-8-2-2 Remove and clean the filters
Clean the air filters to ensure that a clogged filter does not cause the VIVID E9 / VIVID E7 to overheat
and reduce system performance and reliability. It is recommended the filters be cleaned quarterly (once
every three months) or more often in locations where high levels of dust are present.
The VIVID E9 / VIVID E7 has two air filters which need to be cleaned. The top air filter is located on the
back of the VIVID E9 / VIVID E7 below the power cord and the bottom air filter is located underneath
the VIVID E9 / VIVID E7.
Follow these steps to remove and clean the rear filter and the “handle type“ bottom filter.

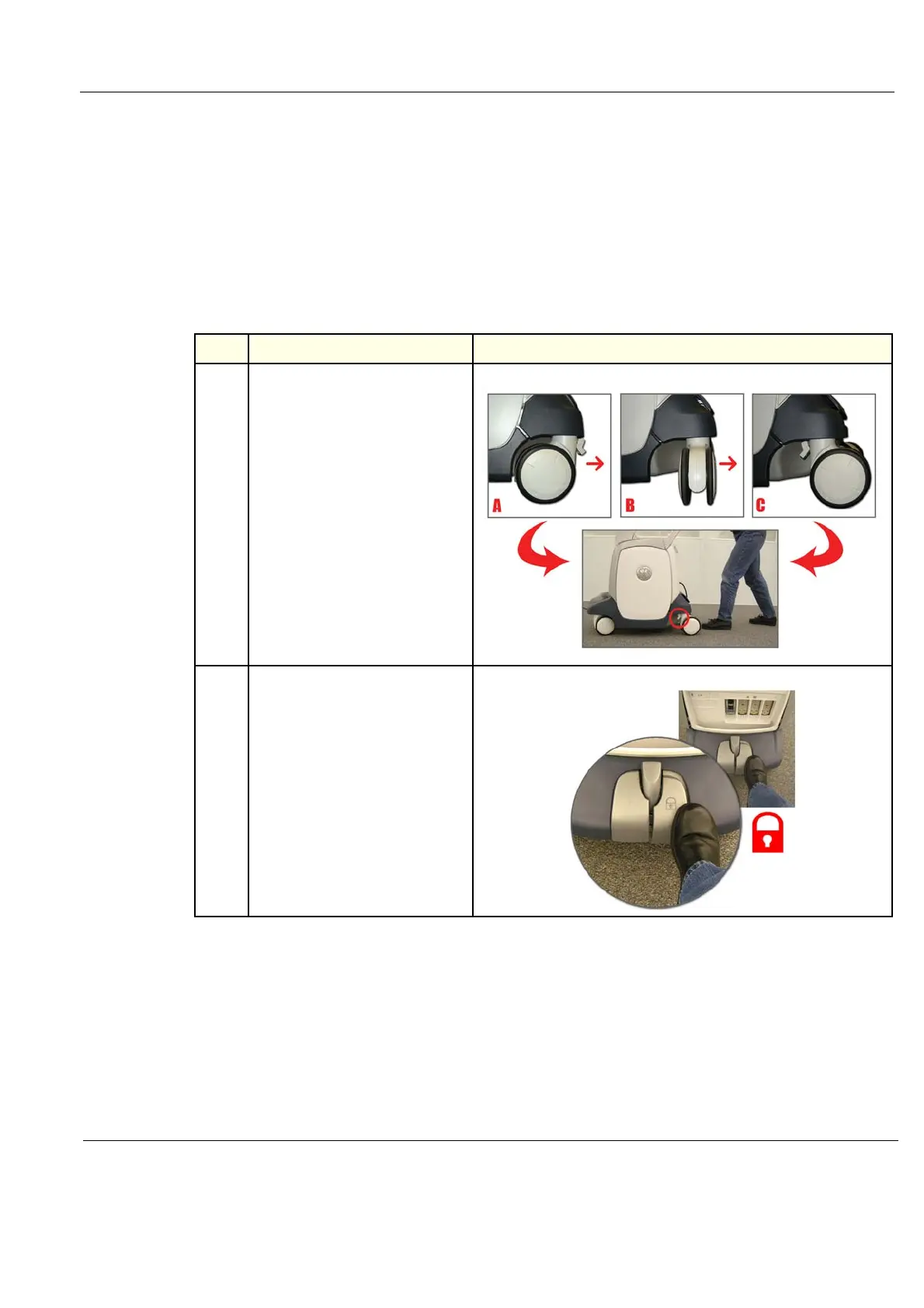

Table 8-10 Removing and cleaning filters, sheet 1 of 3
Steps Corresponding Graphic
1.
Power down the VIVID E9 / VIVID E7
before removing the filters to prevent
any loose or knocked-off debris from
entering the Fan Tray.
Walk the VIVID E9 / VIVID E7 forward
until the caster is in position to access
the filter handle. The right side, rear
caster must be in-line and away from the
VIVID E9 / VIVID E7.
2.
Lock the Brakes.
