IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
8 - 182 Section 8-8 - Main Console parts replacement
8-8-4 Bottom “nylon strip” Air Filter replacement
8-8-4-1 Overview
The bottom air filter is held in place with magnets. A tab made of Nylon (Nylon Strip) extends from the
air filter. The tab can be accessed on the right side of the VIVID E9 / VIVID E7.
8-8-4-2 Preparations
1.) Power down the VIVID E9 / VIVID E7.
2.) Disconnect the Mains Power Cable from the wall outlet.
3.) Disconnect all probes and external I/O cabling.
4.) Kneeling down on the right side of the VIVID E9 / VIVID E7 enables you to access the air filter tab.
5.) Locate the tab extending from the air filter on the bottom of the VIVID E9 / VIVID E7.

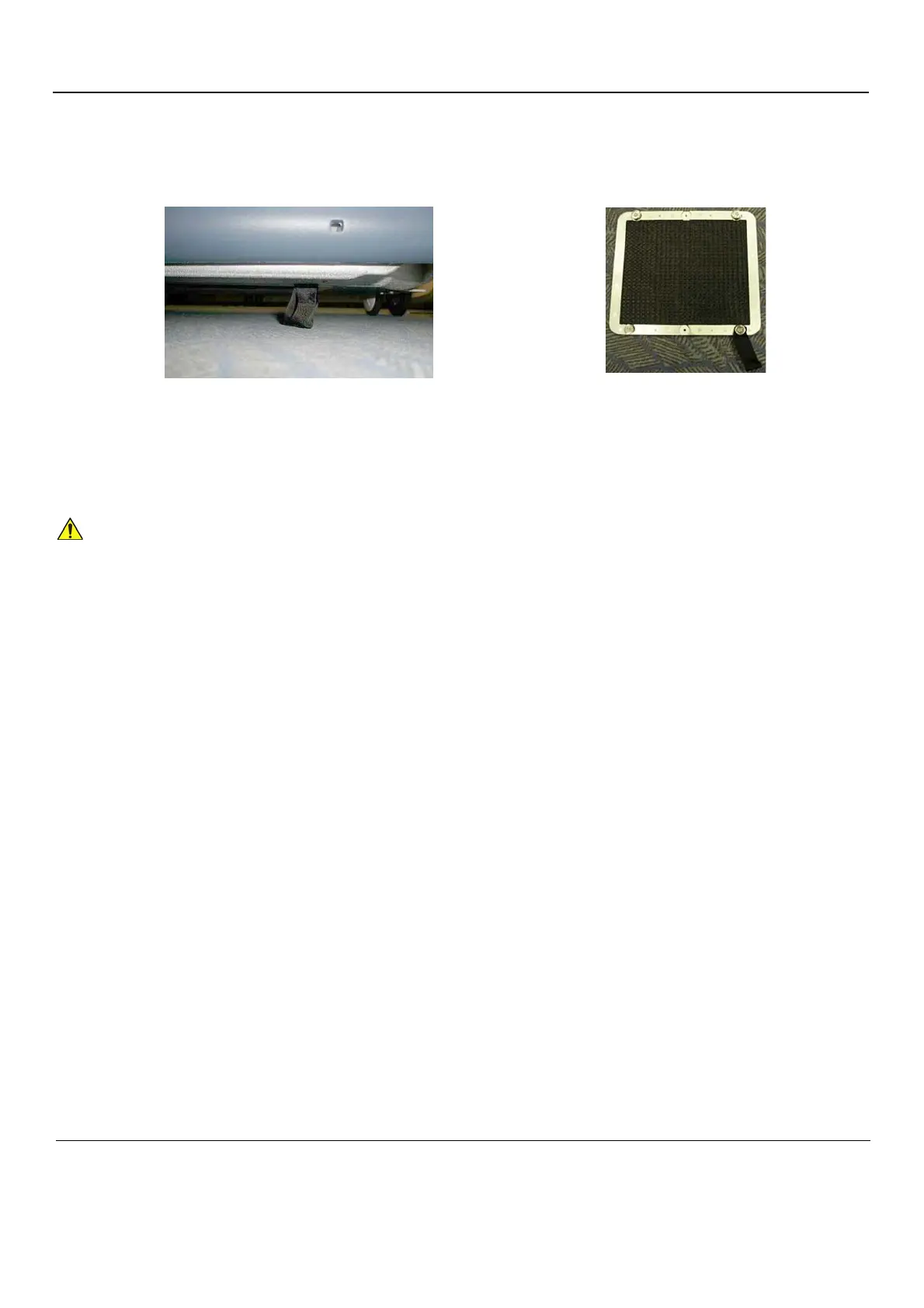

Figure 8-160 Bottom “nylon strip” Air Filter
CAUTION
Lock the VIVID E9 / VIVID E7’s wheels prior to removing/cleaning the air filter. This prevents the
VIVID E9 / VIVID E7 from moving unexpectedly.
