GE
D
IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
9 - 14 Section 9-7 - Top Console parts
9-7-2 Operator Panel (OP) parts
9-7-2-1 OP-6 parts

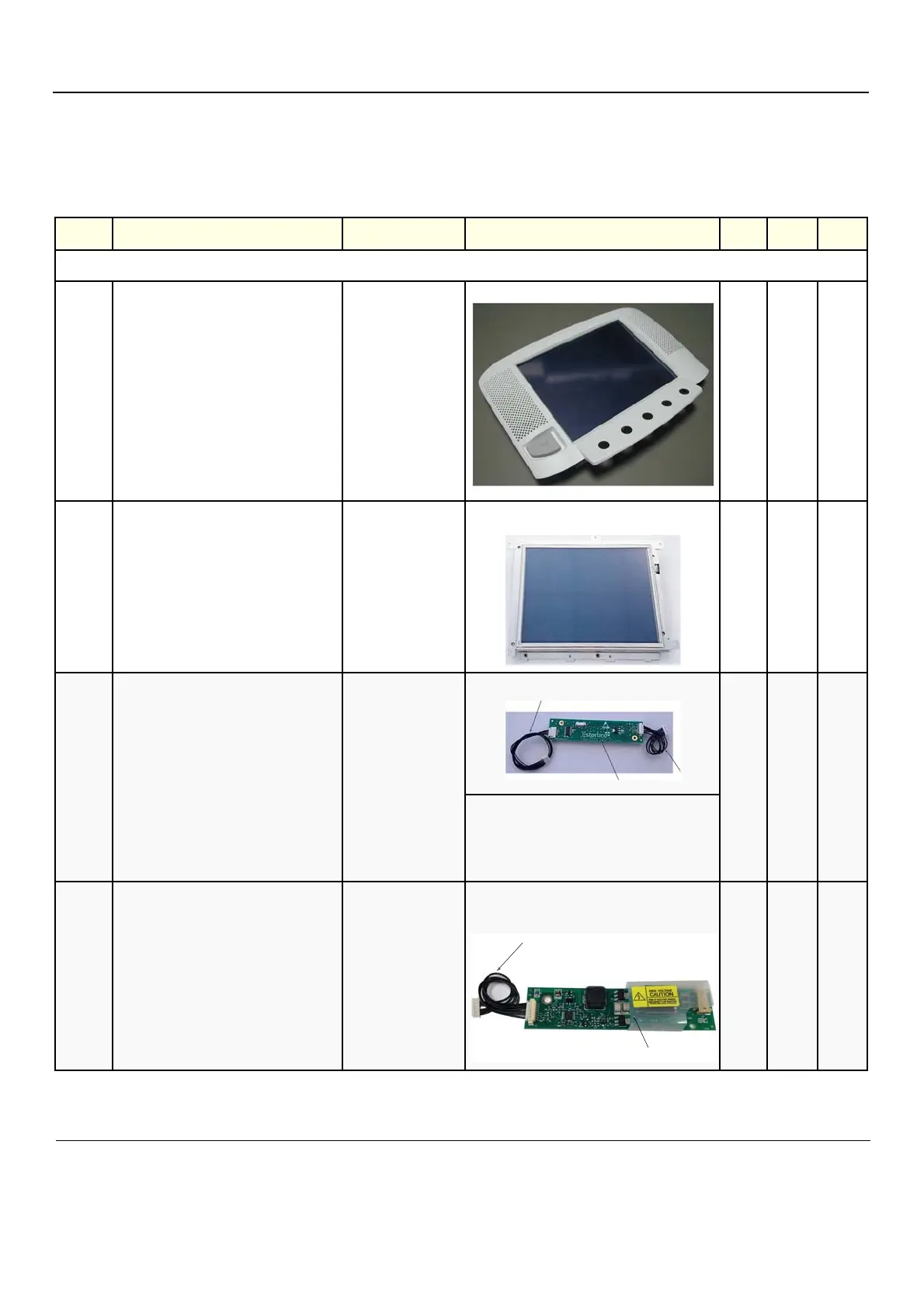

Table 9-10 OP-6 parts sheet 1 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
OPERATOR PANEL UPPER 6
1.
VIVID E9 OPERATOR PANEL UPPER
6, LED BACKLIGHT
GB200092 1NY
2.
FRAME W. LED BACKLIGHT LCD
AND TOUCHSCREEN - spare part
5207000-65
Video Interface cable is included
1NY
3.
LED BACKLIGHT DRIVER
WITH CABLES
5207000-64 1 N Y
1. - LED Backlight Driver Board
2. - Interface Cable to LCD Display
3. - Interface Cable to Main Board
The two interface cables are included.
4.
HV INVERTER WITH CABLE - ERG
VERSION
5207000-6
Supporting CMO display (OP Upper
GA200865, GB200091 and GB200092).
1 N Y
INTERFACE CABLE
INCLUDED
5.
6.
ERG BRAND
HV INVERTER
To Next Page
