IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 9 - Renewal parts 9 - 17
3.
OP Lower Bezel 2.
GB200024
GOING
OBSOLETE
With enlarged hole in bezel for new
trackball.
For OP-5 ONLY:
Use GB200152 as replacement when
GB200024 becomes unawailable
1NY
4.
Laser Trackball Assembly. GB200217
Replaces Replaces GA200742 and
GB200017
For OP-5 and OP-6:
On this trackball, the top locking plate
including the rubber dust filtering ring can
be detached from outer side of the
Operator Panel for cleaning purposes (do
not need to get inside the panel).
The new Laser Trackball Assembly can be
used with old versions of
Operator Panel Upper.
1NY
Table 9-11 OP-5 parts (cont’d) sheet 2 of 2

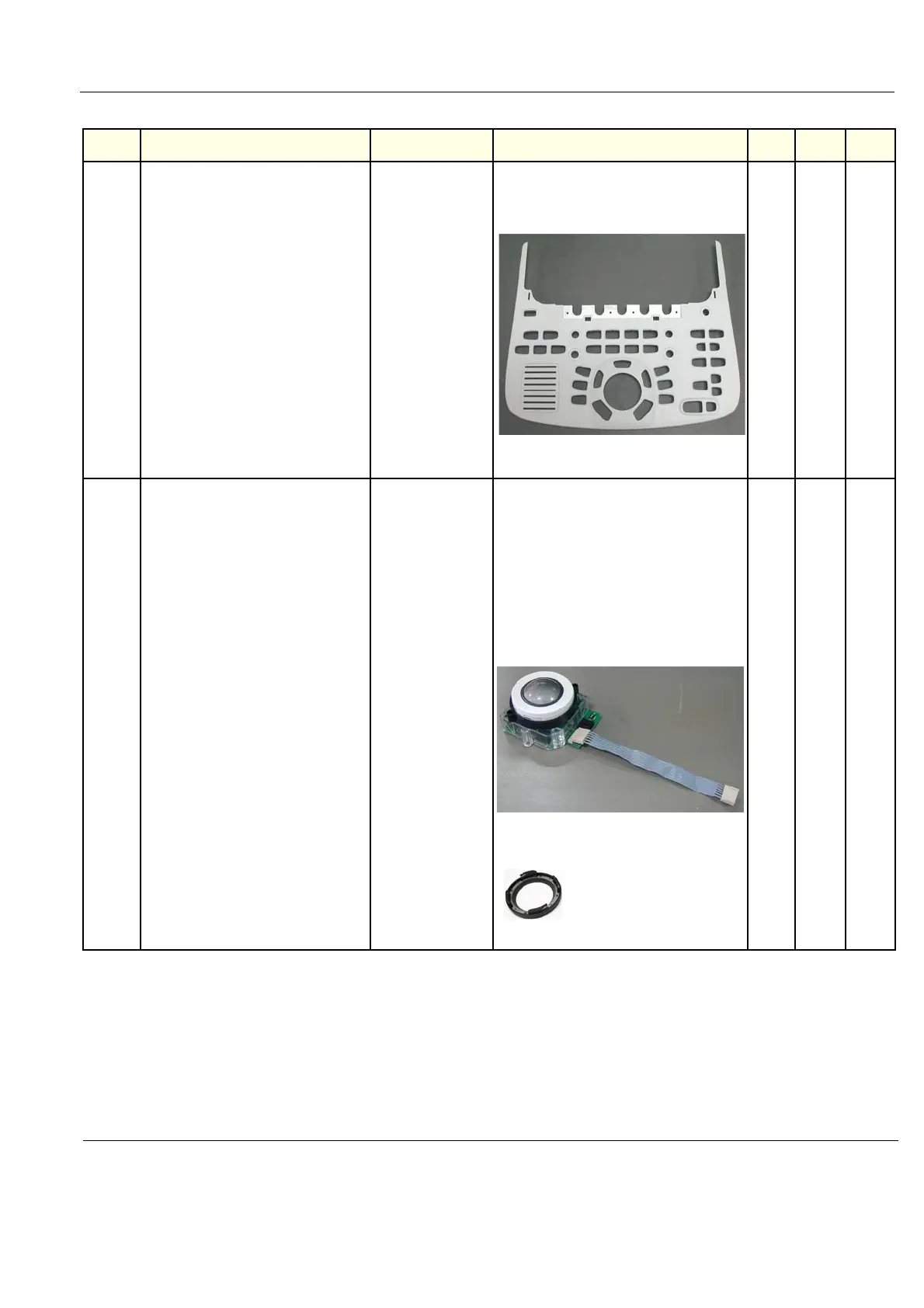

ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
Dust Gasket, Rubber Type, for older Lower
Panels with small trackball opening in the
bezel.
(To be used together with the
complete Trackball Assembly,
by just replacing the Dust
Gasket.)
