IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 9 - Renewal parts 9 - 67
9-17-6-1 BEP6 cables (cont’d)

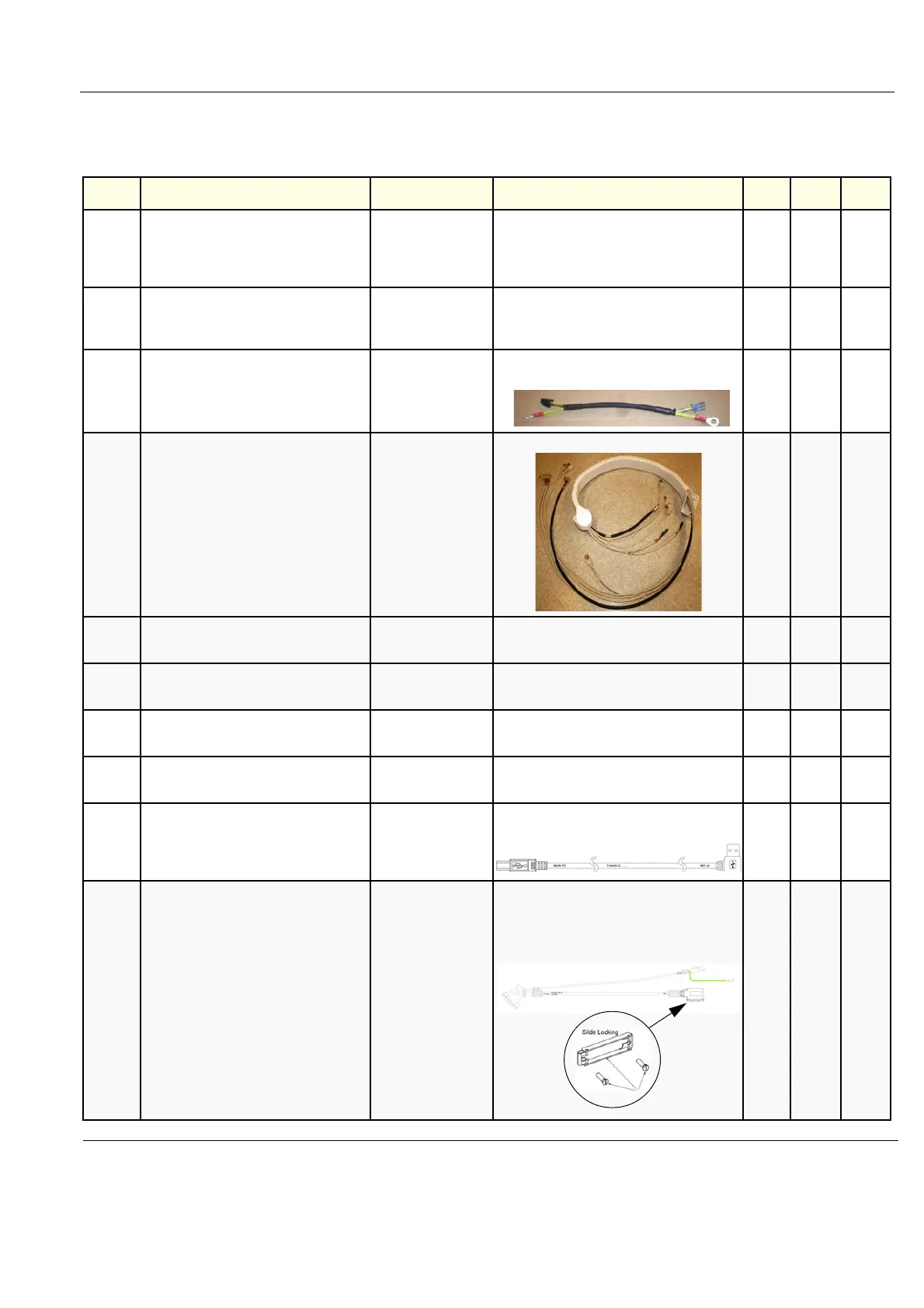

Table 9-40 BEP6 External Cables and Harnesses sheet 1 of 3
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
A
MAIN POWER CORD
5148381-X
X DEPENDS ON COUNTRY.
For illustrations, see: Section 9-16 "Mains
Power Cables - VIVID E9 / VIVID E7" on
page 9-55.
1YY
B
FROG BRAKE CONTROL
GA200335
CABLE B
(XYZ CONTROLLER - INNER FROG
BRAKES)
2NY
C
FROG BRAKE ARM
GA200334
CABLE C (INNER BRAKE - OUTER
BRAKE)
2NY
D
MAIN CABLE ASSEMBLY
5272357 1 N Y
D1 MAIN CABLE – POWER/AUDIO
Part of:
5272357 - MAIN CABLE ASSEMBLY
1 N N
D2 MAIN CABLE – VIDEO
Part of:
5272357 - MAIN CABLE ASSEMBLY
1 N N
D3
MAIN CABLE – XYZ SWITCH
SIGNALS
Part of:
5272357 - MAIN CABLE ASSEMBLY
1NN
D4 MAIN CABLE – USB
Part of:
5272357 - MAIN CABLE ASSEMBLY
2NN
H
CABLE - USB, BEP6 TO MAIN
SUPPLY, FREY
5194492-8
USB CABLE - MAIN POWER SUPPLY
1NY
I
Cable Power-Controller-BEP for
Vivid E9
GA200715
POWER CABLE – BEP 48V
CABLE I (J1 - MAIN POWER SUPPLY -
XYZ CONTROLLER)
1 N Y
