Functional checks
Vivid E80/E90/E95 – Service Manual 4-9
GC091052 Rev. 3
Functional checks
2D Mode (B mode) checks
Introduction
The 2D Mode is the Ultrasound system’s default mode.
Preparations
1. Connect one of the probes.
2. Turn ON the Vivid E80/E90/E95.
The 2D Mode window is displayed (default mode).

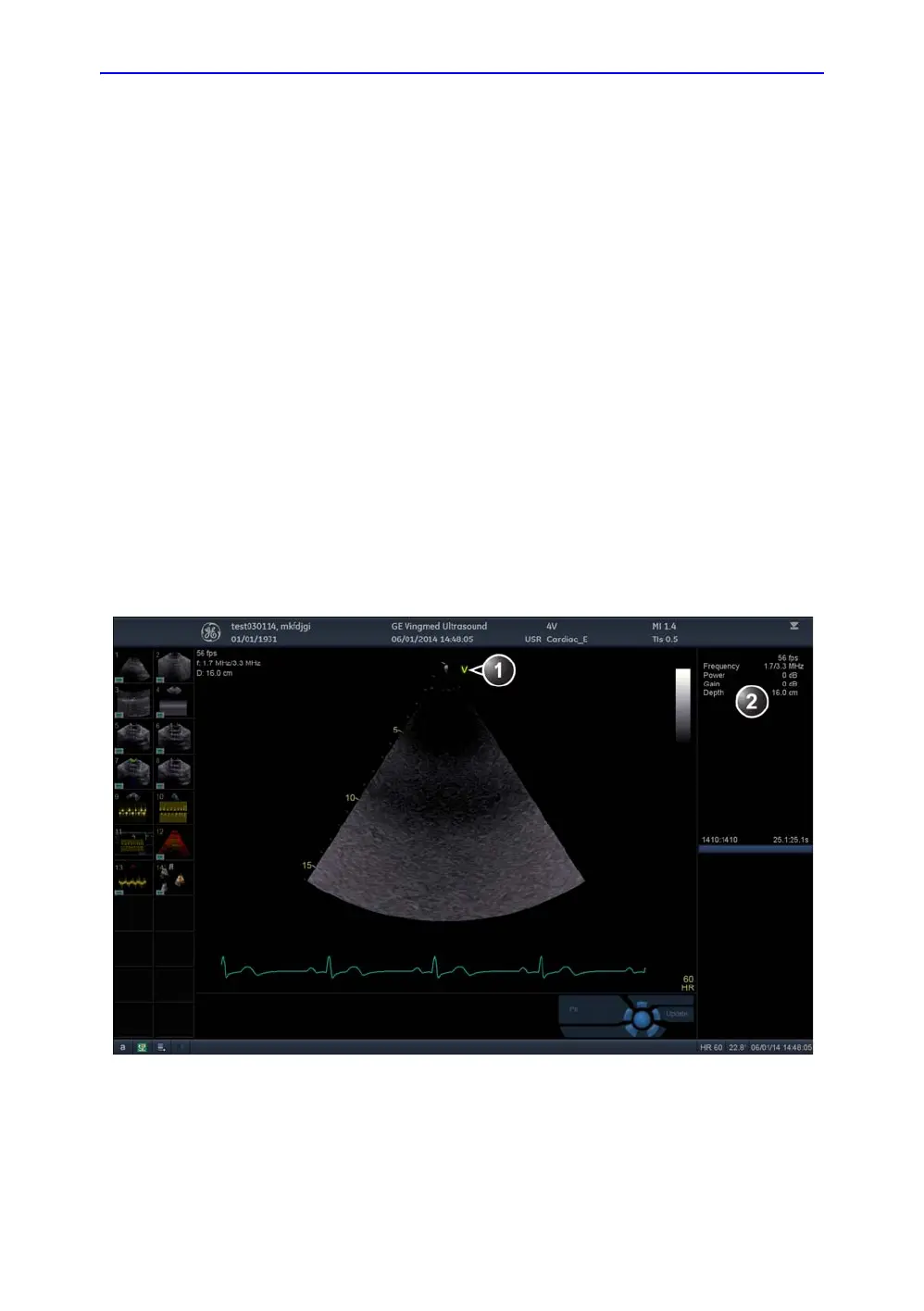

Figure 4-5. The 2D screen (cardiac)
1. Probe orientation marker
2. Parameter window
