Diagnostics/Troubleshooting
7-10 Vivid E80/E90/E95 – Service Manual
GC091052
Rev. 3
Motor controller test
Introduction
This test program tests the XYZ Motor Controller. It also
includes a software recovery procedure for Lock Release.
Test the motor controller
Follow this procedure to start the motor controller test:
1. Power up the Ultrasound system.
2. After initialization is complete, press CONFIG… on the
Utility tab on the Touch Panel.
3. Log on as ADM.
4. Select System from the bottom of the menu that appears on
the monitor.
5. Select Test.

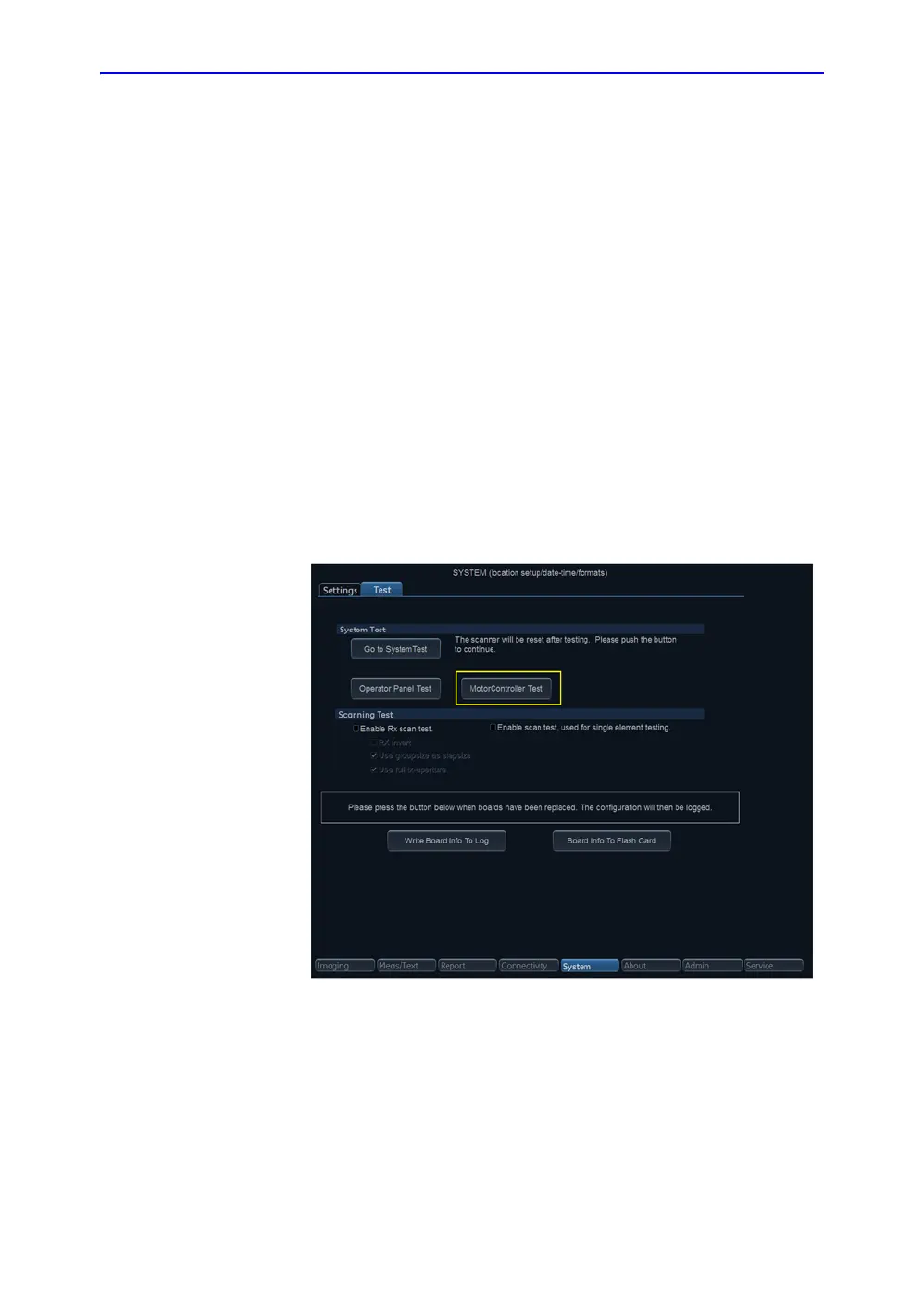

Figure 7-2. Test screen
