Top Console with LCD monitor and Operating Panel
Vivid E80/E90/E95 – Service Manual 5-15
GC091052 Rev. 3
Top Console’s location in the Vivid E80/E90/E95
The Top Console is located on the top of the Vivid E80/E90/E95,
and includes the Main LCD monitor, the Monitor Arm, the
Operating Panel with the Touch Screen, speakers and an
alphanumeric keyboard as an drawer below the Operating
Panel.

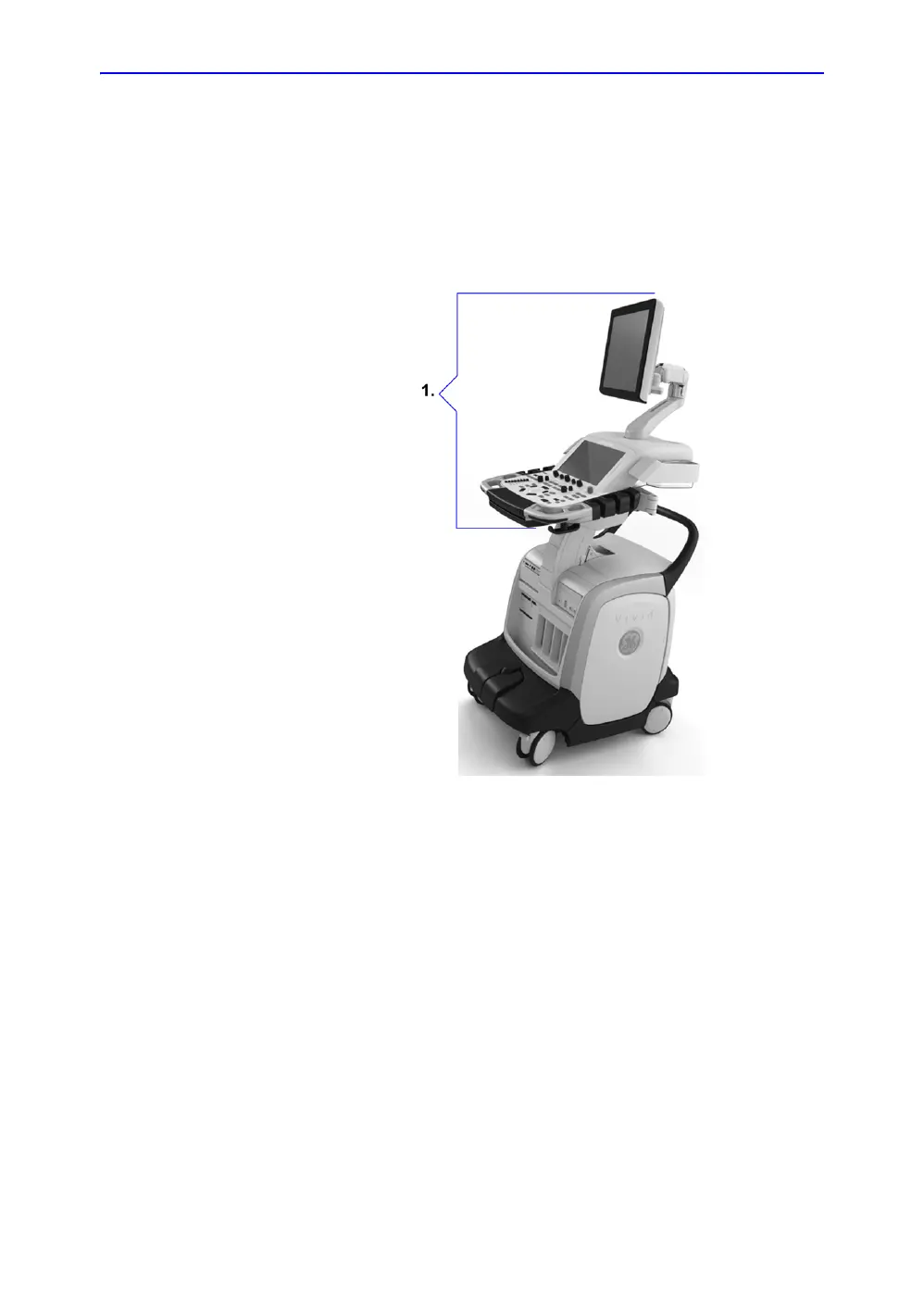

Figure 5-8. Top Console’s location (1.)
