Top Console with LCD monitor and Operating Panel
Vivid E80/E90/E95 – Service Manual 5-17
GC091052 Rev. 3
Description of the Locking Mechanism

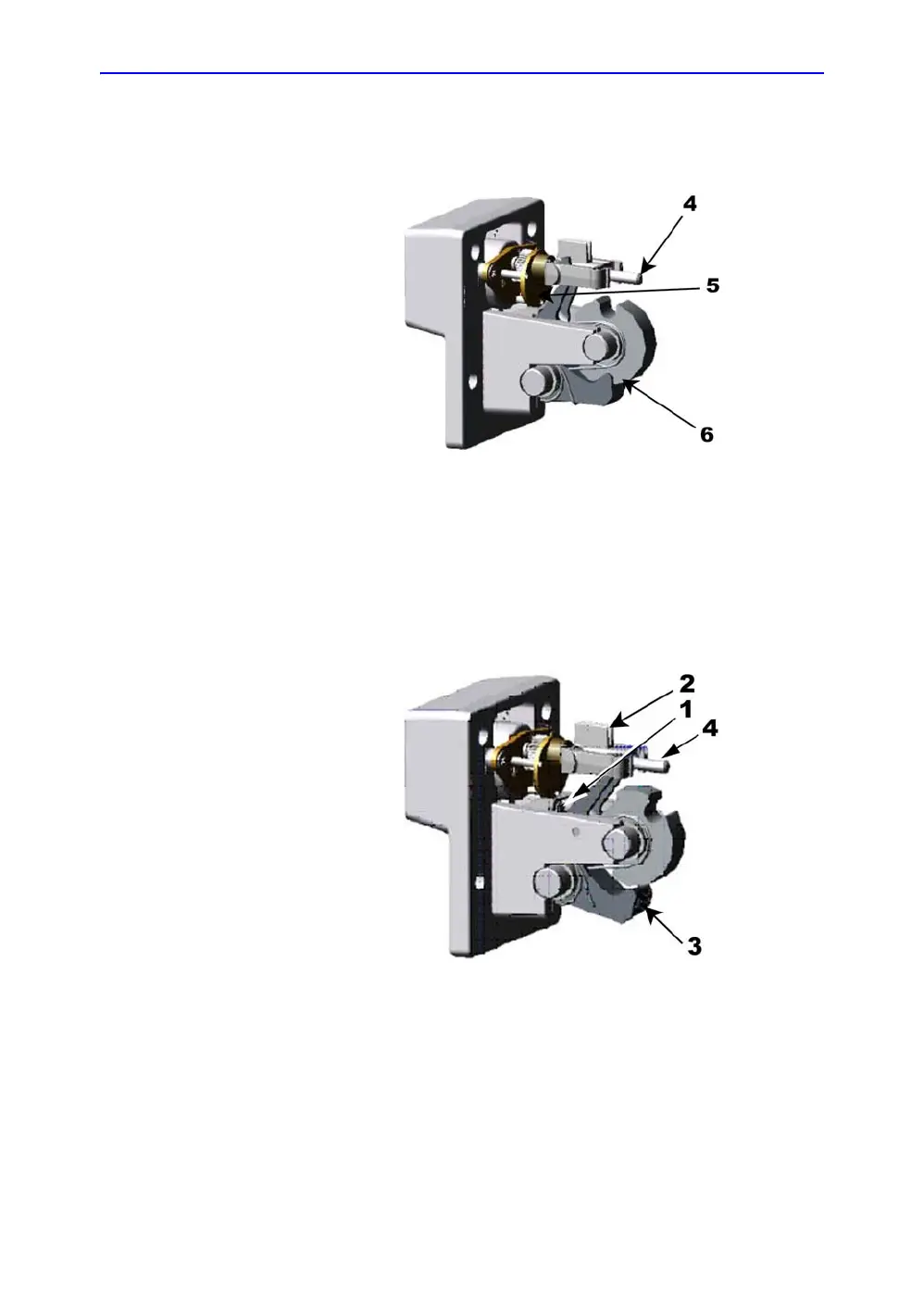

The figure below illustrates the Park Lock when the Operating
Panel is in the locked position.
Figure 5-9. Park Lock in locked position
When the Operating Panel releases, the Threaded Lead Screw
(4) rotates counter clockwise, moving the Lock Nut outwards
and thus lowering the Park Lock Lever downwards and the Park
Lock mechanism is released.
The Threaded Lead Screw (4) then rotates clockwise and
returns to its original position. This is shown in the Figure below.
Figure 5-10. Unlocked position
When the Operating Panel moves into locked position a micro
switch (1) is activated.
