Components and Functions (Theory)
5-26 Vivid E80/E90/E95 – Service Manual
GC091052
Rev. 3
Transmitter board (GTX)
Location (GTX)

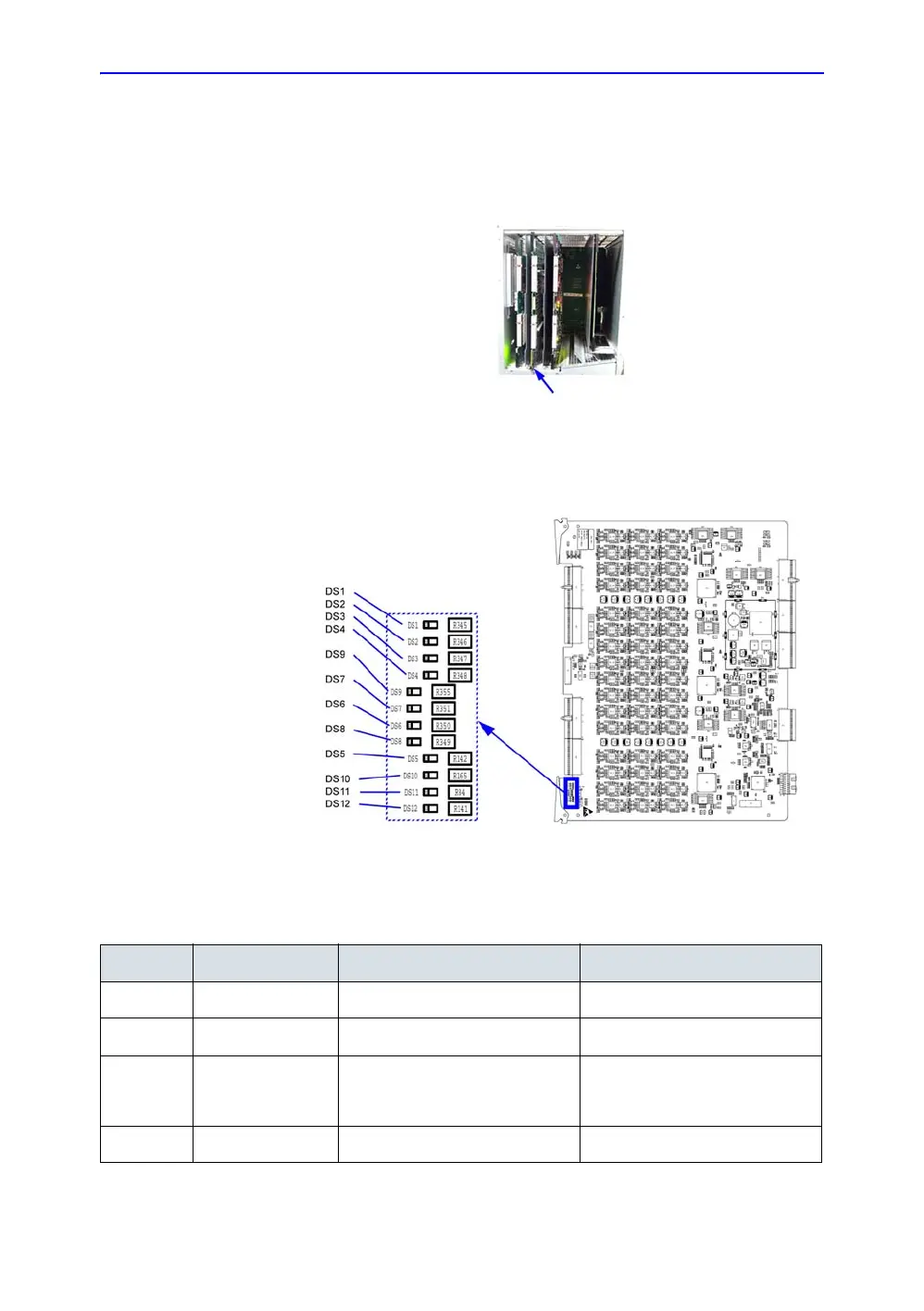

Figure 5-12. GTX TLP-192 board location
LEDs
Figure 5-13. LEDs on GTX-192
Table 5-3: LEDs on the GTX-192 board
LED
Color Description Comments
DS1
Red DAVID_RESET
DS2
Green DCM_LOCKED
DS3
Green VSS, VDD_DR1 & VLL
GOOD
Start up: Lit
Normal Operation: Lit
DS4
Green TX_TRIGGER Lit during scanning
