3 | Product description
• Semi-hermetic six-cylinder reciprocating compressor with suction-gas cooled drive motor.
• The stream of refrigerant sucked out of the evaporator flows over the motor and cools it
intensively. In this way, the motor can be kept at a relatively low temperature level, particularly
under high loads.

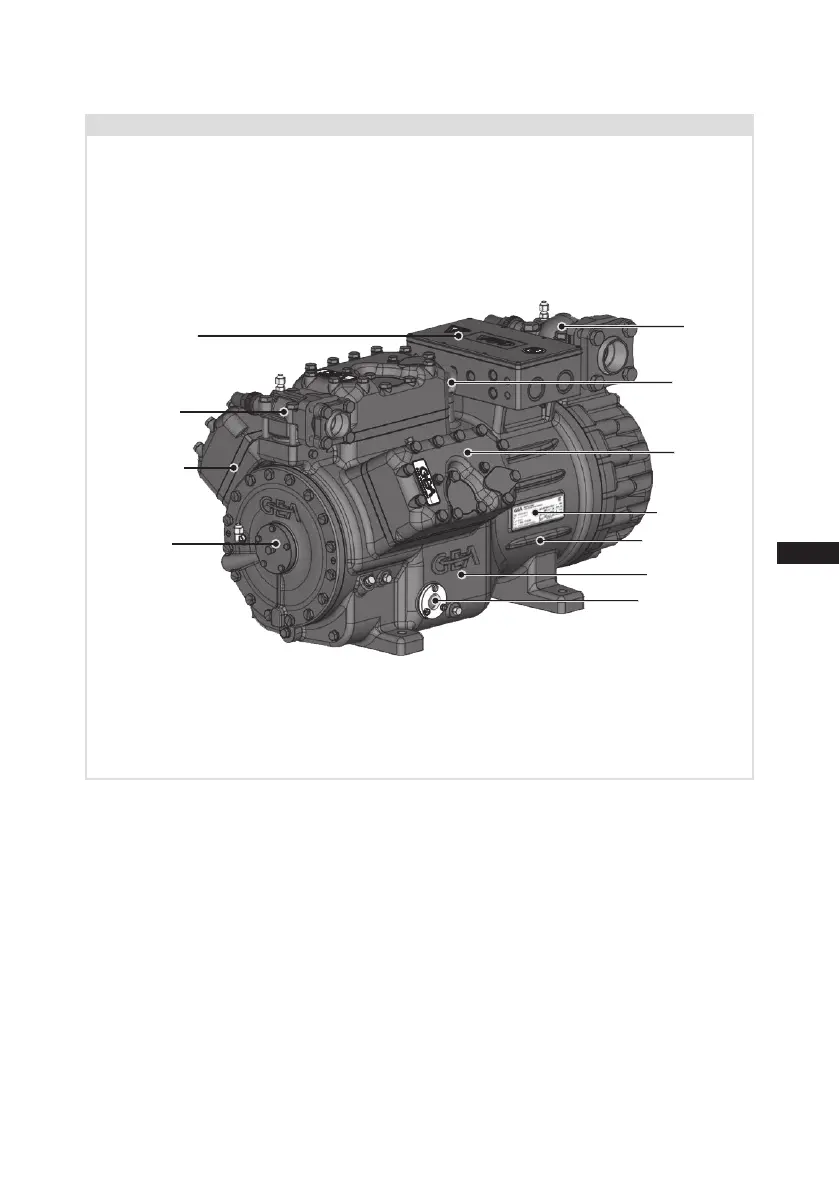

Fig. 1
3.1 Short description
Dimension and connection values can be found in Chapter 12
Cylinder
cover
Terminal box
Suction
shut-off valve
Transport
eyelet
Name plate
Motor section
Drive section
Valve plate
Discharge
shut-off valve
Oil pump
Oil sight glass
