Mechanical Separation / GEA Westfalia Separator

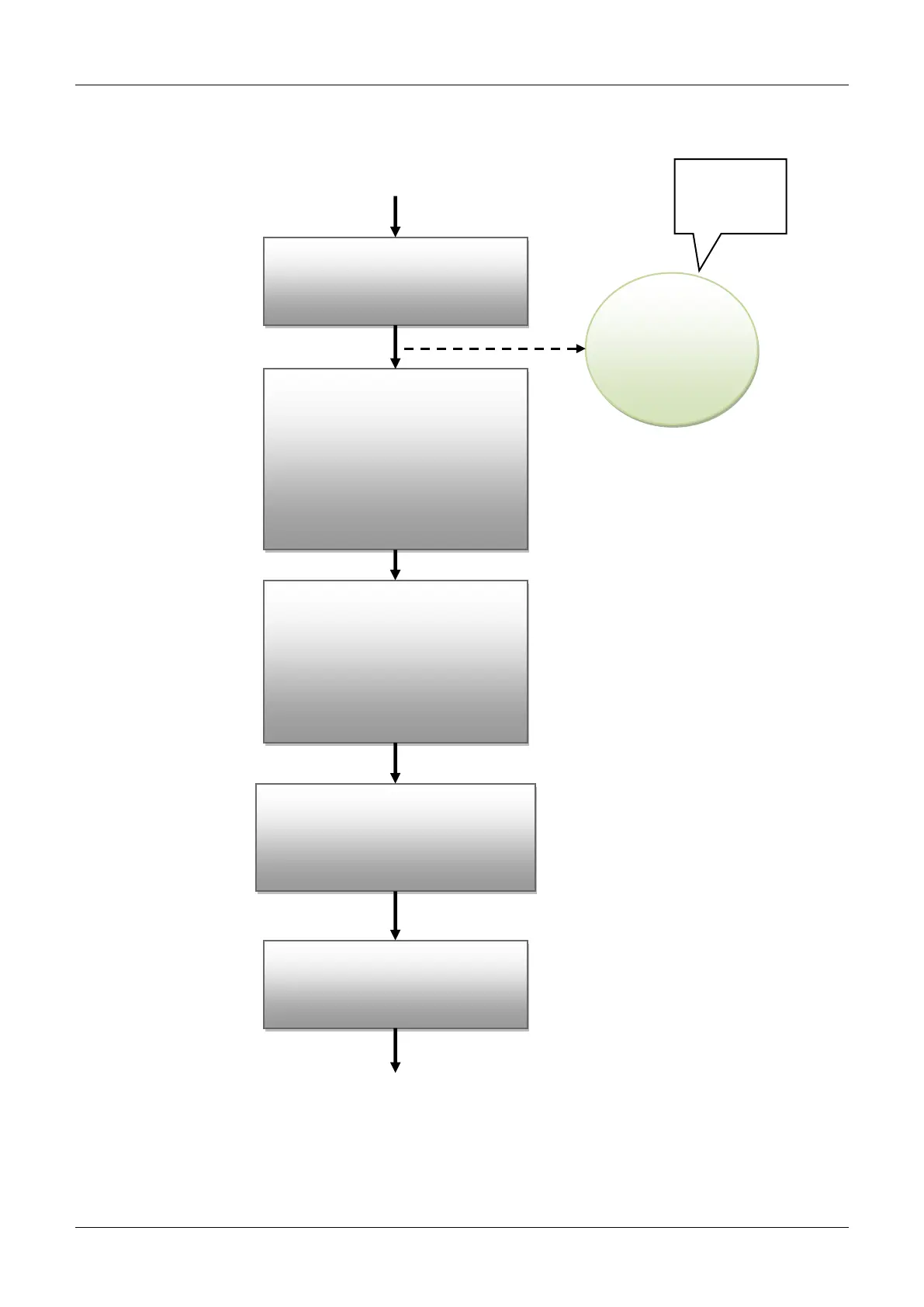

3.3.4 Diagram ...-91-... - Chapter “B”
B
Start of separating sequence
Ejection program
Waiting - Start (T03)
Displacement (T01)
Waiting after displacment (T08)
Total ejection (T04)
Waiting after 1
st
ejection (T12)
Total ejection (T04)
Speed recovery (T05)
Separating program
Closing water pulse (T06)
Filling water (T02)
Waiting after filling (T09)
Separation (T20)
Alarm bridging (T11)
SMS sensor PSL2 not activated
Separation (T20)
Stop of separating sequence
C
Process
monitoring
activated
E
B
