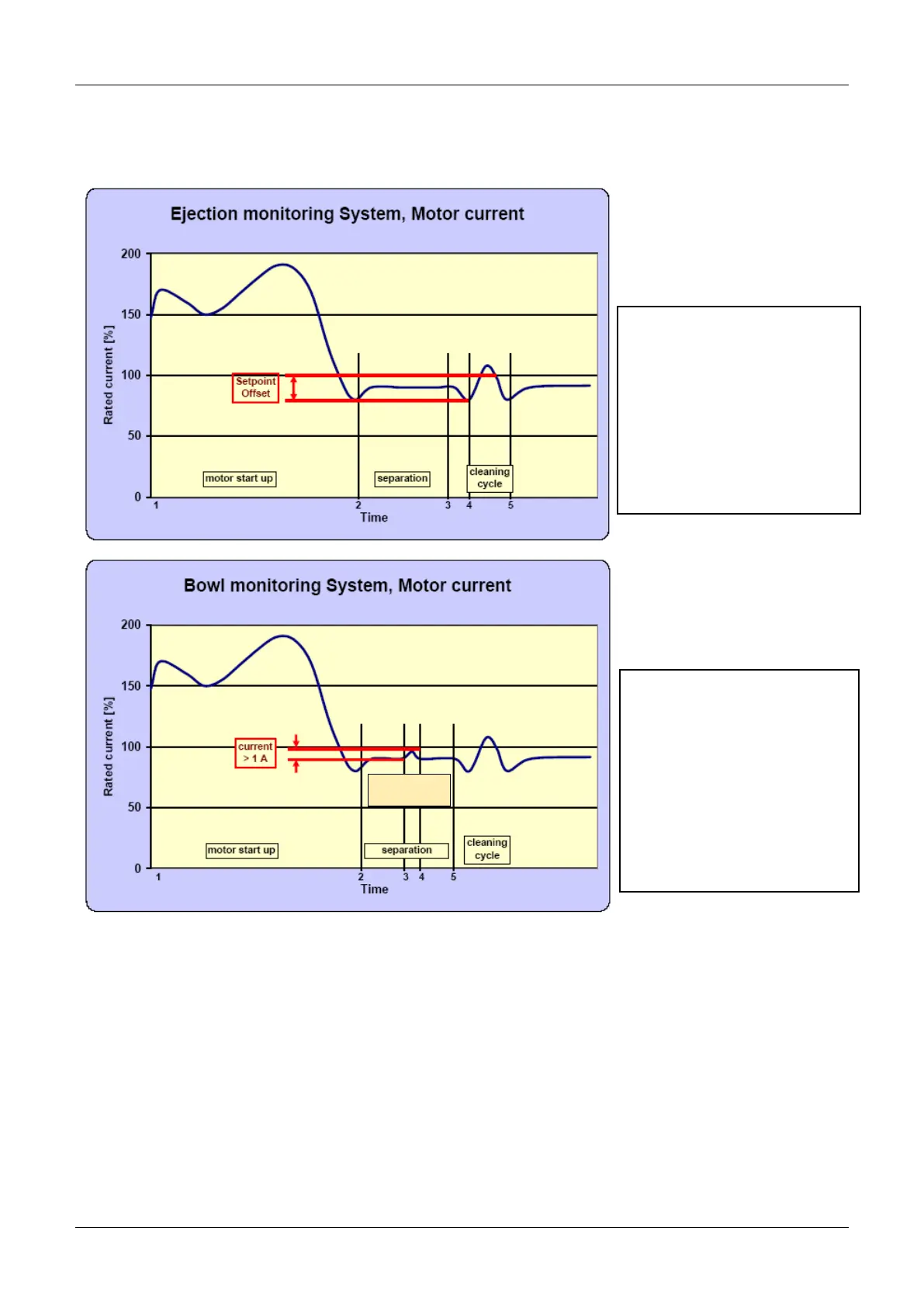

6.1 Graphic representation of an ejection / bowl monitoring - motor current
1 Separator motor start
2 Feed valve V1 open:
Separation
3 Operating-water valve V3 open
for T06: Safety water-
impulse
4 Operating-water valve V3
closed: Separation
5 Feed valve V1
closed: Ejection
1 Separator motor-start
2 Feed valve V1 open:
Separation
3 Feed valve V1 closed
for ejection
4 Operating-water valve V3 open
for T04: Ejection
5 Feed valve V1 open:
Separtion
saftety water
impulse
