3.5.4 Manual Actuator Type H

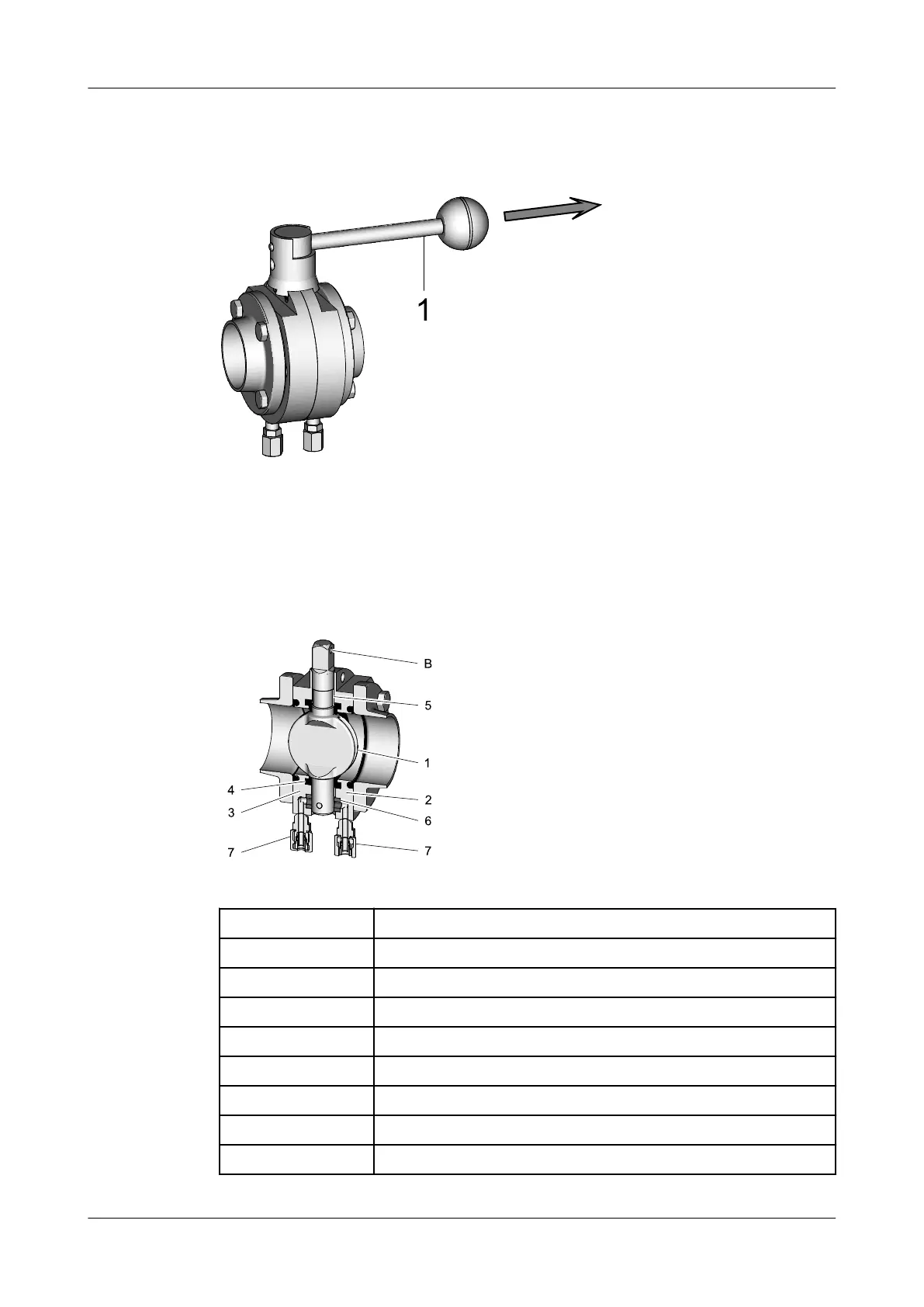

Fig.10
To open or close the mixproof butterfly valve, unlock the hand lever (1) by gently
pulling it out of the locking device and turn it through 90°. When the lever is
released, it locks into place in the holes provided. The limit positions of the
mixproof butterfly valve can be detected by proximity switches.
3.5.5 Butterfly Valve Body without Actuator
Fig.11
No. Designation
1 Valve disk
2 Flange
3 Flange
4 Disk seal
5 Plain bearing
6 Radial seal
7 Leakage connections
8 Hole on the square end
Description
Functional description
