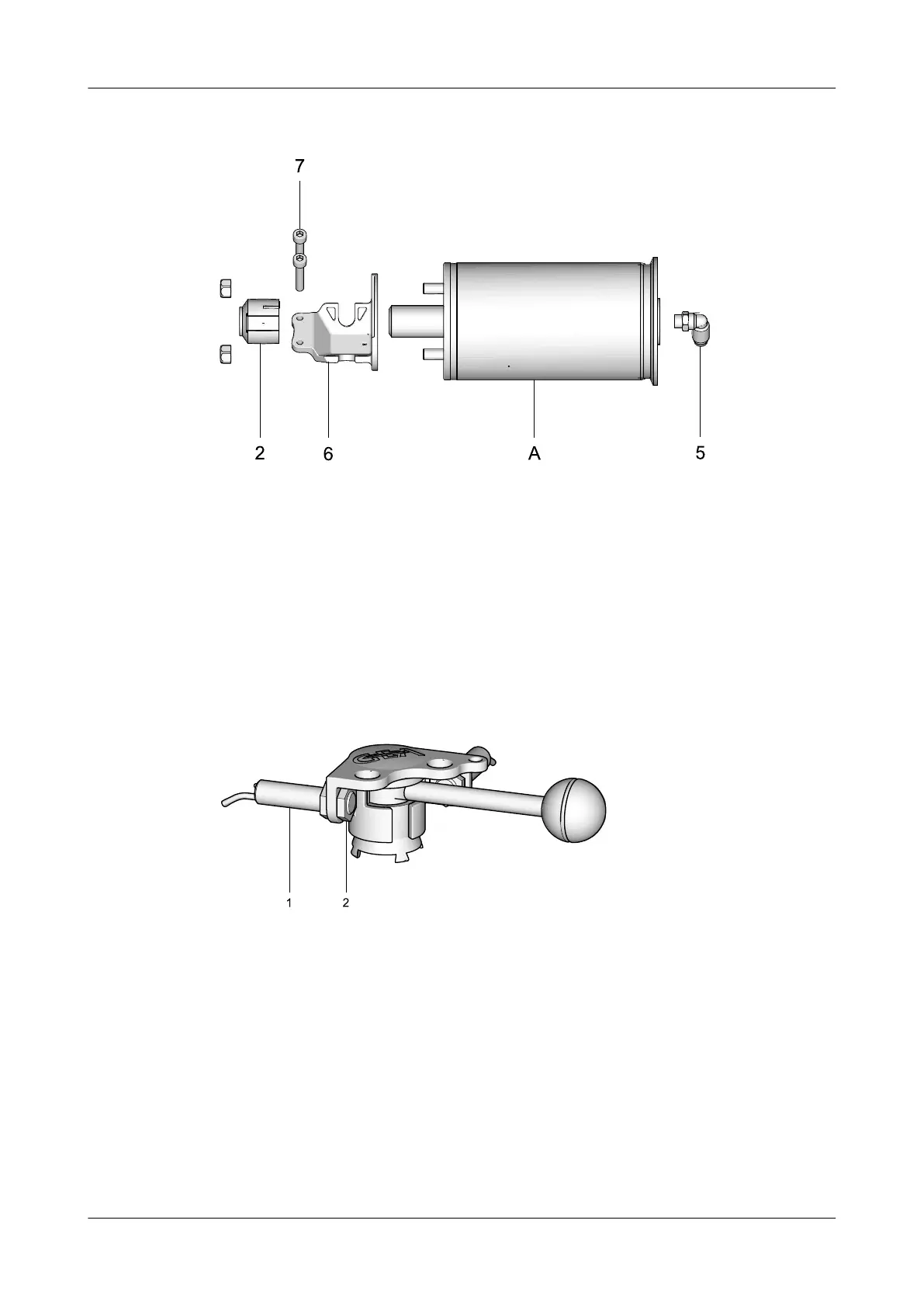

10.5.4.2 Dismantling the Actuator Parts
Fig.17
Carry out the following steps:
1.
Undo the screw connections (7).
2.
Take off the position indicator (2).
3.
Remove the mounting bracket (6).
®
Done.
10.5.5 Disassembling the Manual Actuator
Removing the proximity switch
Fig.18
Carry out the following steps:
1.
Use an a/f 4 hex socket screwdriver to unscrew the locking screw (2) until it is
flush with the bushing.
2.
Take off the hand lever (1).
®
Done.
Maintenance
Disassembling the Valve
430BAL010337EN_7
44 29.07.2021
