Removing the Manual Actuator

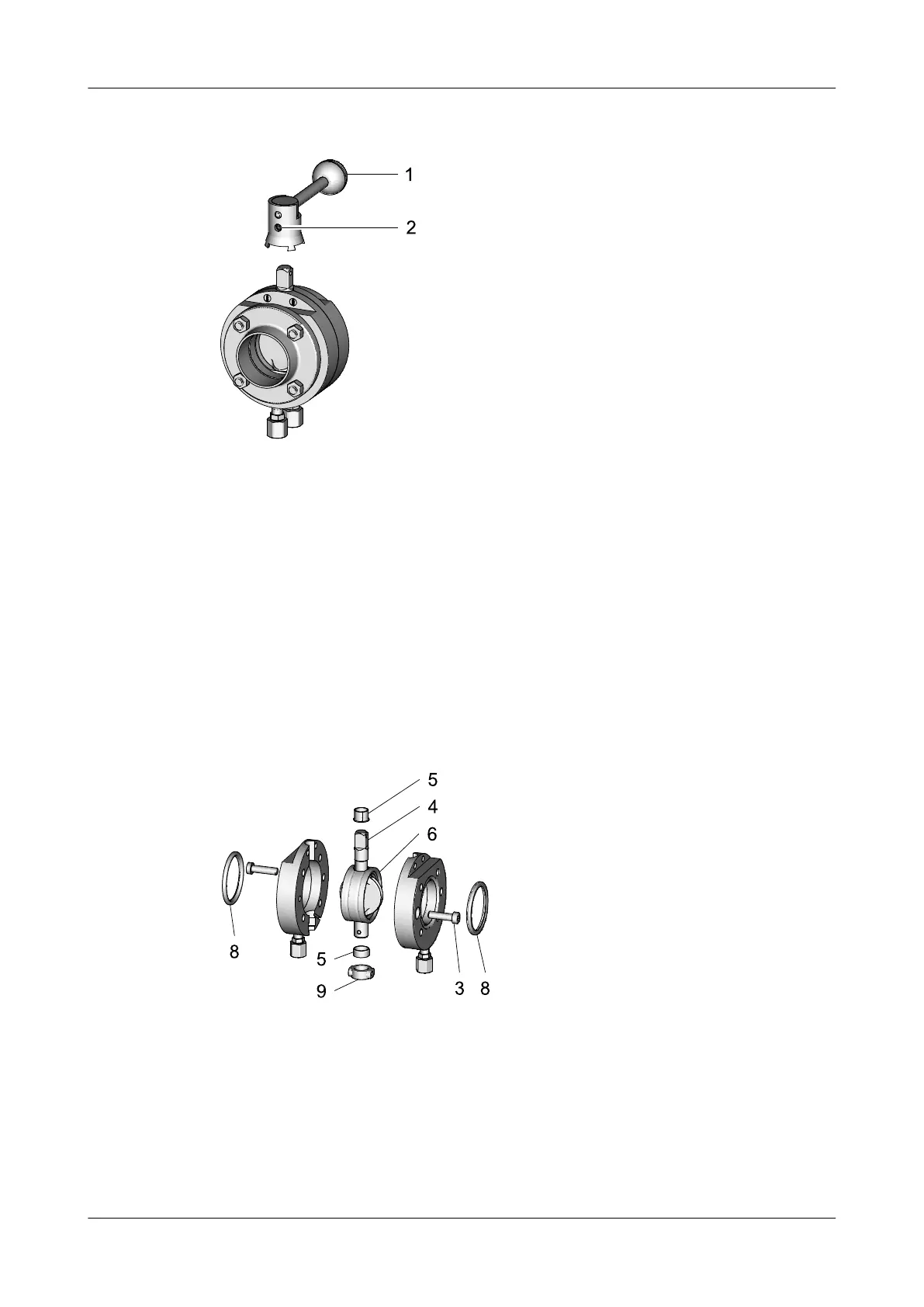

Fig.19
Carry out the following steps:
1.
Use an a/f 4 hex socket screwdriver to unscrew the locking screw (2) until it is
flush with the bushing.
2.
Take off the hand lever (1).
®
Done.
10.5.6 Removing the Valve Disk Seal
Removing the Flanges
Carry out the following steps:
1.
Undo the screw connections (3).
Fig.20
2.
Pull the butterfly valve body apart.
3.
Remove the radial seal (9).
®
The radial seal protects the plain bearing from soiling. The plug protects
the plain bearing from soiling.
4.
Take out the valve disk (4) with the disk seal (6).
Maintenance
Disassembling the Valve
430BAL010337EN_7
29.07.2021 45
