5 Technical data
5.1 Type plate

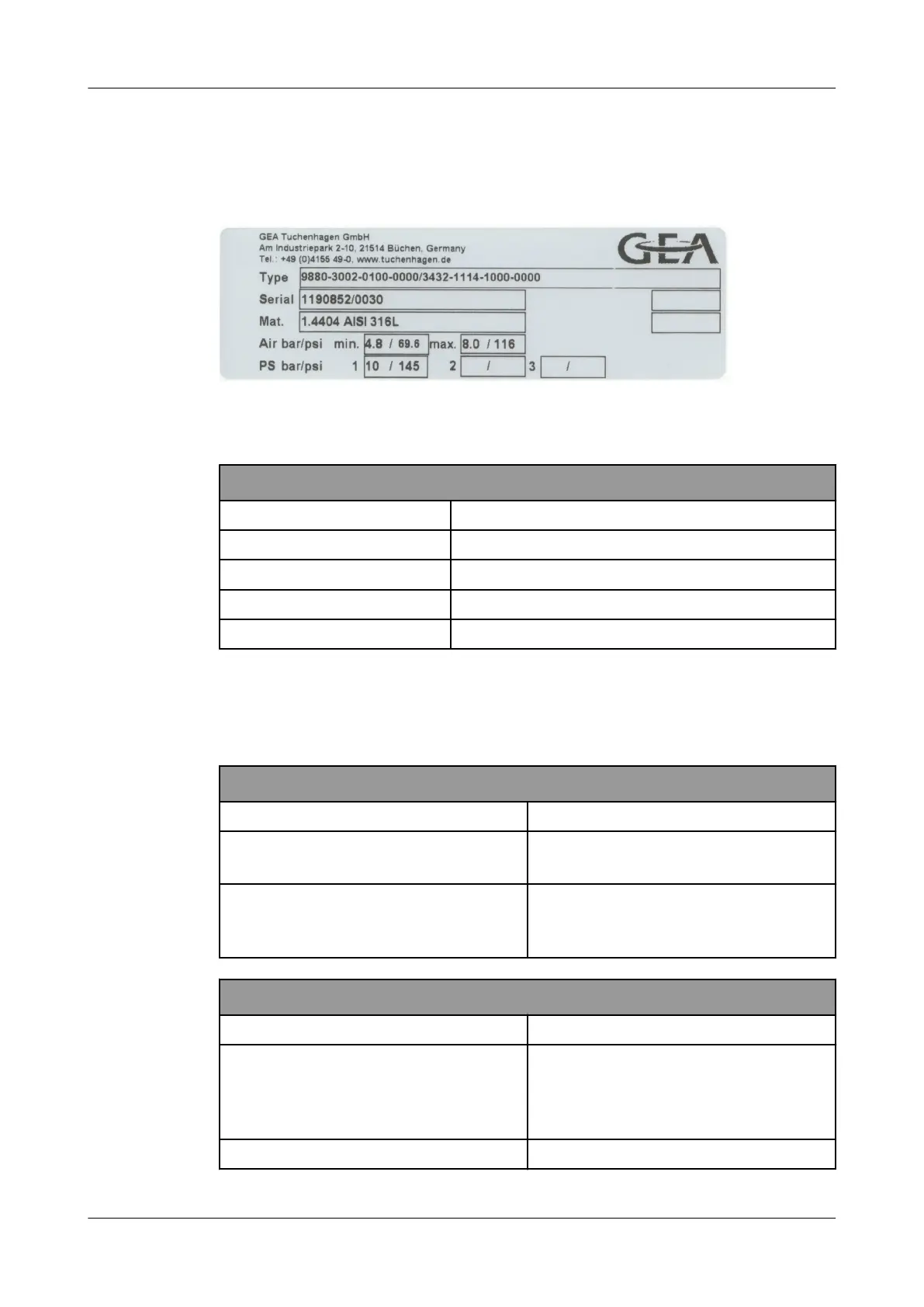

The type plate clearly identifies the valve.
Fig.12
The type plate provides the following key data:
Key data of the leakage butterfly valve
Type Hygienic leakage butterfly valve ECOspace
Serial Serial number
Material 1.4404/AISI 316L
Control air pressure bar/psi min. 4.8/69.6 max. 8.0/116
Product pressure bar/psi 10/ 145
5.2 Technical data
Refer to the following tables for the key technical data of the mixproof butterfly
valve:
Technical data: Mixproof butterfly valve
Designation Description
Size
DN 15 to DN 100
2" to 4" OD
Material of product contact parts
Stainless steel
Check corrosion resistance with
respect to media and detergents.
Technical data: Ambient temperatures
Designation Description
- Valve
0 to 45 °C (32 ... 113 °F), standard
< 0 °C (32 °F): Use control air with a
low dew point. Protect valve stems
against freezing.
- Proximity switch -20 to +80 °C (-4 ... +176 °F)
Technical data
Type plate
430BAL010337EN_7
29.07.2021 23
