Spring-to-close valve (NC) with control head T.VIS
INFO Mounting step: place the valve insert in the housing
Tools
●
Hex key, a/f 3

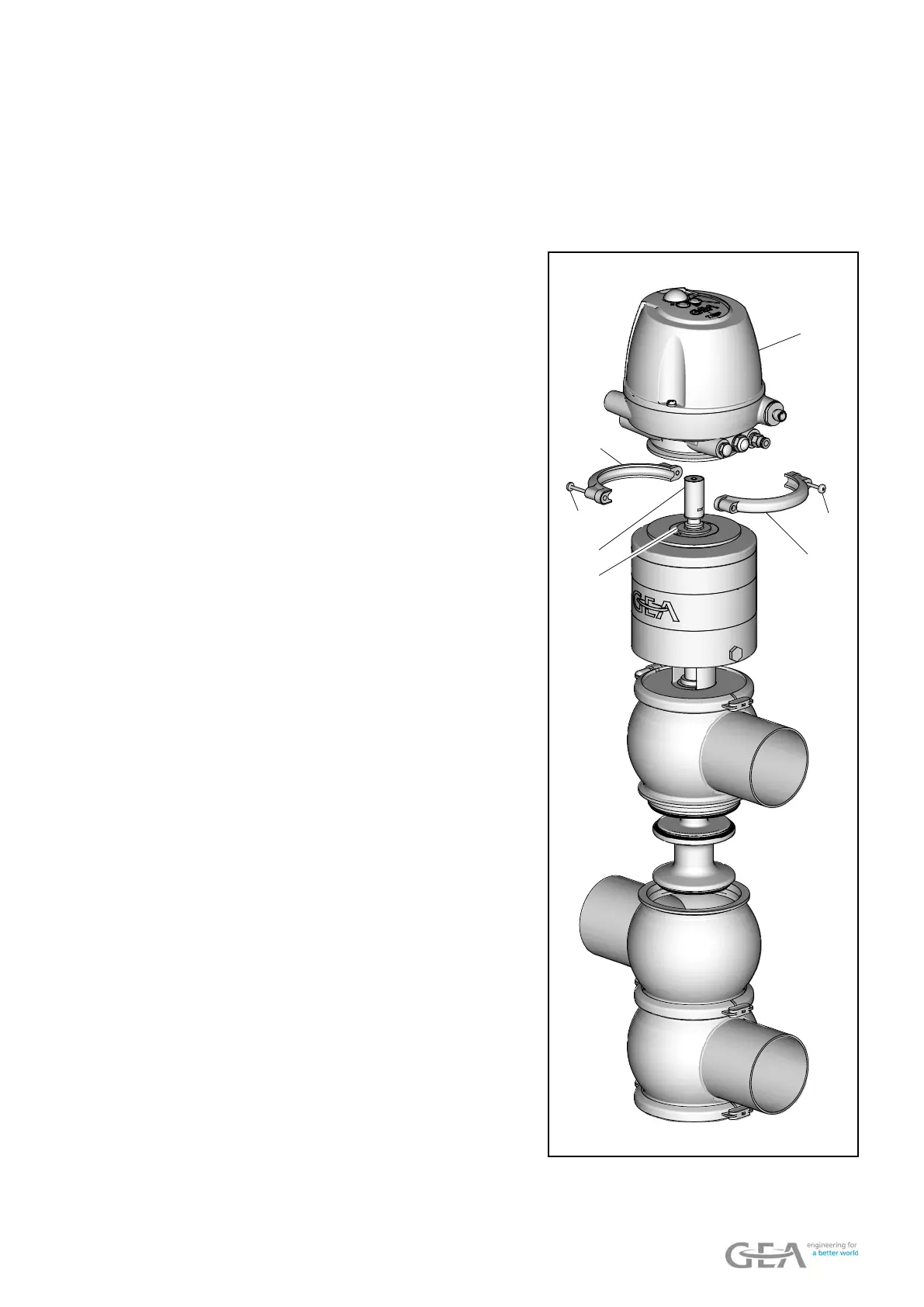

1. Place the valve insert into the housing.
2. Place the control top (B) onto the
switch bar (1) and installation base
from above.
3. Mount the half-rings (B12) on the
control top (B).
®
Ensure that the half-rings are
mounted correctly!
Observe torques, see
9.6.1 Tight-
ening torques
.
9.6 Installing the valve - 85 / 128
