4. Pressurize the actuator - with compressed air, max. 8 bar - by activating the sole-
noid valve Y1 at the manual operation element S.
®
V
alve disk is raised.
Valve insert lowers into the housing.
Þ
The valve insert has been inserted into the housing.

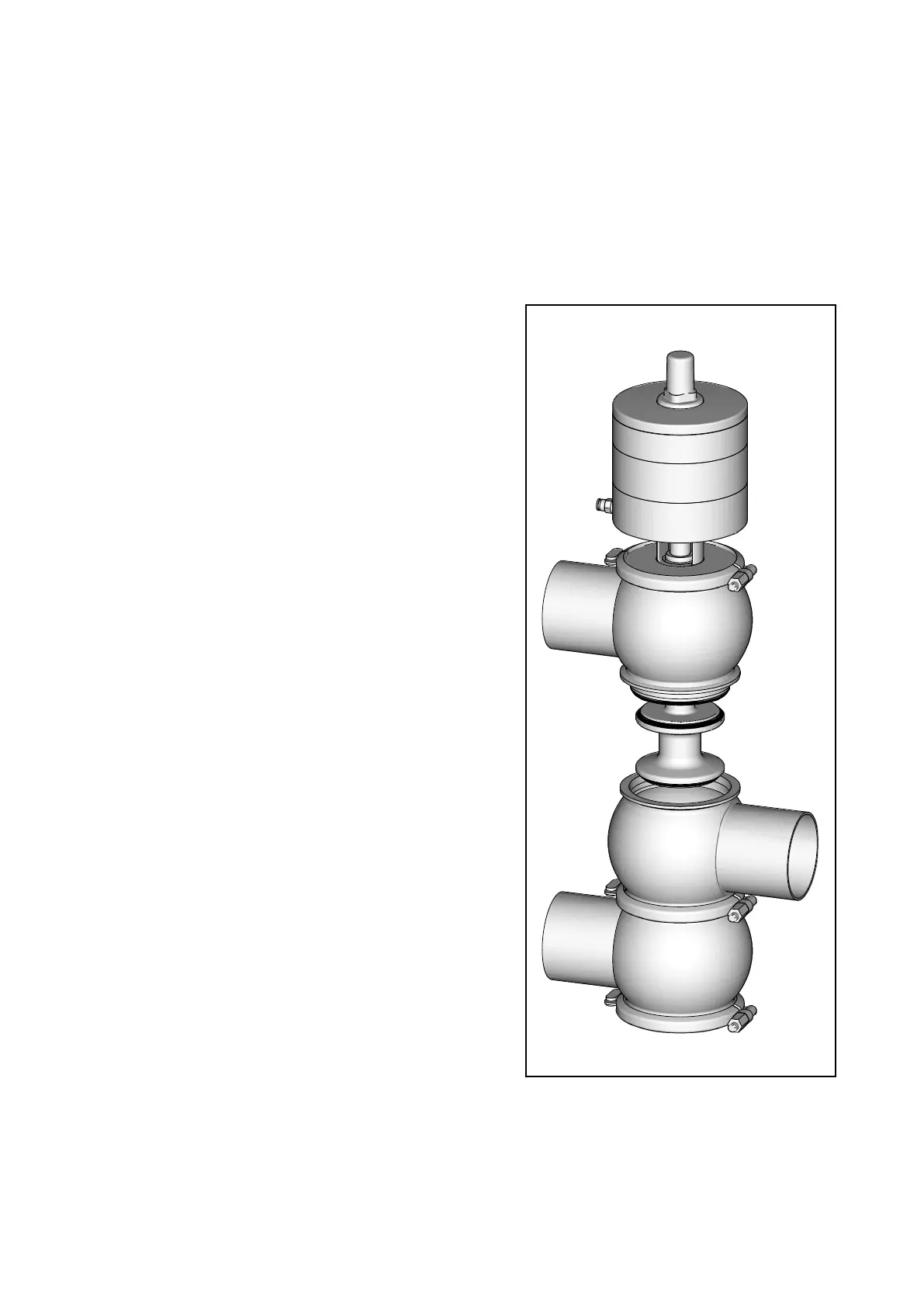

Spring-to-close valve (NC) without control head T.VIS
INFO Mounting step: place the valve insert in the housing
1. Place the valve insert into the hous-
ing.
2. pressurize the actuator - with compressed air, max. 8 bar.
®
V
alve disk is raised.
Valve insert lowers into the housing.
Þ
The valve insert has been inserted into the housing.
