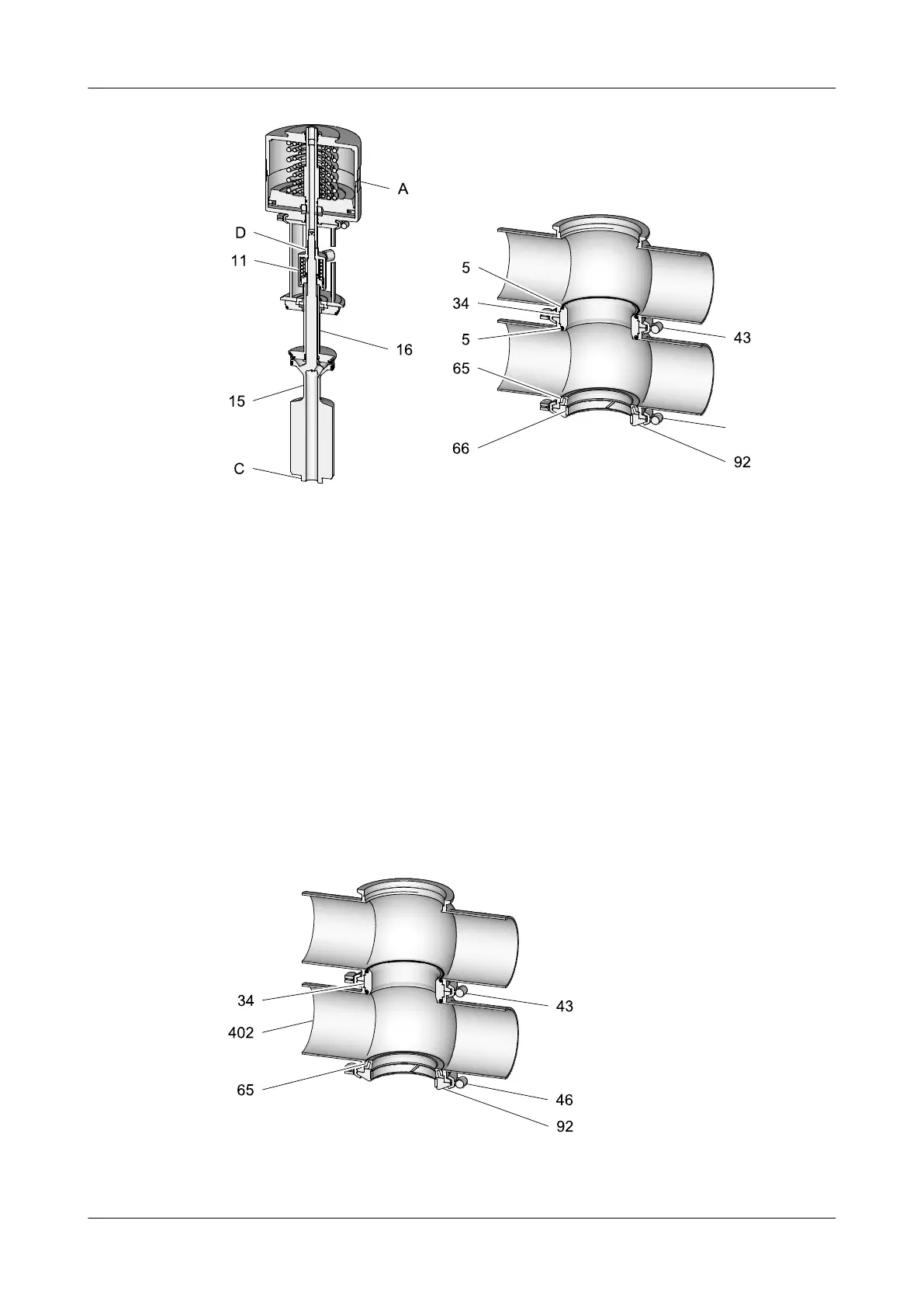

Fig.14
Carry out the following steps:
1.
Grip actuator (A) with belt wrench and separate the valve disk (15) from the
actuator (A) at the width across flats (C).
2.
Remove the clamp connection (43) between the lantern and the actuator (A)
and remove the lantern.
3.
Grip the valve disk (15) at the width across flats (C) and unscrew the cleaning
hood (11) at the width across flats (D).
4.
Remove the bottom clamp connection (46) from the housing and remove the
individual parts (5, 65, 66, 92).
®
The individual components are readily accessible.
®
Done
10.5.5 Disassembly balancer plug
Fig.15
Maintenance
Disassembly
430BAL008386EN_3
07.02.2022 45
