3 Description
3.1 Design

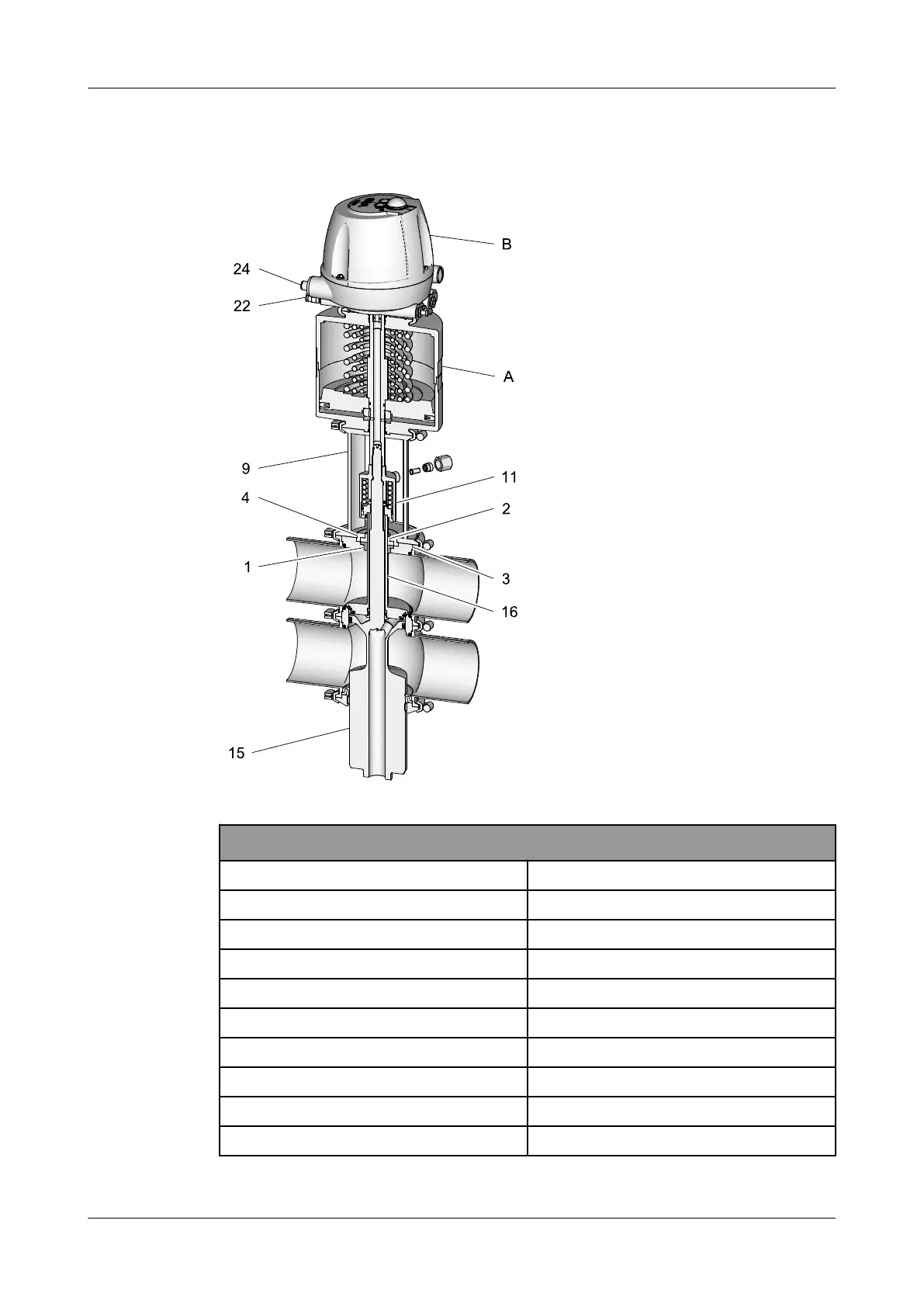

Fig.5
Design
No. Designation
A Actuator
B T.VIS control top
1 Sealing ring
2 Bearing
3 Sealing disk
4 Bearing disk
9 Lantern
11 Cleaning hood
15 Valve disk
Description
Design
430BAL008386EN_3
18 07.02.2022
