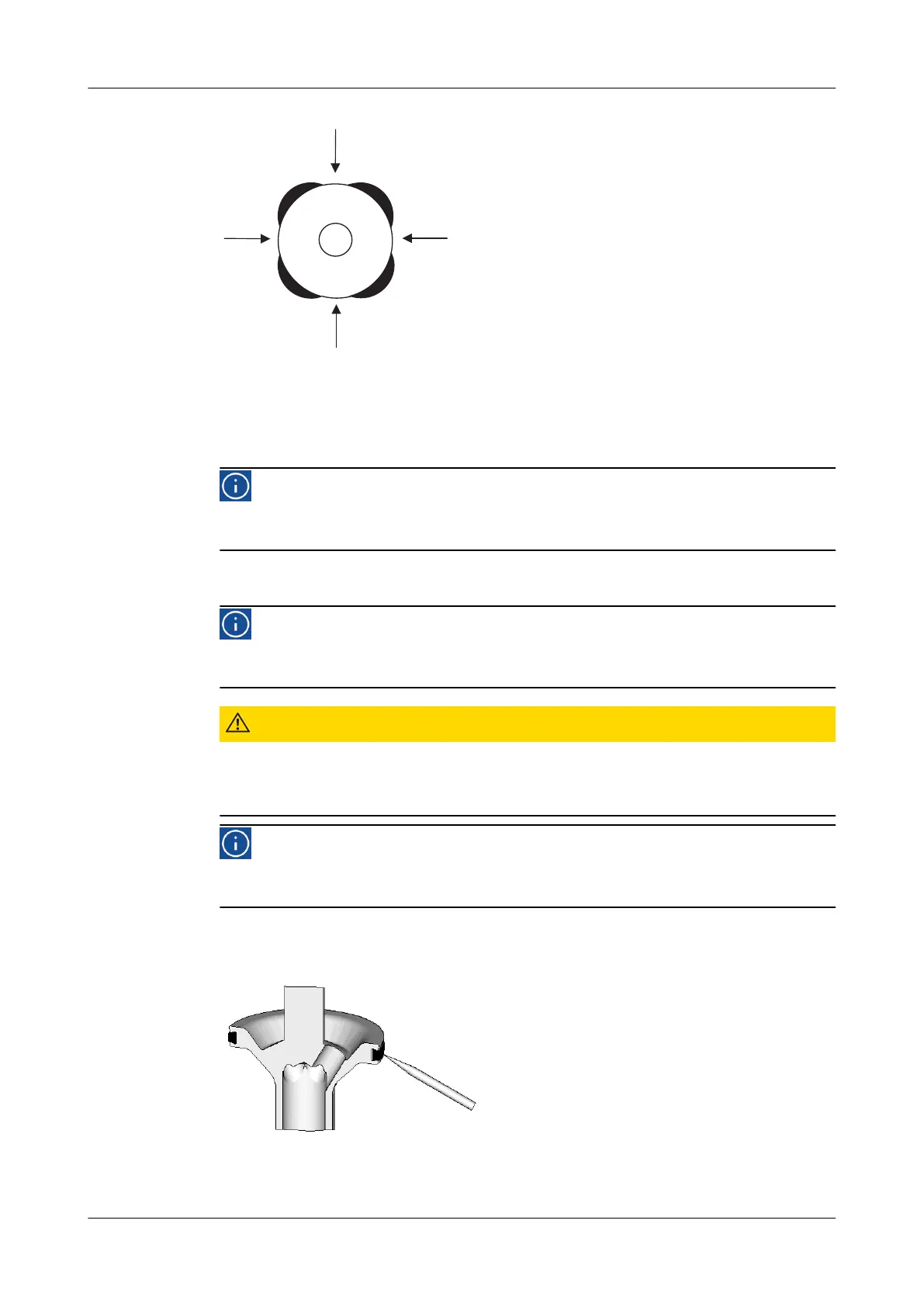

Fig.28
5.
Insert the V-ring evenly.
! Check that the V-ring is evenly and correctly inserted.
®
Done
Hint!
Used seals must not be used again, since the proper function of the
seal can then no longer be ensured.
10.7.2.2 Replacing V-Ring RA valve disk
Hint!
Replace defective seals, but always fit new housing O-rings to ensure
the tightness of the valve. Always use genuine spare parts.
Caution!
Danger of injury!
The pickset tool can slip off when the V-ring is removed
► Clamp the valve disk in the vice using vice supports
Hint!
Functional and running surfaces of the valve disks must not get
damaged.
Carry out the following steps:
1.
Put a tool from the pickset into the V-ring and take it out.
Fig.29
Maintenance
Maintenance
430BAL008386EN_3
07.02.2022 57
