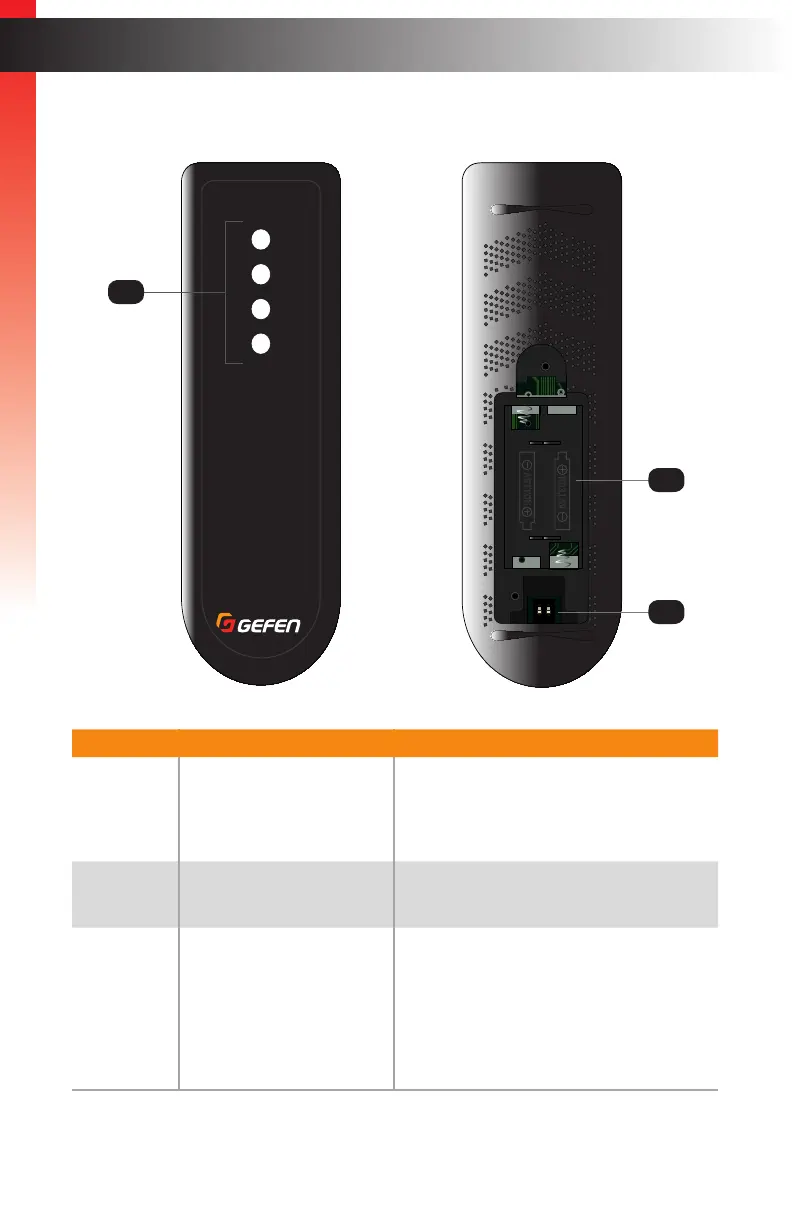

IR Remote Control
ID Name Description
1 Input buttons (1 - 4) Press these buttons to select the desired
input when performing routing operations.
Each button corresponds to an In port
(1 - 4) on the rear panel of the switcher.
2 Battery compartment
(shown open)
Accepts two 1.5V AAA-type batteries.
See the next page for more information.
3 DIP switches Sets the IR channel of the IR remote
control. In order for the IR remote control
to communicate with the switcher, both the
IR remote control and the switcher must be
set to the same IR channel. See System
Settings (page 39) for information on
setting the IR channel of the switcher.
