Using the IR Remote Control
The included IR remote control unit can also be used to switch between each input.
The front panel of the Ultra HD 600 MHz 4x1 Switcher for HDMI w/HDR has a set of four
(4) LED indicators which are associated with each input on the switcher.
1. When the switcher is powered-on for the rst time, Input 1 (In 1) will automatically
be selected.

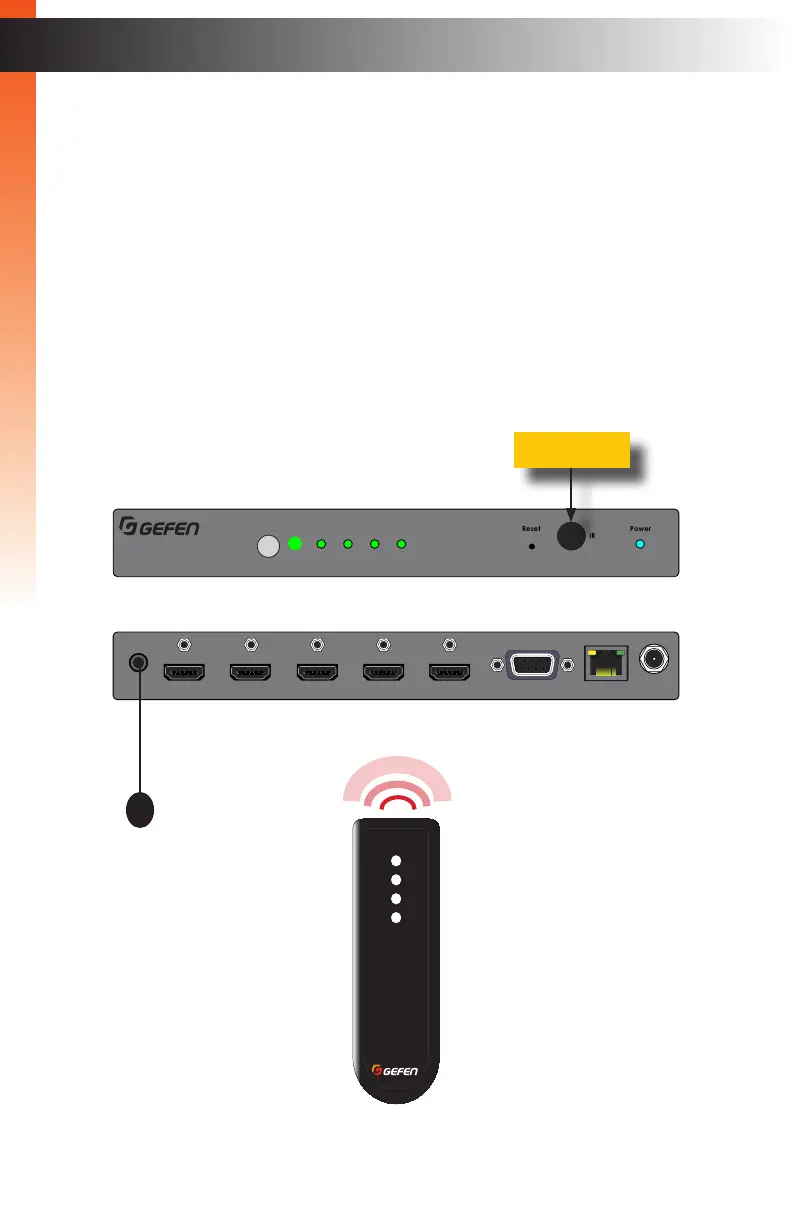

2. Point the included IR remote control unit at the IR sensor on the top panel. If an IR
extender is being used, then both IR sensors will be used to receive IR signals.
3. Each button on the IR remote control unit represents an input. Press the desired
source button on the IR remote control to switch to that input.
4K Ultra HD 600 MHz 4x1 Switcher w/HDR
Off
1 2 3 4
Select
®
4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2
IR
Reset Power
5V DC
EXT-UHD600-41
In 2 In 3 In 4In 1Output (LRP)IR In/Ext
RS-232 IP Control
Basic OperationBasic Operation
Switching Inputs
IR extender
IR sensor
4K Ultra HD 600 MHz 4x1 Switcher w/HDR
Off
1 2 3 4
Select
®
4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2
IR
Reset Power
5V DC
EXT-UHD600-41
In 2 In 3 In 4In 1Output (LRP)IR In/Ext
RS-232 IP Control
R03,1.5V
R03,1.5V
ON
1 2
®
*Preferred
RMT-41
1
2
3
4
