Gefen EXT-UHD600-41 User Manual

page | 12

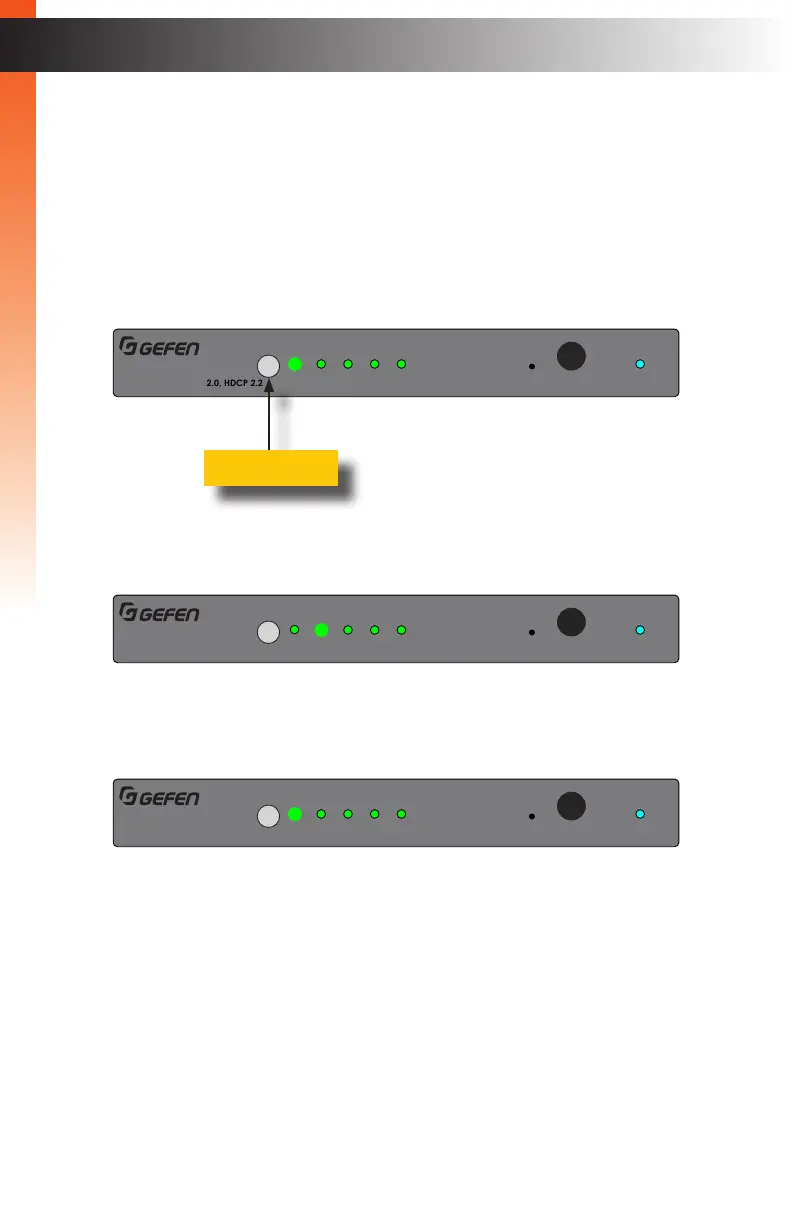

Using the Front Panel Buttons
The front panel of the Ultra HD 600 MHz 4x1 Switcher for HDMI w/HDR has a set of four
LED indicators which are associated with each input on the rear panel of the switcher.
Press the Input button to cycle through each of the inputs.
1. When the switcher is powered-on for the rst time, input 1 will automatically
be selected.
2. Press the Select button to select the next input. In this case, input 2.
3. Consecutively press the Select button until the desired input is selected. Once input 4
is selected, pressing the Select button again will return the switcher to input 1.
4K Ultra HD 600 MHz 4x1 Switcher w/HDR
Off
1 2 3 4
Select
®
4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2
IR
Reset Power
5V DC
EXT-UHD600-41
In 2 In 3 In 4In 1Output (LRP)IR In/Ext
RS-232 IP Control
4K Ultra HD 600 MHz 4x1 Switcher w/HDR
Off
1 2 3 4
Select
®
4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2
IR
Reset Power
5V DC
EXT-UHD600-41
In 2 In 3 In 4In 1Output (LRP)IR In/Ext
RS-232 IP Control
4K Ultra HD 600 MHz 4x1 Switcher w/HDR
Off
1 2 3 4
Select
®
4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2
IR
Reset Power
5V DC
EXT-UHD600-41
In 2 In 3 In 4In 1Output (LRP)IR In/Ext
RS-232 IP Control
Basic OperationBasic Operation
Switching Inputs
Select button
Basic OperationBasic Operation
