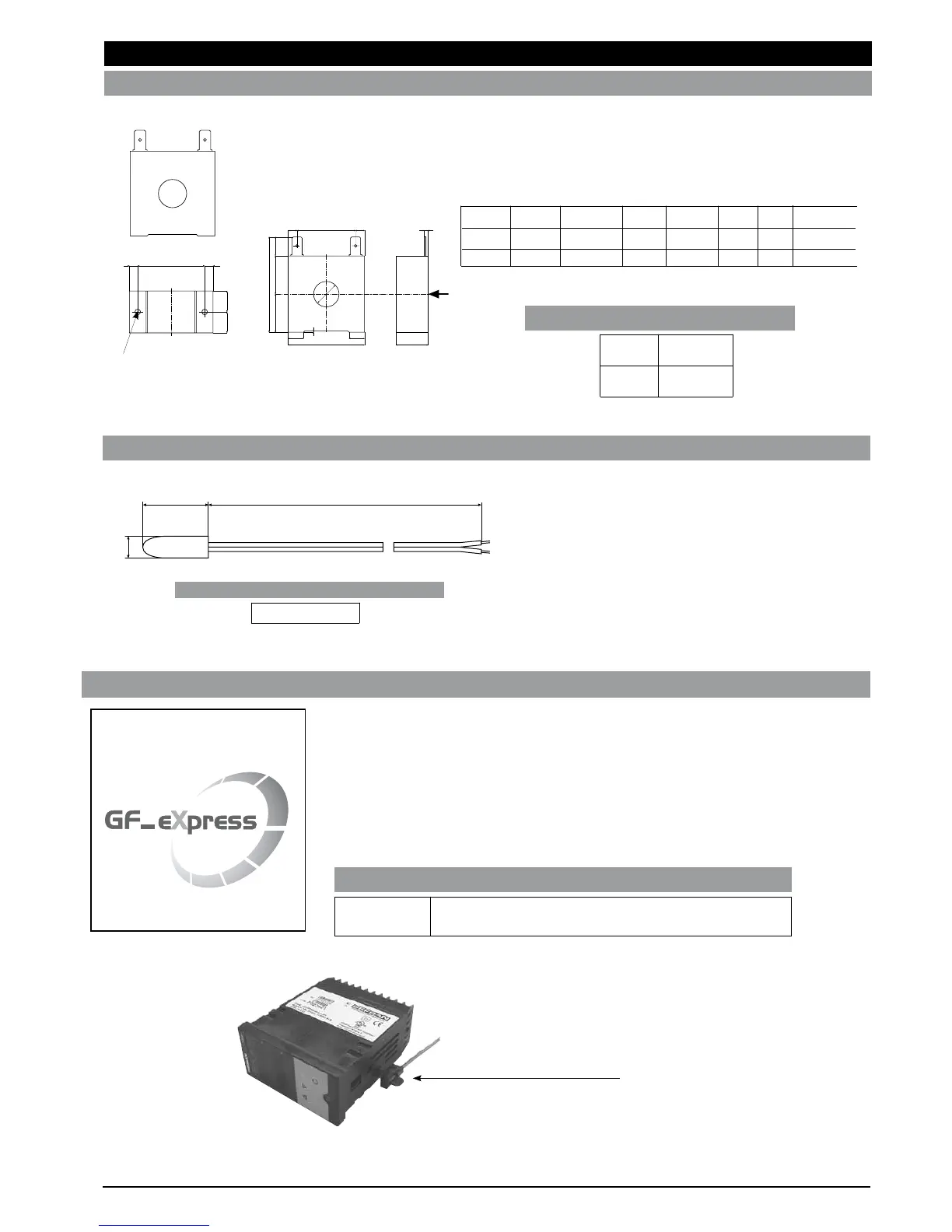

gefran 1300 User Manual

25 ±1
Ø 7 ±0,5
5,50m
PTC 7 x 25 5m
• ORDER CODE
TECHNICAL DATA
Mod. probe: Ambient probe
Cap material: Plastic (Ø 7 x 25mm)
Temperature range: -20...80°C
PTC: R25°C=1KΩ±1%(KTY81-110)
Response time: 20sec (in still air)
Isolation: 100MΩ,500Vd.c.between cap and terminals
Wire material: Unipolar in PVC (12/0,18)
Wire length: 5,50m
• Current transformer
ACCESSORIES
50 / 0.05 A
152050 9640
12
12
5,5 27 5,5
920 19
48
88
38
1
13
20
2
In
4430
1010
Hole for 2.9 x 9
self-threading screws
These transformers are used to measure currents of 50 ÷ 60Hz from 25A to 600A
(nominal primary current). The peculiar characteristic of these transformers is the high
number of secondary turns. This provides a very low secondary current, suitable for an
electronic measurement circuit. The secondary current may be detected as voltage on
a resistor.
CODE Ip / Is Ø Secondary n OUTPUTS Ru Vu ACCURACY
Wire
TA/152 025 25 / 0.05A 0.16 mm n
1-2
=500 1-2 40Ω 2Vac 2.0%
TA/152 050 50 / 0.05A 0.18 mm n
1-2
=1000 1-2 80Ω 4Vac 1.0%
IN = 50Aac
OUT = 50mAac
COD. 330200
IN = 25Aac
OUT = 50mAac
COD. 330201
• ORDER CODE
• PTC
Side insertion cable
37
81801G_MHW_1200-1300_07-2011_ENG
• Interface for GEFRAN instrument configuration
KIT PC USB / RS485 o TTL
• ORDERING CODE
KitforPCviatheUSBport(Windowsenvironment)forGEFRANinstrumentsconguration:
Lets you read or write all of the parameters
•Asinglesoftwareforallmodels
•Easyandrapidconguration
•Savingandmanagementofparameterrecipes
•On-linetrendandsavingofhistoricaldata
Component Kit:
- Connection cable PC USB ... port TTL
- Connection cable PC USB ... RS485 port
- Serial line converter
- CD SW GF Express installation
GF_eXK-2-0-0 cod F049095
