L
’

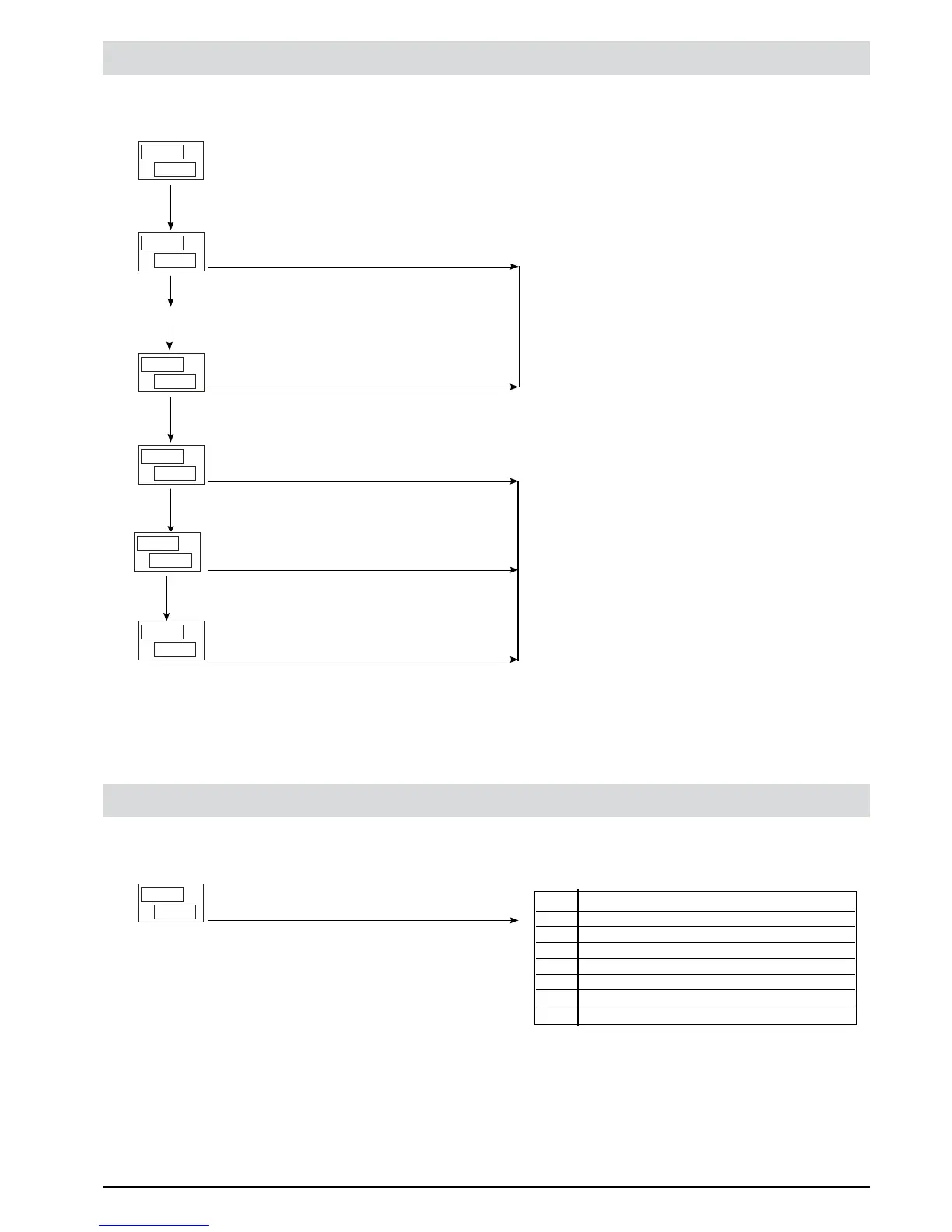

N Input linearization
This menu makes it possible to carry out custom linearization for the main input.
PV
SV
i
L
n
---
PV
SV
5.
---
00
PV
SV
5.
---
32
PV
SV
5.
---
33
PV
SV
5.
---
34
PV
SV
5.
---
35
Step 0 (beginning of scale value)
Display limits:
[-1999 ... 9999]
Step 32 (full scale value)
Display limits:
[-1999 ... 9999]
Step 33
mV beginning of scale value
Step 34
mV full scale value
Step 35
mV at 50 °C temperature
..........
The “n” step value corresponds to input:
mV beginning scale + n* mV
mV = (mV full scale - mV beginning scale) / 32
Only with TYP parameter menu INP = TC Custom
U.[A User calibration
This menu makes it possible to carry out user calibration.
PV
SV
U
G
A
---
.
U.[A Function
1 Analog output (*)
2 Input 1 - custom 10 V / 20 mA
3 Input 1 - custom 60 mV
4 Custom Pt100 / J Pt100
5 Custom PTC
6 Custom NTC
7 Input 2 – custom TA (**)
*) The analog output in 20mA is calibrated with
accuracy higher than 0.2 % f.s.
Calibrate when converting to 10V output.
**) In the absence of calibration, accuracy is higher
than 1% f.s.
Calibrate only if higher accuracy is required
29
81801G_MHW_1200-1300_07-2011_ENG
