RS5/6-34 Telescopic Handler HYDRAULICS
PRINTED IN U.S.A.8 601-20 913241/BP0508
Alt= to hide template information
Alt+ to display template information
Template Name: OML_2_col 0-00000
Template Date: 1994_04_22

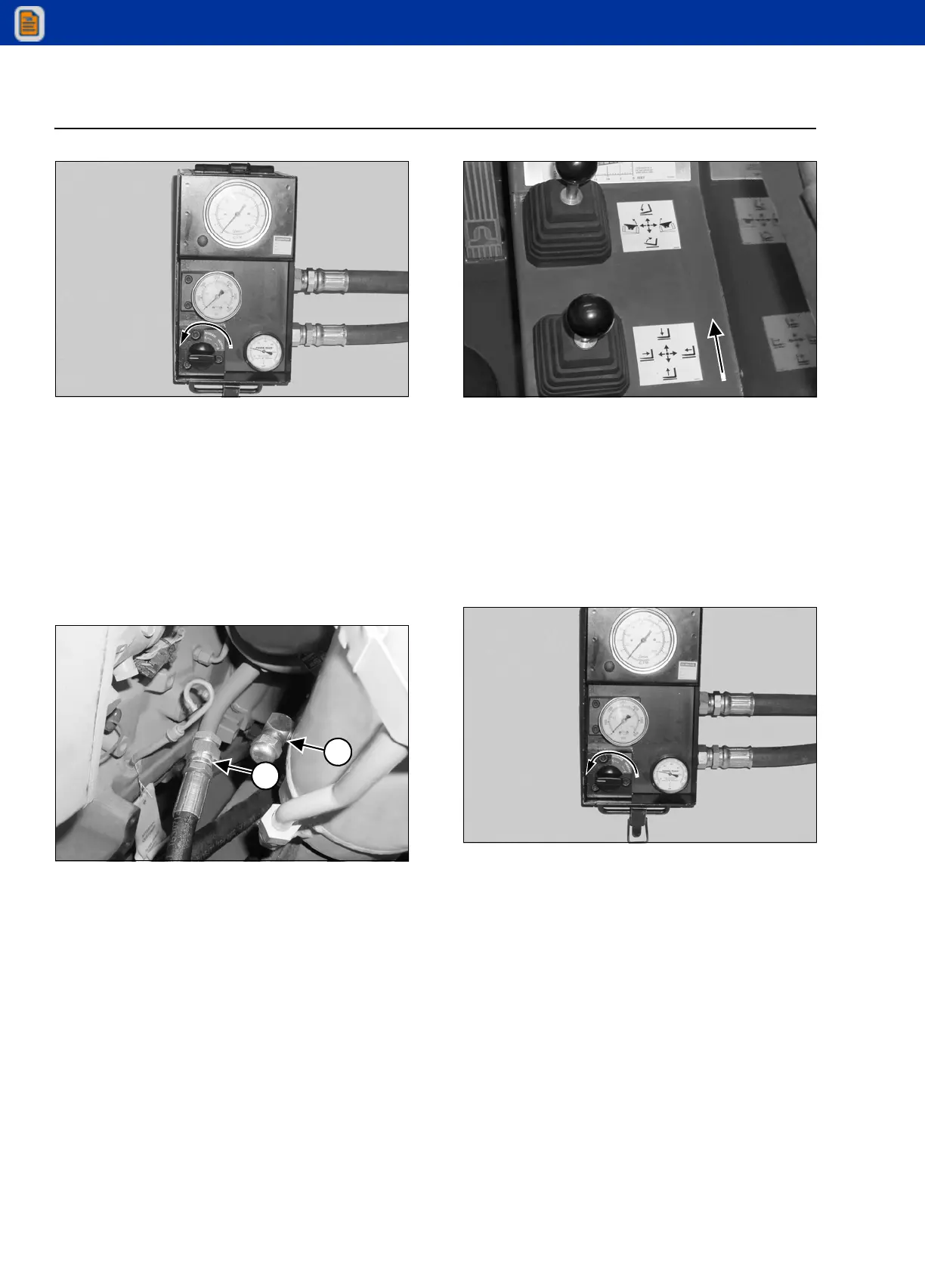

STEP 23
G0805016
Hold the joystick in the LOWER position and slowly
close the load control valve on the flowmeter until the
pressure gauge reads 3000 psi (207 bar).
If the pressure is 3000 psi (207 bar) repair or replace
the lift cylinder being tested.
If the pressure is less than 3000 psi (207 bar)
proceed to Step 24.
STEP 24
G0805093
Release the joystick, open the load control valve and
shut off the engine. Remove the hose (1) from the left
port (2) of the opposite side lift cylinder. Install a plug
in the hose (1) and a cap on the cylinder port (2).
STEP 25
G0805077
Start the engine and run at 1000 RPM. Hold the
joystick in the LOWER position.
If the pressure gauge reads 3000 psi (207 bar),
repair or replace the opposite side lift cylinder.
If the pressure is less than 3000 psi (207 bar),
proceed to Step 26.
STEP 26
G0805015
Hold the joystick in the LOWER position.
Slowly close the load control valve of the flowmeter
until the pressure gauge reads 3000 psi (207 bar).
If the pressure is 3000 psi (207 bar), repair or replce
both lift cylinder.
If the pressure is less than 3000 psi (207 bar), follow
the procedure in the Main Control Valve Pressure
Relief Test and Adjustment section of this manual.
