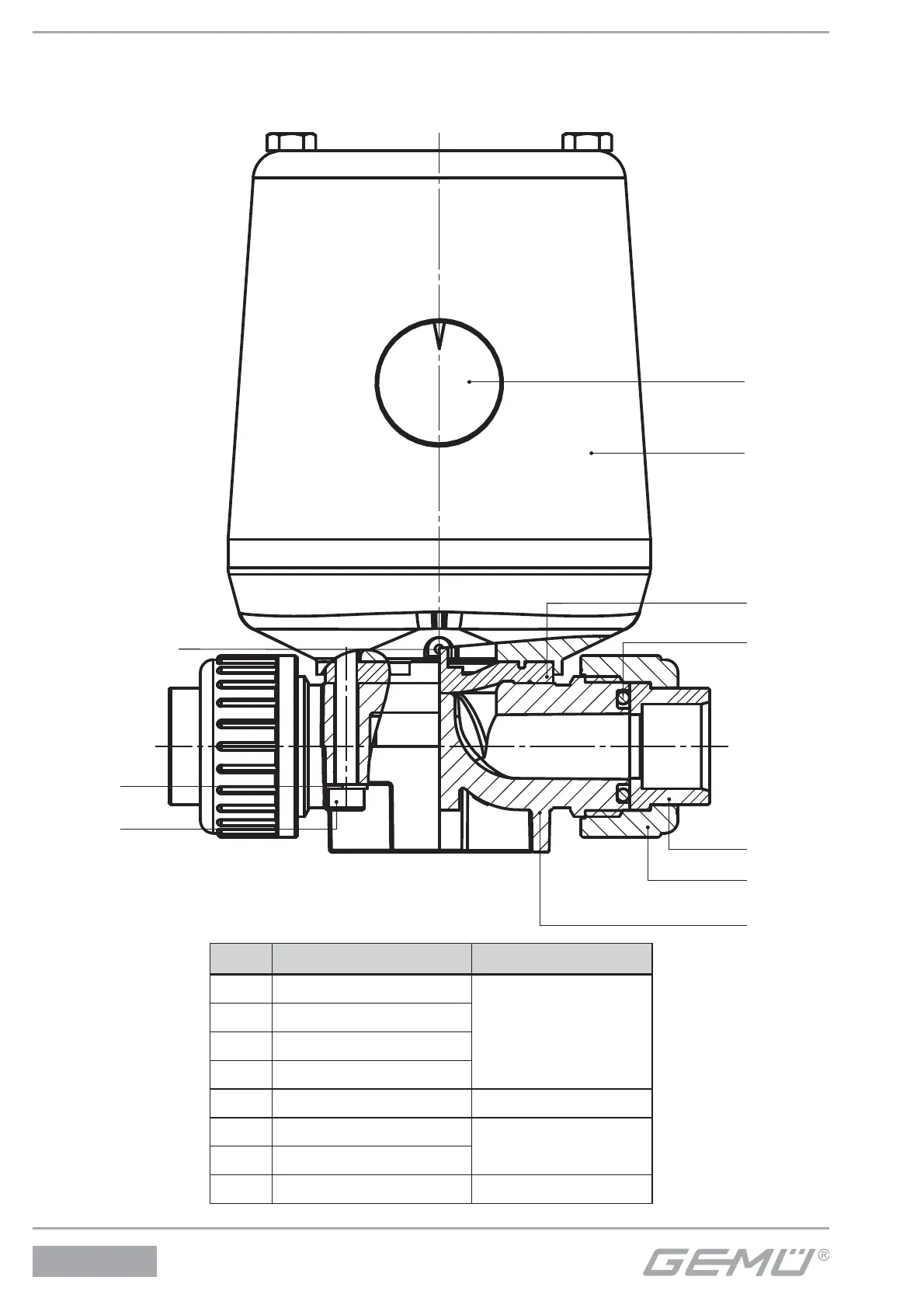

21 Sectional drawings and spare parts
GEMÜ 613
19
18
1
4
5
3
A
2
Leak
detection
hole
Item Name Order description
1 Valve body
}
K610...
3 O-ring
4 Insert
5 Union nut
2 Diaphragm 600...M
18 Bolt
}
613...S30...
19 Washer
A Actuator 9618...
Optical
position
indicator
