Gemalto Prox–DU Guide

PC/SC Guide
Prox–DU & Prox–SU
www.gemalto.com
DOC119811A Public Use Page 86/129
The next window will be displayed:

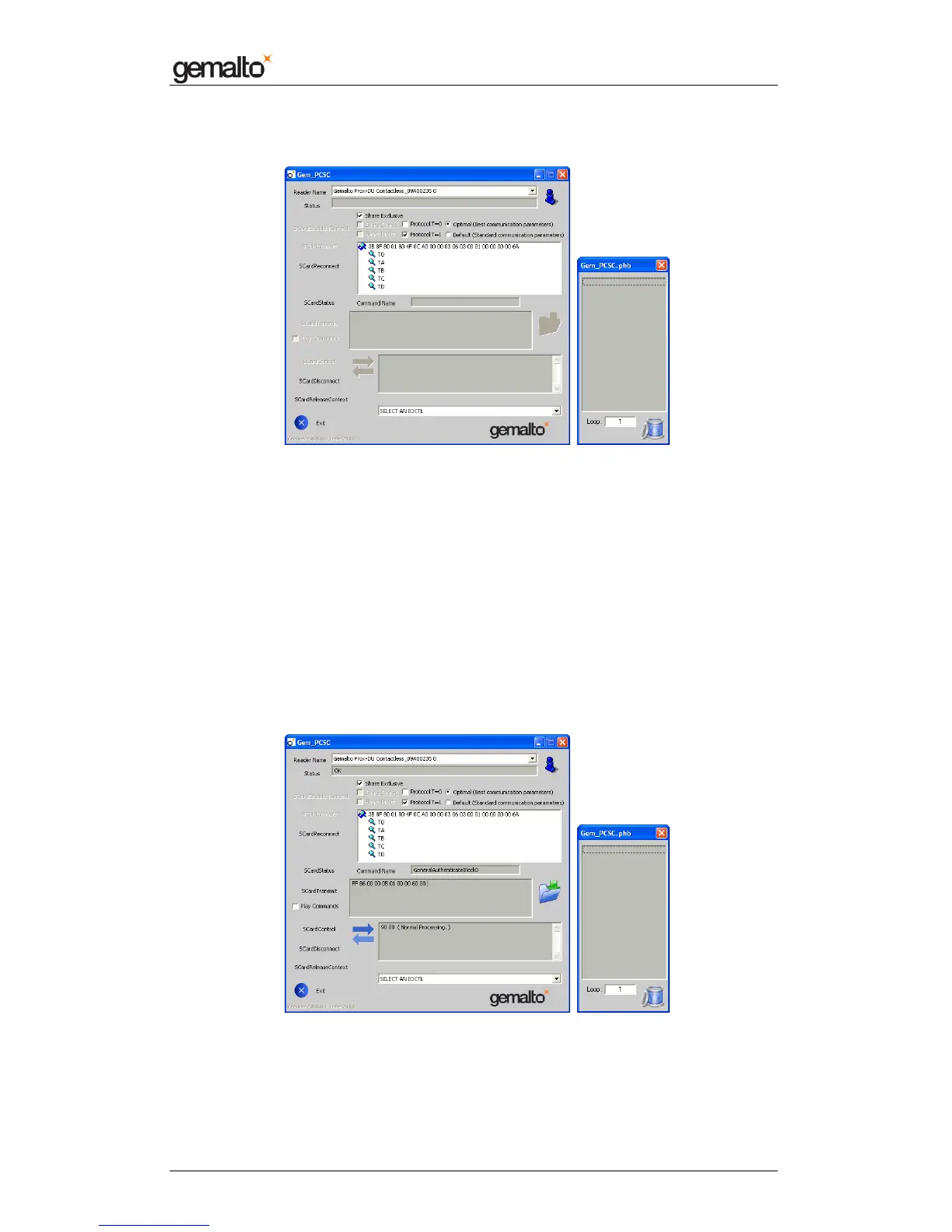

Figure 13 – Gem_PCSC window after “SCardConnect”
The ATR of the smart card will be displayed: 3B 8F 80 01 80 4F 0C A0 00 00 03 06 03 00
01 00 00 00 00 6A corresponding to a Mifare
®
1K smart card.
3- Define the Mifare
®
commands to be used:
3-a First authenticate the block number 0:
• In the “Command Name” box type the following smart card command:
o “GeneralAuthenticateBlock0”
• In the field below type the corresponding APDU command (according to PC/SC V2
specification)
o “FF 86 00 00 05 01 00 00 60 00“
o Meaning “Authenticate block number 0 using the Key A number 0”
• Click the “SCardTransmit” button
The next window will be displayed:
Figure 14 – Gem_PCSC window after “SCardTransmit” the Authentication command
The smart card response is displayed:
