- 22 -

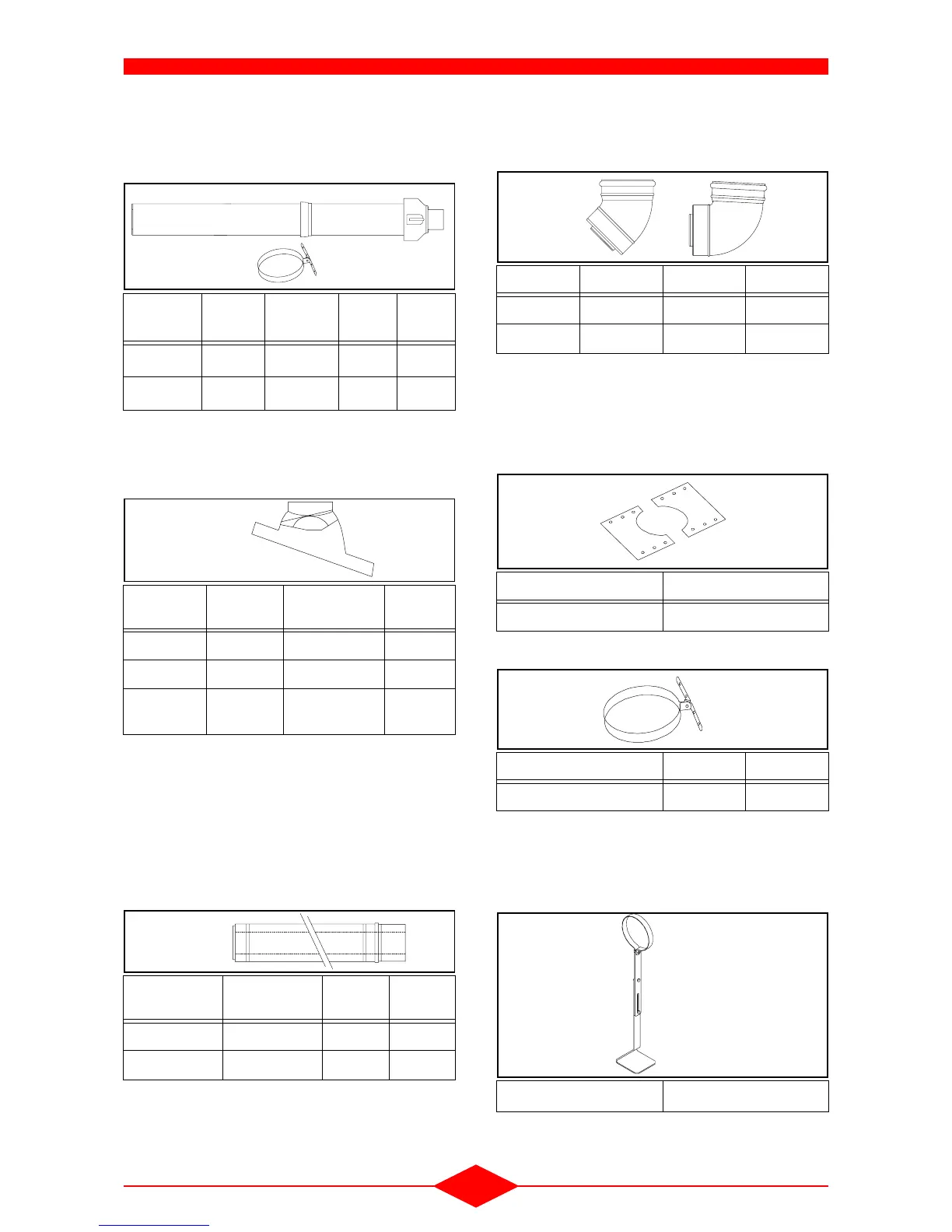

INSTALLATION
3.3.3.1 - Polypropylene/PE
Concentric vertical terminal (option)
For any type of sloping roof.
Useful length under sleeve tile - l = 0,75 m
3.3.3.2 - Sleeve tile with adaptable coupling
(option)
*Suits any type of tile, for flat tiles < 8 mm use Slate
model.
Any use of another manufacturer’s accessories will
automatically cancel our watertightness guarantee.
3.3.3.3 - PPtl/PVC
Concentric extension (option)
Joint fitting.
Useful length after assembly - l = 0,45 m or 0,95 m
3.3.3.4 - PPtl/PVC concentric elbow (option)
Joint fitting.
Each 45° elbow added reduces the total authorized
length by 0.5 m.
Each 90° elbow added reduces the total authorized
length by 1 m.
3.3.3.5 - Polypropylene roof plate (option)
3.3.3.6 - Fastening collar (optional)
These collars are essential to fix the vertically posi-
tioned extensions so that the boiler outlet does not
bear the weight of the conduits.
3.3.3.7 - Adjustable support
Reference Colour
Length
mm
int. ∅
mm
ext. ∅
mm
N40.28393 Tile 1320 80 125
N40.28394 Black 1320 80 125
Reference Slope
Covering
type
Colour
N40.12165 25 ° - 45 ° Tile* Tile
N40.12166 35 ° - 55 ° Tile* Tile
N40.12167 35 ° - 55 °
Slate -
Shingle
Black
Reference
Length
mm
int. ∅
mm
ext. ∅
mm
N40.28397 500 80 125
N40.28398 1000 80 125
FCX-20-0
Fig. 29
AM5-22-0
Fig. 30
AM5-23-0
Fig. 31
Reference Bend type int. ∅ mm ext. ∅ mm
N40.28395 45° 80 125
N40.28396 90° 80 125
Reference Colour
A90.12172 black
Reference Number ∅ mm
B00.29727 3 125
Reference
V72.29939
AM5-24-0
90° Bend
Fig. 32
45° Bend
AM5-27-0
Fig. 33
AM5-26-0
Fig. 34
PDG-SUP
Fig. 35
