geminox FCX 22 C User Manual

- 24 -
INSTALLATION

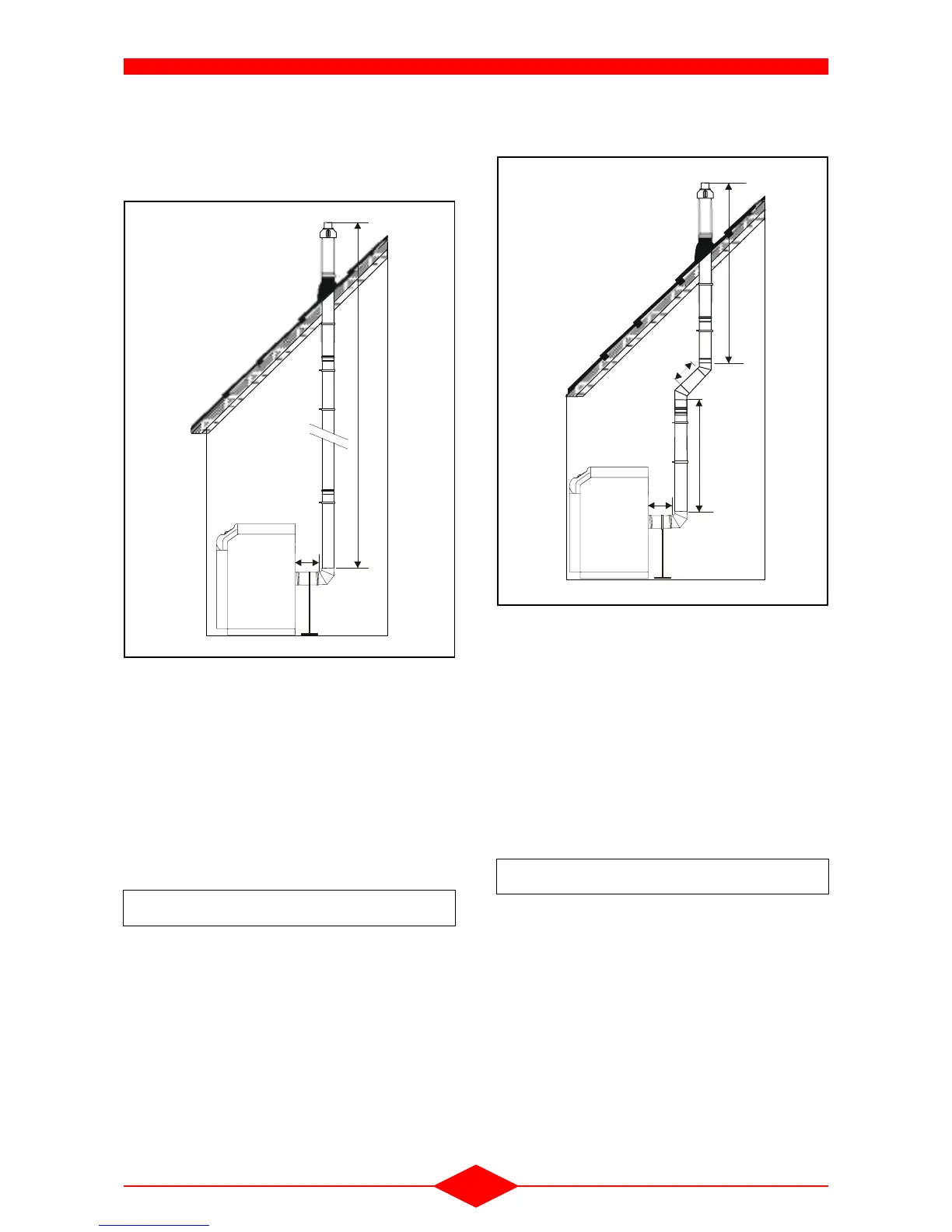

3.3.3.9 - Examples of installation with a boiler
outlet extension
3.3.3.9.1 - Straight configuration
Accessories:
- 1 90° concentric elbow Ø 80/125
- concentric extensions Ø 80/125,
- 1 concentric vertical terminal Ø 80/125,
- 1 vertical terminal fastening collar (supplied with
the vertical terminal),
- 1 sleeve tile adaptable according to the type of
roof covering and the roof slope,
- 1 roof plate,
- 3 Ø 125 fastening collars,
- 1 adjustable support,
Note:
- Each 45° elbow added reduces the maximum
authorised length by 0.5 m.
- Each 90° elbow added reduces the maximum
authorised length by 1m.
3.3.3.9.2 - Configuration with elbows
Accessories:
- 1 90° concentric elbow Ø 80/125,
- 3 concentric extensions Ø 80/125,
- 2 45° concentric elbows Ø 80/125,
- 1 concentric vertical terminal Ø 80/125,
- 1 vertical terminal fastening collar (supplied with
the vertical terminal),
- 1 sleeve tile adaptable according to roof covering
type and slope,
- 1 roof plate.
- 3 Ø 125 fastening collars,
- 1 adjustable support
Note:
- Each 45° elbow added reduces the maximum
authorised length by 0.5 m.
- Each 90° elbow added reduces the maximum
authorised length by 1m.
Lmax = L1 + 1 m + L4 ≤ 9 m
L
1
FCX-28-0
L
4
Fig. 38
Lmax = L1 + 0,5 m + L2 + 0,5 m+ L3 + 1 m + L4 ≤ 9 m
L
1
L
2
L
3
FCX-29-0
L
4
Fig. 39
