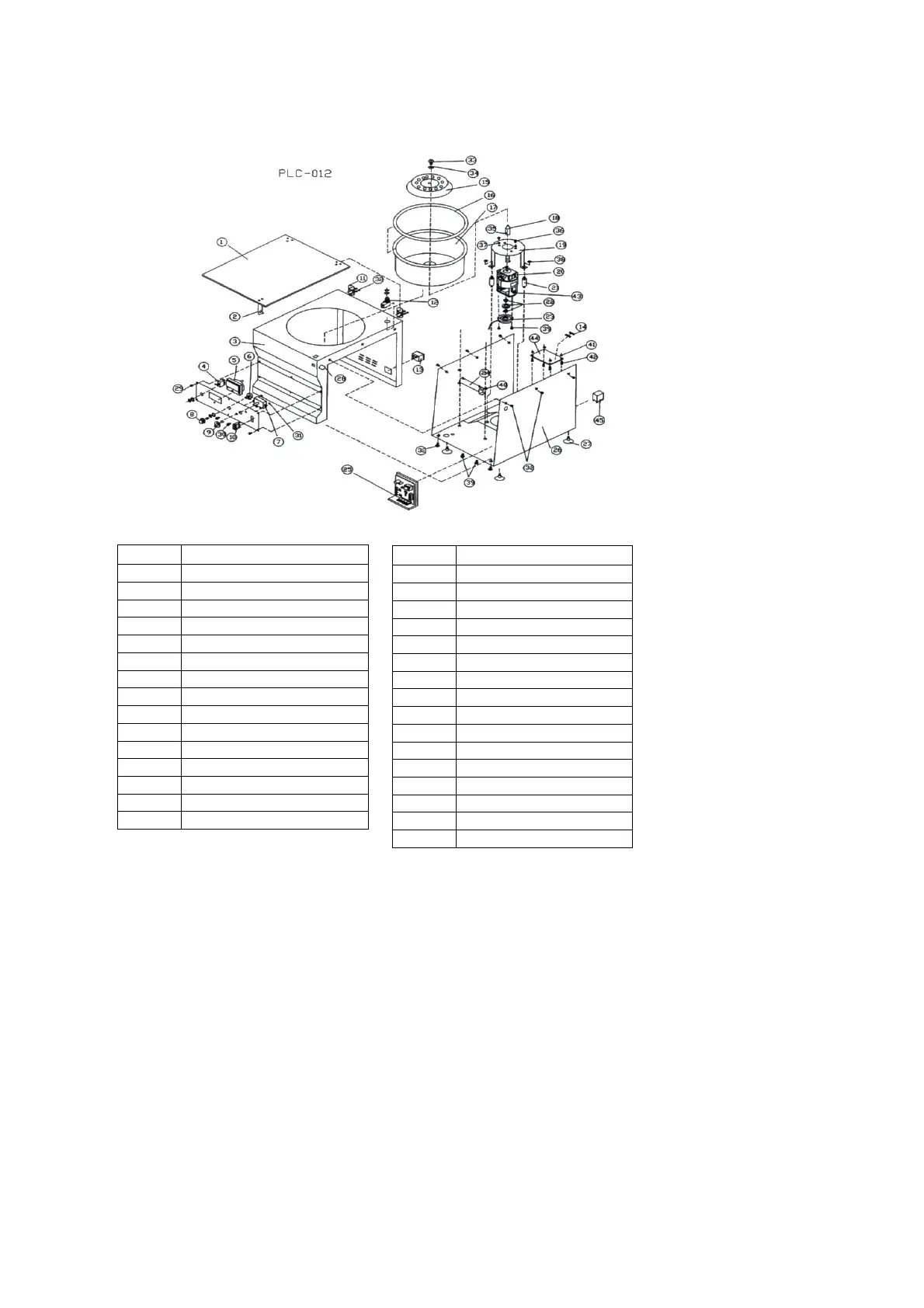

Diagram of Components

PLC-012 Series

Code Description

17 Chamber,

18 Brass connector

19 Rack, motor

20 Motor, 80W, AC, brush

21 Rubber support,

22 Bearing, motor

23 Generator, motor

24 Coil resistance

25 Circuit board

26 Case, down

27 Suction feet

28 Lock

33 Bolt, rotor

43 Carbon brush

44 EMC filter

45 Relay

Code Description

1 Cover

2 Lock

4 Toggle switch, brake

5 Speed indicator

6 VR, speed regulator

7 Timer

8 Control knob, VR

9 Control knob, timer

10 Rocker switch, power

11 Hinges, 2 required

Micro switch, safety shutout

13 Inlet, power cord

14 Fuse, 5A, inlet

15 Rotor, aluminum alloyed

16 Rubber gasket, chamber
