Gendex Expert DC - Page 9

Preinstallation
3
Document No. PEXPERTIM - Rev. 1 - Release Date: May 2007
(Continued)
Gendex eXpert DC75 W/8" (20 cm) CONE
26" (66 cm) MIN REACH
79" (200 cm) MAX REACH
Gendex eXpert DC55 W/8" (20 cm) CONE
11” (28 cm) WHEN
TUBE IS ROTATED WITH
12” (31 cm) CONE
7” (18 cm) WHEN
TUBE IS ROTATED WITH
8” (20 cm) CONE

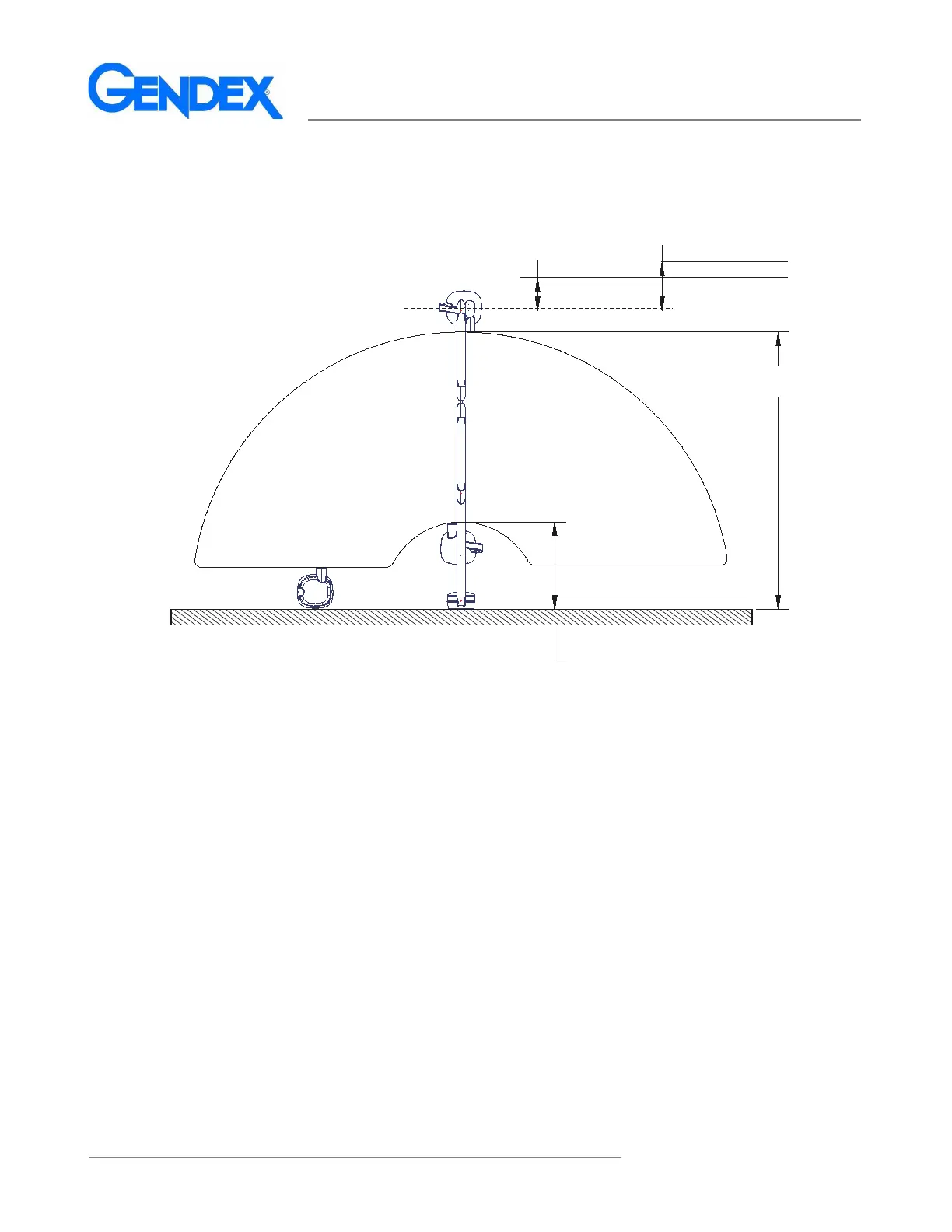

Figure 2 Maximum and Minimum Reach
