48 Installation Guidelines for 60 Hz EcoGen™ Generator

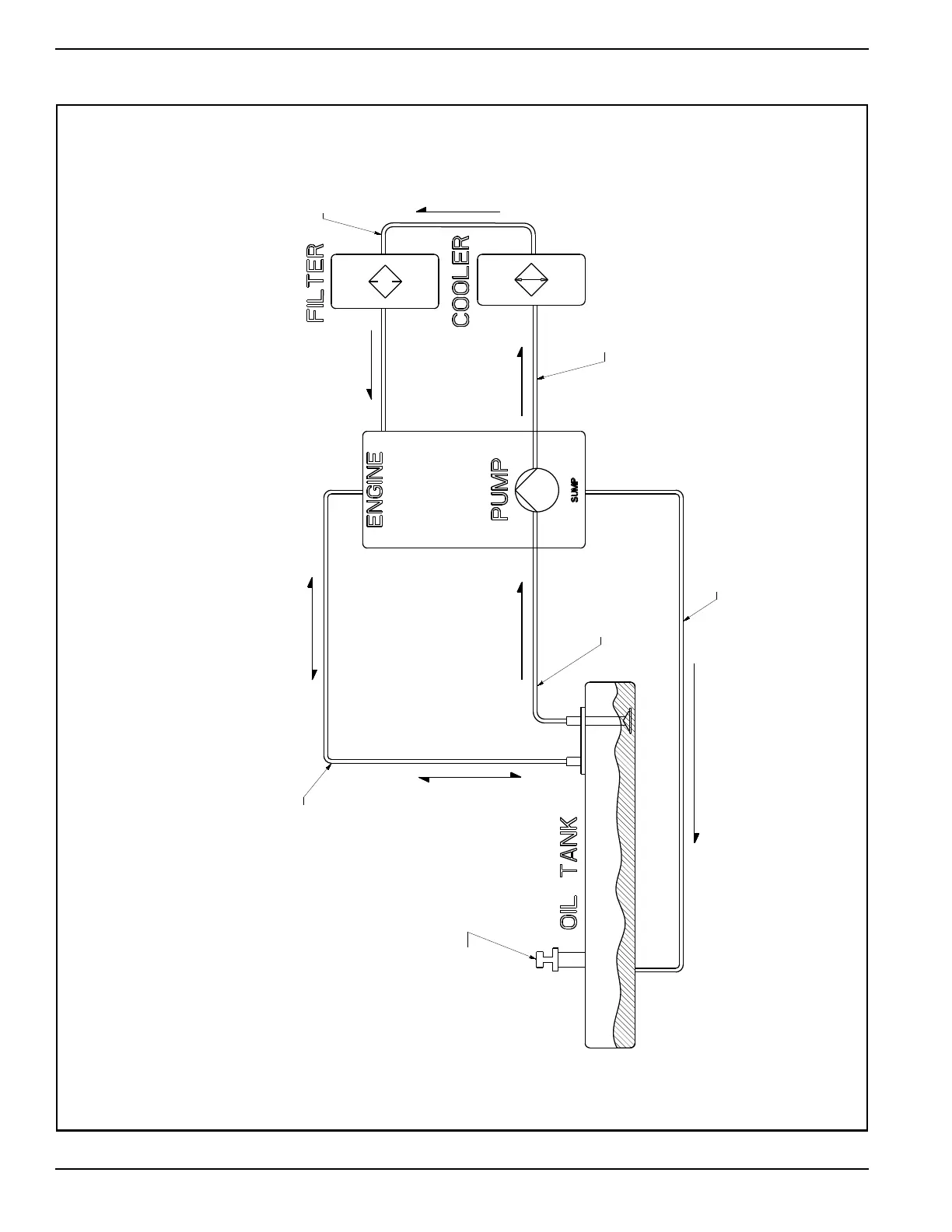

Oil Make Up System Schematic
OIL MAKE UP SYSTEM
SCHEMATIC
(NOT TO SCALE)
VENT HOSE
ENGINE-OUT HOSE
ENGINE-IN HOSE
(TO OIL PUMP)
COOLER-IN HOSE
COOLER-OUT
HOSE
OIL DIPSTICK AND FILL
001478
