Unpacking and Inspection
10 Installation Guidelines for 60 Hz EcoGen™ Generator
Parts Shipped Loose

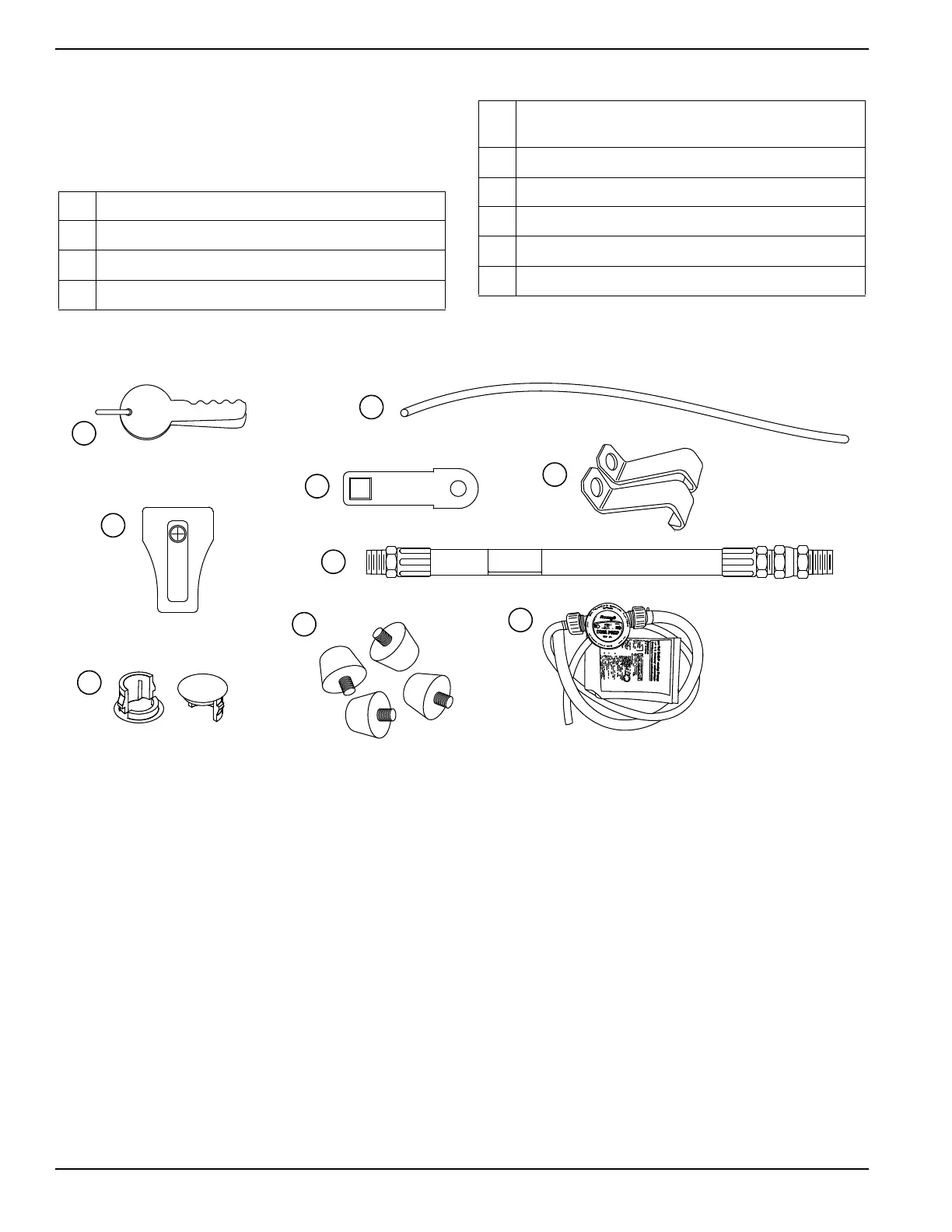

See Figure 2-8. Parts shipped loose are located in a
clear plastic bag inside the battery compartment. The
flexible fuel line (6) is tied to either the battery wires or
the alternator can.
Figure 2-8. Parts Shipped Loose
A. Keys
B. Battery Terminal Cap
C. Main Line Circuit Breaker (MLCB) Terminal Caps
D. Wire Shielding to separate AC from DC control wires
E. Main Line Circuit Breaker (MLCB) Locking
Mechanism
F. Flexible Fuel Line
G. Rubber Mounts (only for units that include fascia)
H. Rear Mounting Brackets (2)
I. Oil Drain Pump Kit
J. Installation and Owner’s Manuals (not shown)
