INSTALLATION

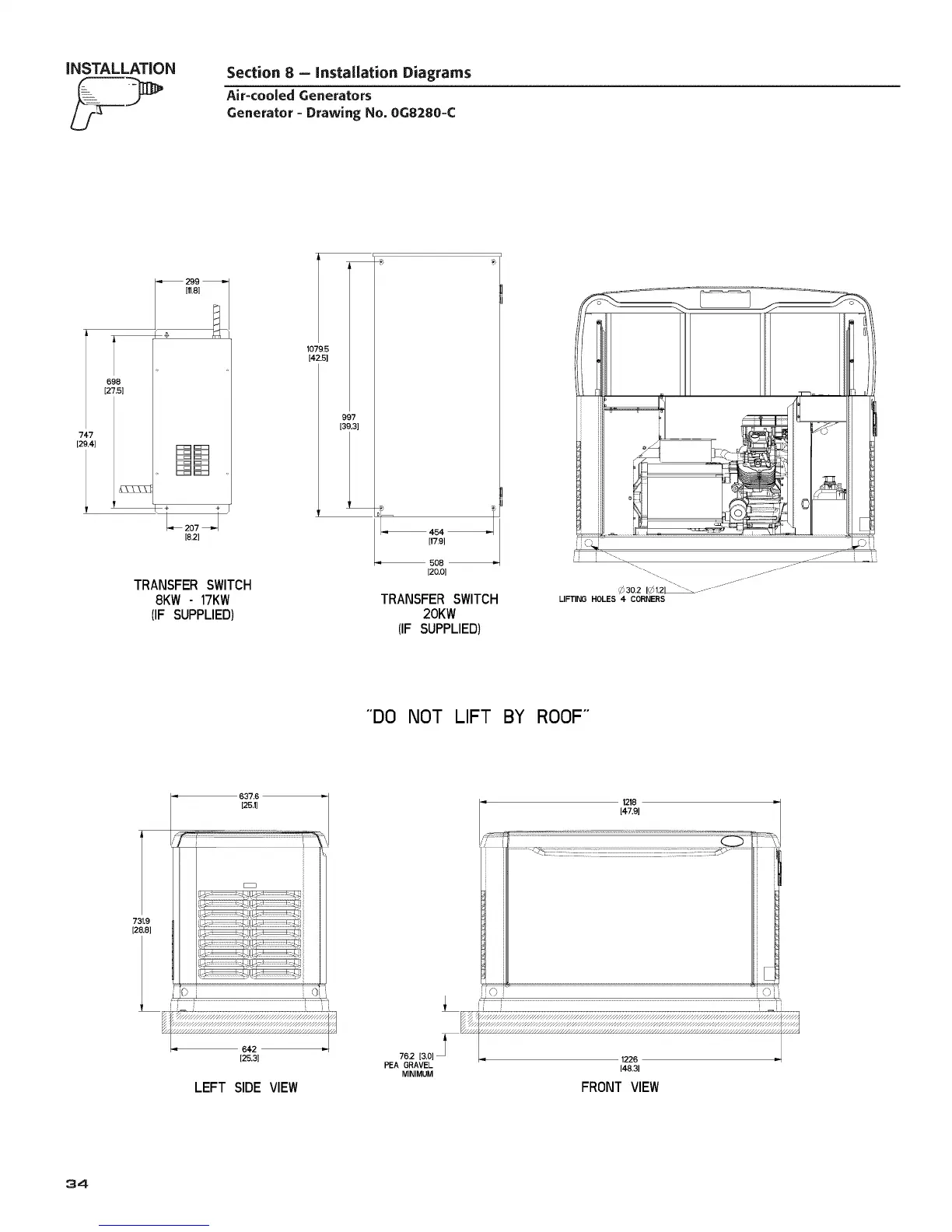

Section 8 - Installation Diagrams
Air-cooled Generators
Generator - Drawing No. 0G8280-C
747
[29.4]
698
[27.5]
_299_
[11,8]
1 2o7 1
[8.2]
TRANSFER SWITCH
8KW - 17KW
(IF SUPPLIED)
454
[17.9]
_508
[2O.O]
TRANSFER SWITCH
20KW
(IF SUPPLIED)
is i ..........
J
_30.2 1_1.2_ ............
LIFTING HOLES 4 CORNERS
"'DO NOT LIFT BY ROOF"
637.6
[25.1]
1218
[47.91
H
H
H
H
642
[25.31
LEFT SIDE VIEW
76.2 [3.0] y
PEA GRAVEL
MINIMUM
1226
148.31
FRONT VIEW
34
