Section 1 - General information

Air-cooled Generators

GENERAL

NFORMATON

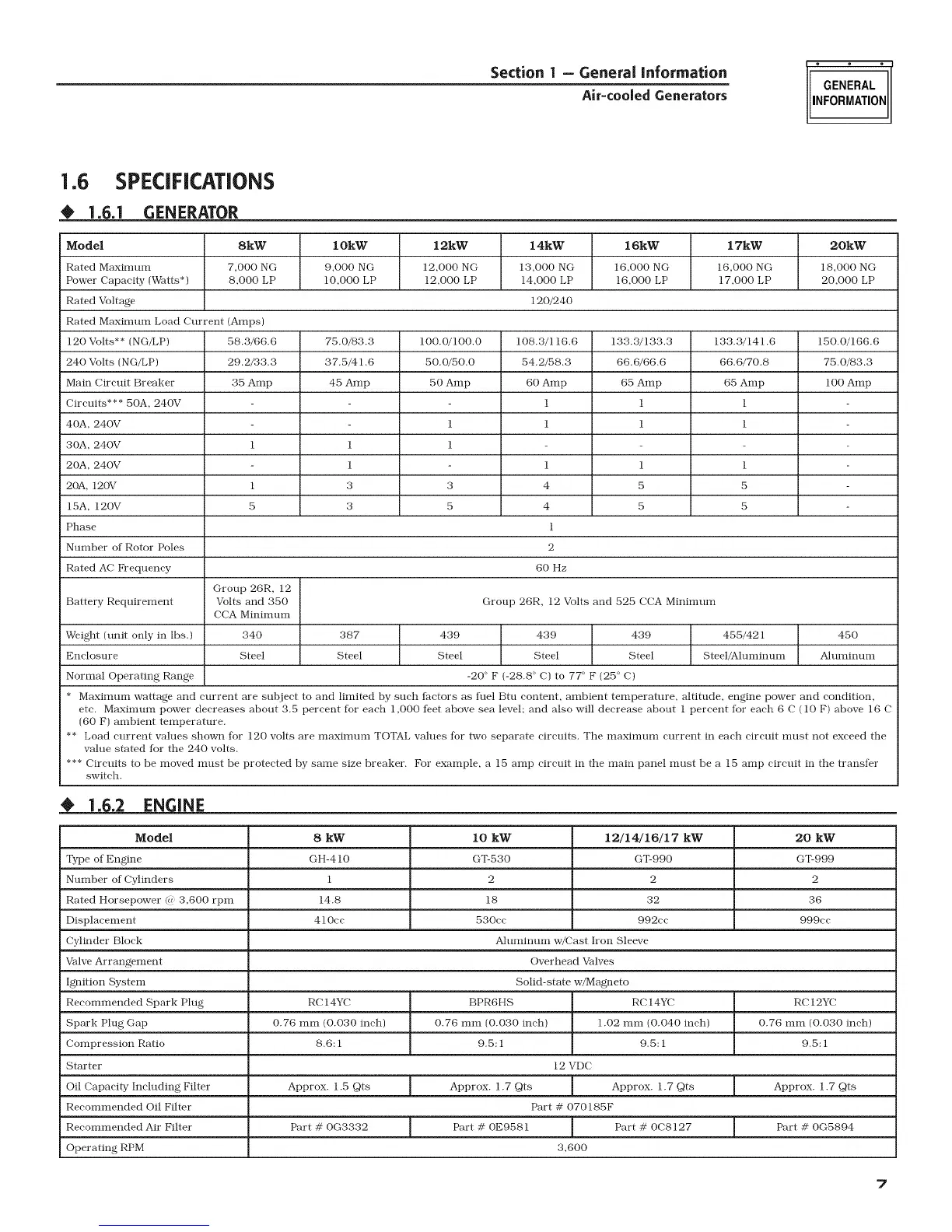

1.6 SPECiFiCATiONS

• 1.6.1 GENERATOR

Model 8kW 10kW 12kW 14kW 16kW 17kW 20kW

Rated Maximum 7,000 NG 9,000 NG 12,000 NG 13,000 NG 16,000 NG 16,000 NG 18,000 NG

Power Capacity (Watts*) 8,000 LP 10,000 LP 12,000 LP 14,000 LP 16,000 LP 17,000 LP 20,000 LP

Rated Voltage 120/240

Rated Maximum Load Current (Amps)

120 Volts** (NG/LP) 58.3/66.6 75.0/83.3 100.0/100.0 108.3/116.6 133.3/133.3 133.3/141.6 150.0/166.6

240 Volts (NG/LP) 29.2/33.3 37.5/41.6 50.0/50.0 54.2/58.3 66.6/66.6 66.6/70.8 75.0/83.3

Main Circuit Breaker 35 Amp 45 Amp 50 Amp 60 Amp 65 Amp 65 Amp 100 Amp

Circuits*** 50A, 240V 1 1 1

40A, 240V 1 1 1 1

30A, 240V 1 1 1

20A, 240V 1 1 1 1

20A, 120V 1 3 3 4 5 5

15A, 120V 5 3 5 4 5 5

Phase 1

Number of Rotor Poles 2

Rated AC Frequency 60 Hz

Group 26R, 12

Battery Requirement Volts and 350 Group 26R, 12 Volts and 525 CCA Mininmm

CCA Minimum

Weight (unit only in lbs.) 340 387 439 439 439 455/421 450

Enclosure Steel Steel Steel Steel Steel Steel/Aluminum Aluminum

Normal Operating Range -20 ° F (-28.8 ° C) to 77 ° F (25 ° C)

* Maximum wattage and current are subject to and limited by such factors as fuel Btu content, ambient temperature, altitude, engine power and condition,

etc. Maximum power decreases about 3.5 percent for each 1,000 %et above sea leveh and also will decrease about 1 percent for each 6 C (10 F) above 16 C

(60 F) ambient temperature.

** Load current values shown for 120 volts are maximum TOTAL values for two separate circuits. The maximum current in each circuit must not exceed the

value stated for the 240 volts.

*** Circuits to be moved must be protected by same size breaker. For example, a 15 amp circuit in the main panel must be a 15 amp circuit in the trans%r

switch.

ld_.1 ENGINE
