Genie GCL-MJ User Manual

Sec-3.2
L1
N
GND
PWR
RAD GND
OPEN CLOSE
STOP GND 1-BTN
N-O SAFETY
N-O SAFETY
ODC STB
ODC STB
EXT INTLK
EXT INTLK
OPEN
CLOSE
STOP
1-BTN
STATION
KEY
SWITCH
STATION
CARD
READER
O/C
PULL
SWITCH
RELAY
GND
NOM + 24VDC
SENSING EDGE SWITCH
N-O N-O N-O N-O
3-BUTTON STATION
SERIES II (STB) PHOTOCELLS
+
-
+
-
THRU-BEAM PHOTOCELLS
RADIO
REMOVE JUMPER WHEN INSTALLING EXTERNAL INTERLOCK
CONTROL SIGNAL TERMINAL STRIP
MULTIPLE 3-BUTTON
STATION INSTALLATIONS REQUIRE THE STOP
BUTTON TO BE WIRED IN SERIES
REMOVE JUMPER IF STOP BUTTON IS USED
LINE IN
POWER CONNECTIONS
CLASS 2 SUPPLY 20-40 VDC
120V
EXTERNAL RADIO CONNECTIONS
CLASS 2 SUPPLY 20-40 VDC
(*CONNECT STB WIRES TO EITHER TERMINAL)
LINE (HOT)
NEUTRAL
*
GND
PWR
20-40 VDC @ 300MA
MAX CURRENT
BLUE
ORANGE
YELLOW
*
*
Interface Module
2-wire monitored edge switch

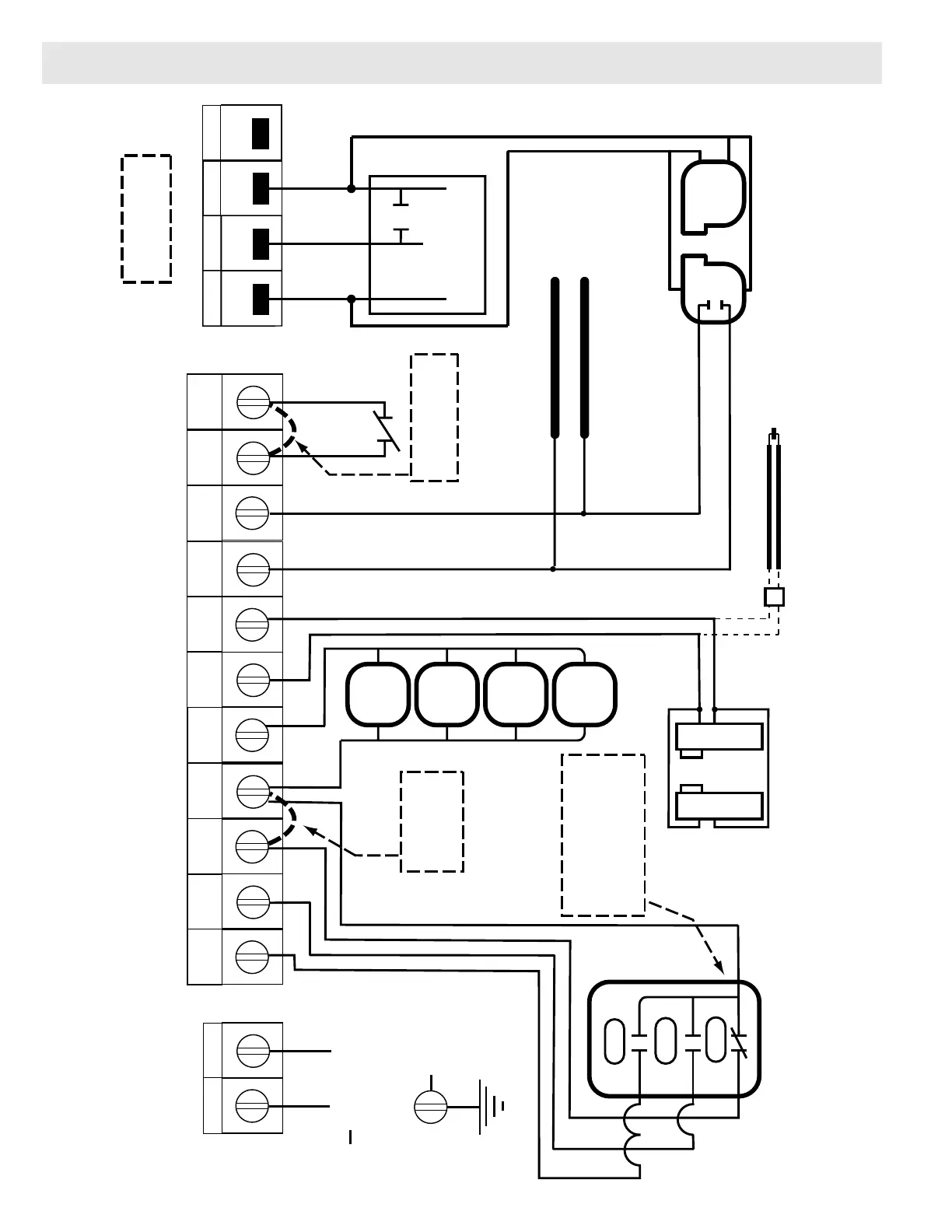

GENERAL INTERNAL WIRE DIAGRAM
Section 3: Wiring
