Genie GCL-MJ User Manual

Sec-3.10
Photocells:
Top of lens
to floor
RESIDENTIAL
SAFE-T-BEAM® (STB)
CONTROL SIGNAL
TERMINAL STRIP
ODC
STB
ODC
STB
CONNECT WIRES TO EITHER TERMINAL.
(NOT POLARITY SENSITIVE)
N-O
SAFETY
N-O
SAFETY
+
-
+
-
THRU-BEAM
PHOTOCELLS
CONTROL SIGNAL
TERMINAL STRIP
RECEIVER
TRANSMITTER
EXT RADIO CONNECTOR
PWR
20-40 VDC @ 250mA
MAX. CURRENT
RELAY
GND
NOM
+ 24VDC
RADIO
Blue Orange
Yellow

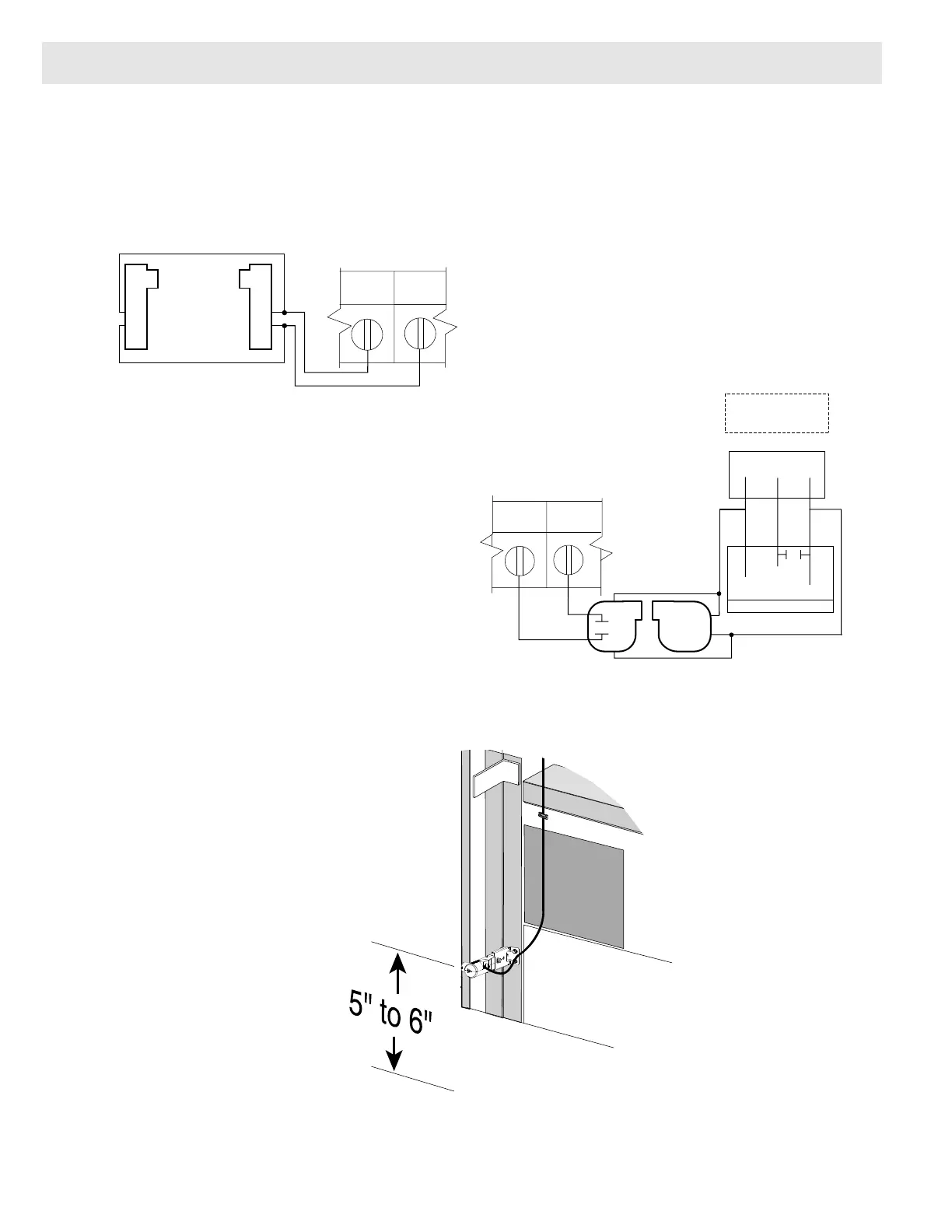

Monitored Type Photocells
Non-Monitored Type Photocells
Photocell Installation
FIG. 5
FIG. 6
FIG. 7
Section 3: Wiring
