Genie GCL-MJ User Manual

Sec-3.12
Monitored Edges, Wireless:
Actuating the operator by using constant contact on the CLOSE button will override non-functioning
external reversing devices, including sensing edges.
WARNING
!
AVERTISSEMENT
!
L’activation de l’operateur en util isant un contact constant sur le bouton FERMER annulera les dispositifs
d’inversions externes, y compris les systèmes de détection des bords.
Section 3: Wiring
External Radio Harness
Blue
Yellow
Orange
Control Wire
Terminals
ODC
STB
ODC
STB
Yellow
Blue
MEL-II
Power
MEL-II-8 pin connector
CH 1 CH2
COM
PULSED
MEL-II
Transmitter
PWR
White White
OPERATOR
TERMINAL
STRIP
MEL-II
RECEIVER
1. Mount Wireless Edge Receiver adjacent to operator.
2. Route MEL wireless receiver wires into operator electric box using suitable conduit and clamp systems.
3. Attach MEL wireless receiver power wires (blue/yellow) to external radio plug as shown below.
4. Attach MEL wireless receiver trip wires (white/white) to ODC STB terminals on control wire terminal strip.
5. Mount MEL wireless transmitter to bottom edge of door per MEL instructions.
Right-hand installation shown, Left-hand installation mirrored

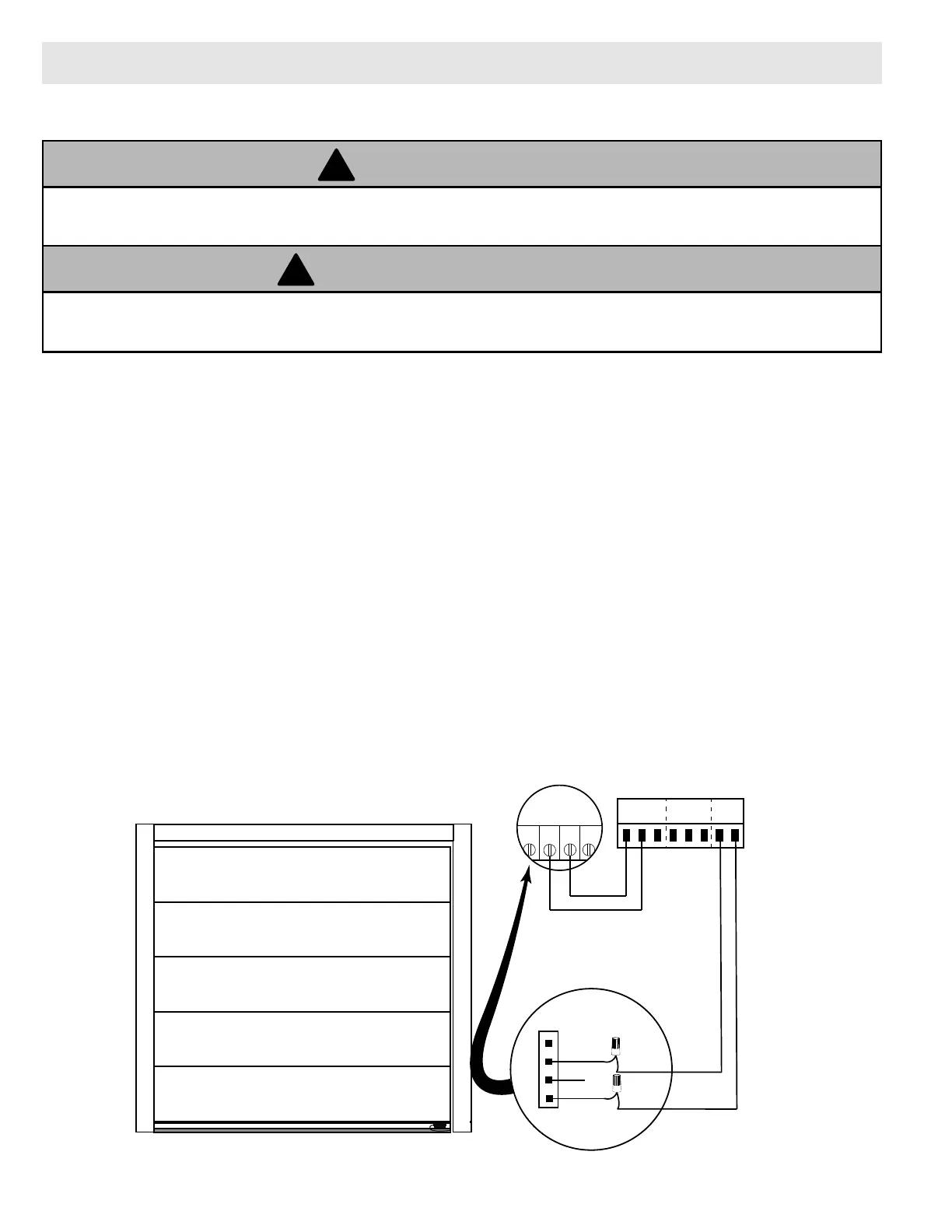

MillerEdge® Wireless Monitored Sensing Edge Installation
NOTE: Installer must enable ODC STB in CALIBRATION MODE (see programming section).
