4.6 J10 - BUS G-WAY ACCESSORIES
This board features a BUS G-WAY circuit for facilitating connection to the safety devices of a high number
of auxiliary BUS G-WAY (MAX 16 pairs of photocells), encoder and control devices.
If no BUS G-WAY accessories are used, leave the BUS G-WAY connector free.
BUS G-WAY photocells
Before connecting the photocells, arrange them for the duly address assignment, depending on their
position and operation mode:
Photocells during closing:
trip only during the
closing of the automated system
- suitable for
protecting the closing area from risk of impact.
Photocells during opening: trip only during the
opening of the automated system
- suitable for
protecting the opening area from risk of impact.
Photocells during opening/closing: trip during
both the opening and closing
- suitable for protec-
ting the entire movement area from risk of impact.
Pulse generators: used as pulse generators for
opening the automated system
.

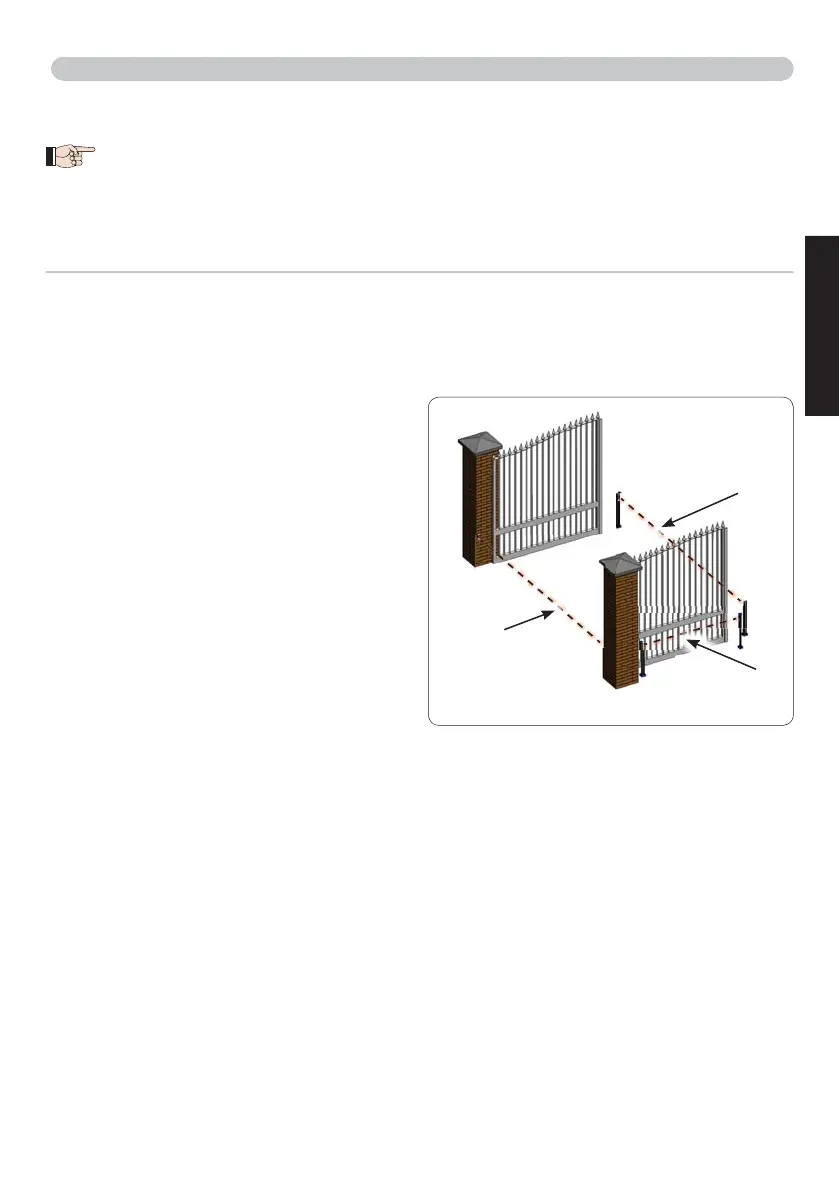

Closing
safety devices
Opening
safety devices
Opening/clo-
sing safety
devices
