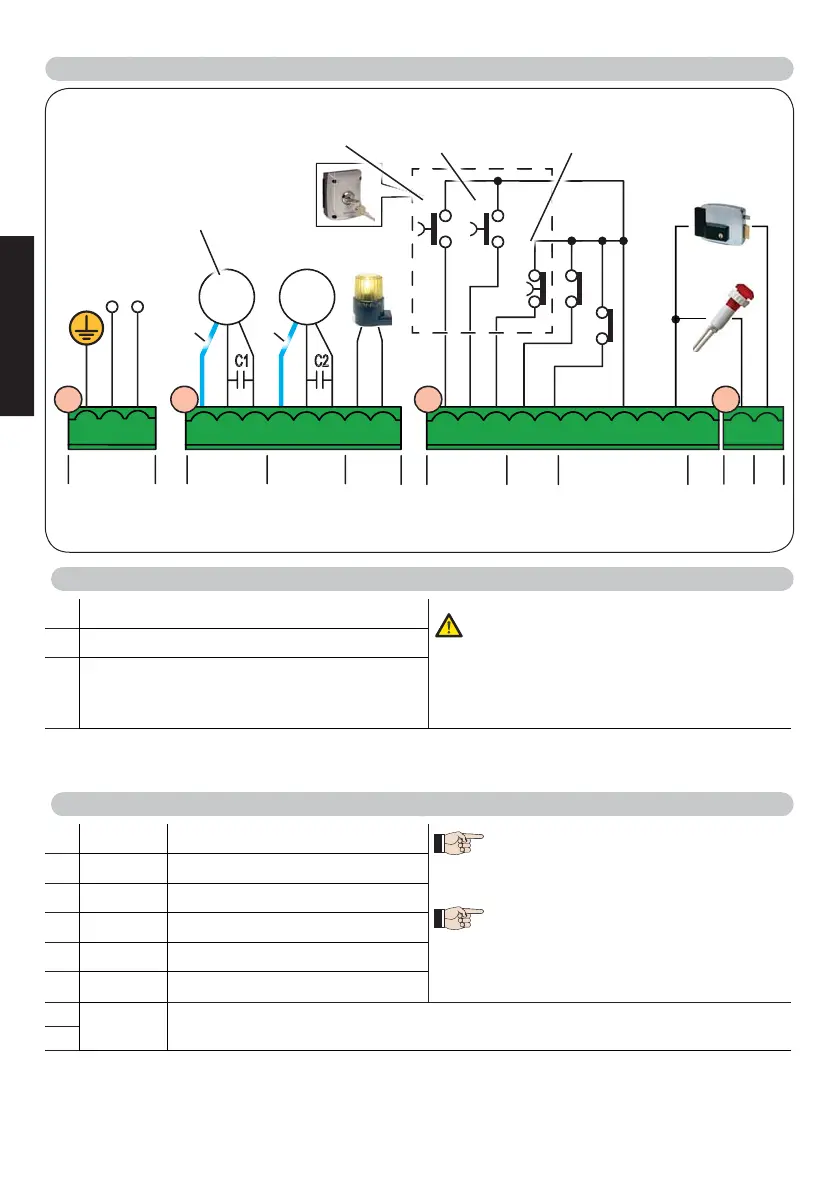

4. ELECTRICAL CONNECTIONS
4.1 J1 - MAINS PRIMARY POWER SUPPLY
PE Earthing Connection
For correct operation, you must con-
nect the switching power supply to the
system’s earthing conductor. Ensure
that upstream a suitable differential
magnetothermic switch has been in-
stalled.
N
Power Supply Connection 230 V~ ± 15% Neutral
L
Power Supply Connection 230 V~ ± 15% Line
Motor for SINGLE-LEAF or
FIRST LEAF when opening
(closes for the second)
OPEN A
Total gate opening
(contact N.O.)
OPEN B
Partial gate ope-
ning (contact N.O.)
STOP
Gate stop
(contact
N.C.)
*
Blue or grey
Photocells and safety devices:
for connections, see the rela-
ted paragraph.
4.2 J2 - MOTORS AND FLASHING LAMP
1 M1 - COM Common contact motor 1
M1 = first leaf when opening or single leaf
M2 = second leaf when opening - CAN-
NOT be used for single leaf
To verify correct wiring and direction
of motor rotation, (see 5.4 TIME LEAR-
NING - SETUP)
2 M1 - OP Opening phase motor 1
3 M1 - CL Closing phase motor 1
4 M2 - COM Common contact motor 2
5 M2 - OP Opening phase motor 2
6 M2 - CL Closing phase motor 2
7
LAMP Flashing lamp connection (MAX 60 W)
8
