Gent vigilon - Cable Termination on Enclosure; Wiring Test

23
Vigilon COMPACT fire system

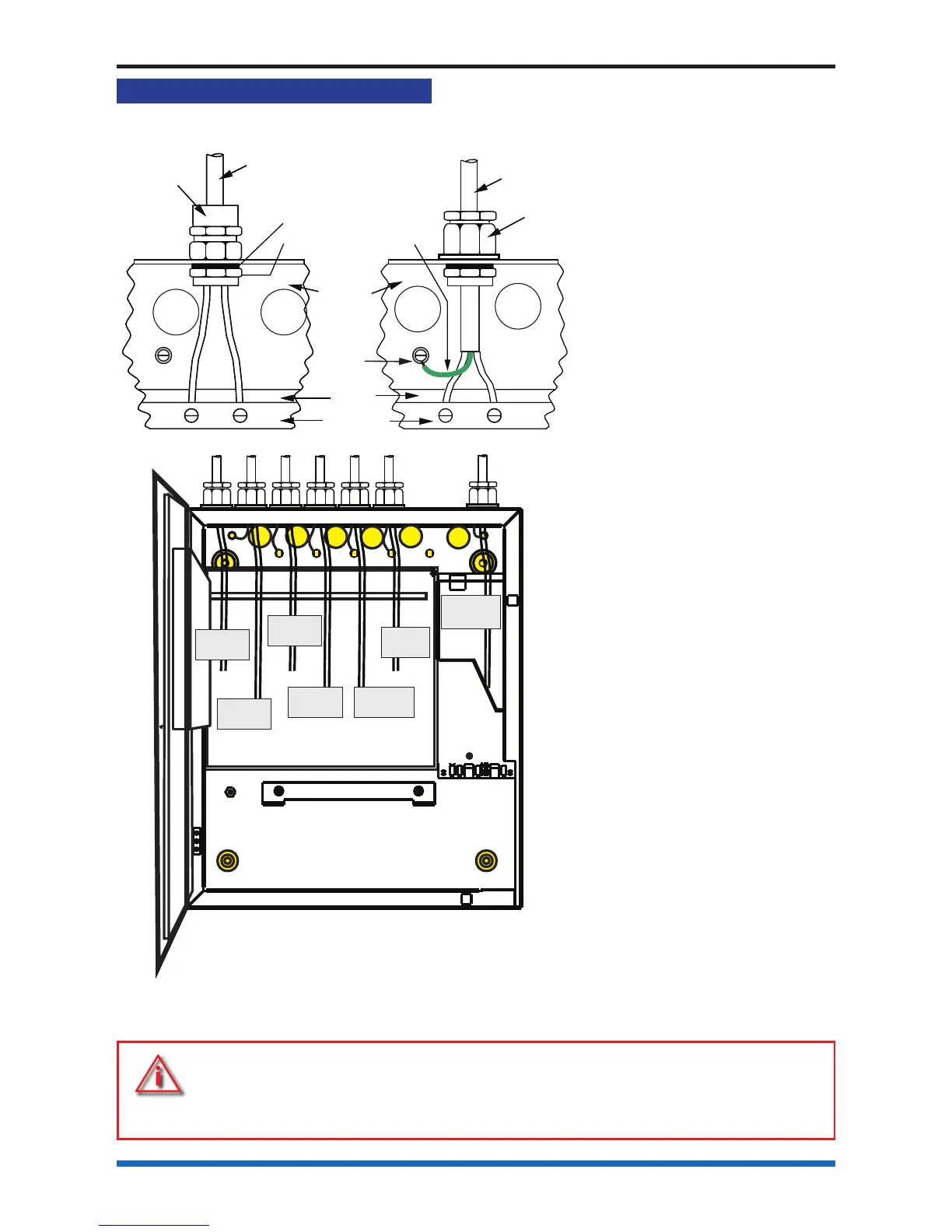

Cable termination on enclosure
MICC CABLE
GLAND
BRASS
LOCKNUT
ZINC
PLATED
LOCK
WASHER
GLAND
BOARD
TERMINALS
MICC
CABLE TERMINATION
MICC CABLE
GLAND
BRASS
LOCKNUT
ZINC
PLATED
LOCK
WASHER
Softskin Cable
GLAND
BOARD
TERMINALS
EARTH
DRAIN
WIRE
Should not
be more than
50mm long
and must be
sleeved
CABLE TERMINATION
PANEL
enclosure
Softskin (Fire Tuf)
REMOVE ONLY
DURING COMMISSIONING
MAINS
SUPPLY
LOOP 1
END 1
LOOP 1
END 2
Master
alarms 1
Master
alarms
NET 1
END 2
NET 1
END 1
Earth
point
The wire length between
the cable termination and
point of connection must
be as short as possible.
Cable earth drain wire,
where applicable, must be
connected to the nearest
earth point.
Terminate each cable at
the dedicated entry point
on the enclosure, using
the cable manufacturers
recommended techniques.
Where cables are not
required to be connected
leave 400mm tail wire length
(unless otherwise specifi ed)
and mark each core
identifying its fi nal point of
connection. Where the cable
is required to be connected,
ensure it is secure to the
respective terminal.
Wiring test
DO NOT undertake high voltage insulation tests WITH THE CABLES
CONNECTED to the panel and system device terminals. Such a test
may damage the electronics circuitry in loop devices and at the
panel.
