Vigilon COMPACT fire system
System wiring
If instructed, the installer may need to terminate as well as connect the cables to the
appropriate terminal blocks.
Cable separation
Where the outgoing and return cables of a loop circuit covers more than the equivalent
of one zone they must not run together, for example, either close to the Control Panel
or in a service duct. There should be as much physical separation as possible between
the cables and the mechanical protection of the cable should be to a particularly high
standard. This is to minimise the risk of accidental damage to both cables.

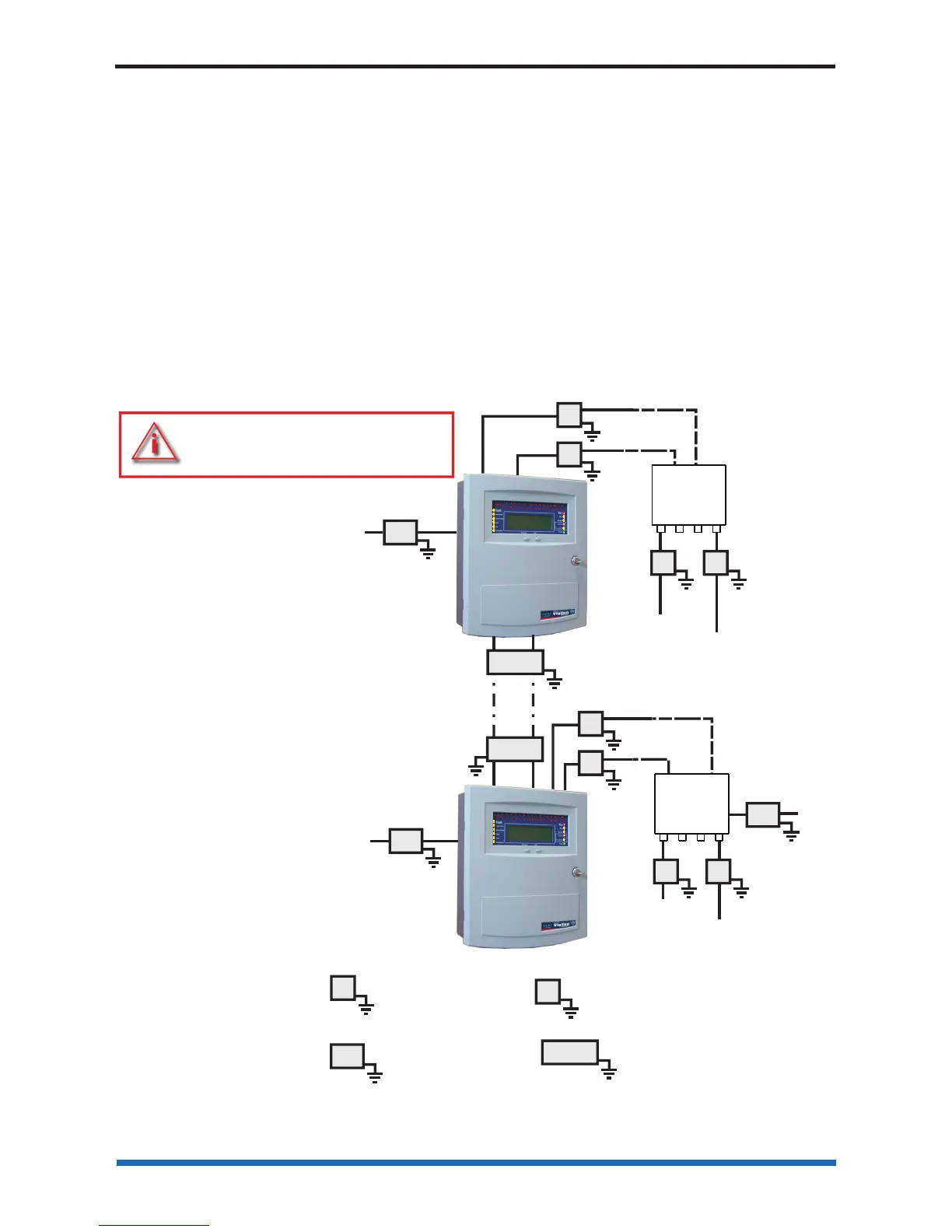

Lightning protection
Where a loop cable is mounted to an external wall or between two buildings then
consideration should be given to the use of lightning protection devices.
Vigilon Compact Fire System
GENT 2015
Designed to EN54 Pt 2 & 4
Panel healthy
15:45
Vigilon Compact Fire System
GENT 20
15
Designed to EN54 Pt 2 & 4
Panel healthy
15:45
Vigilon Compact
Control Panel
1
1
2 2
Zone circuit
Sounder circuit
3
230V ac
Other
loop devices
Loop voltage
surge protection
Mains 230Vac
voltage surge
protection
Input Output line
voltage surge
protection
There must be a good earth
connection to the voltage surge
protection devices.
Interface
Unit
1
1
2 2
Zone circuit
Sounder circuit
3
230V ac
3
230V ac
Other loop devices
4
Secure
Network
4
3
1
2
4
Network
voltage surge
protection
Mains
powered
interface
Vigilon Compact
Control Panel
