Auxiliary relay circuits
Auxiliary relay circuits
The control panel operates the auxiliary contacts when the confi gured event is received
from the system.
The auxiliary relays 1 and 2 contacts can be used to control external equipment, such
as an automatic dialer that makes the call for fi re fi ghting action. The relays can be
individually re-confi gured to operate with either fi re, fault or disablement event in the
system.
The relay operation can also be delayed by up to 10 minutes and can be set up
to operate in a normally energised or de-energised state. The contacts should be
powered from an independent power supply, where required.

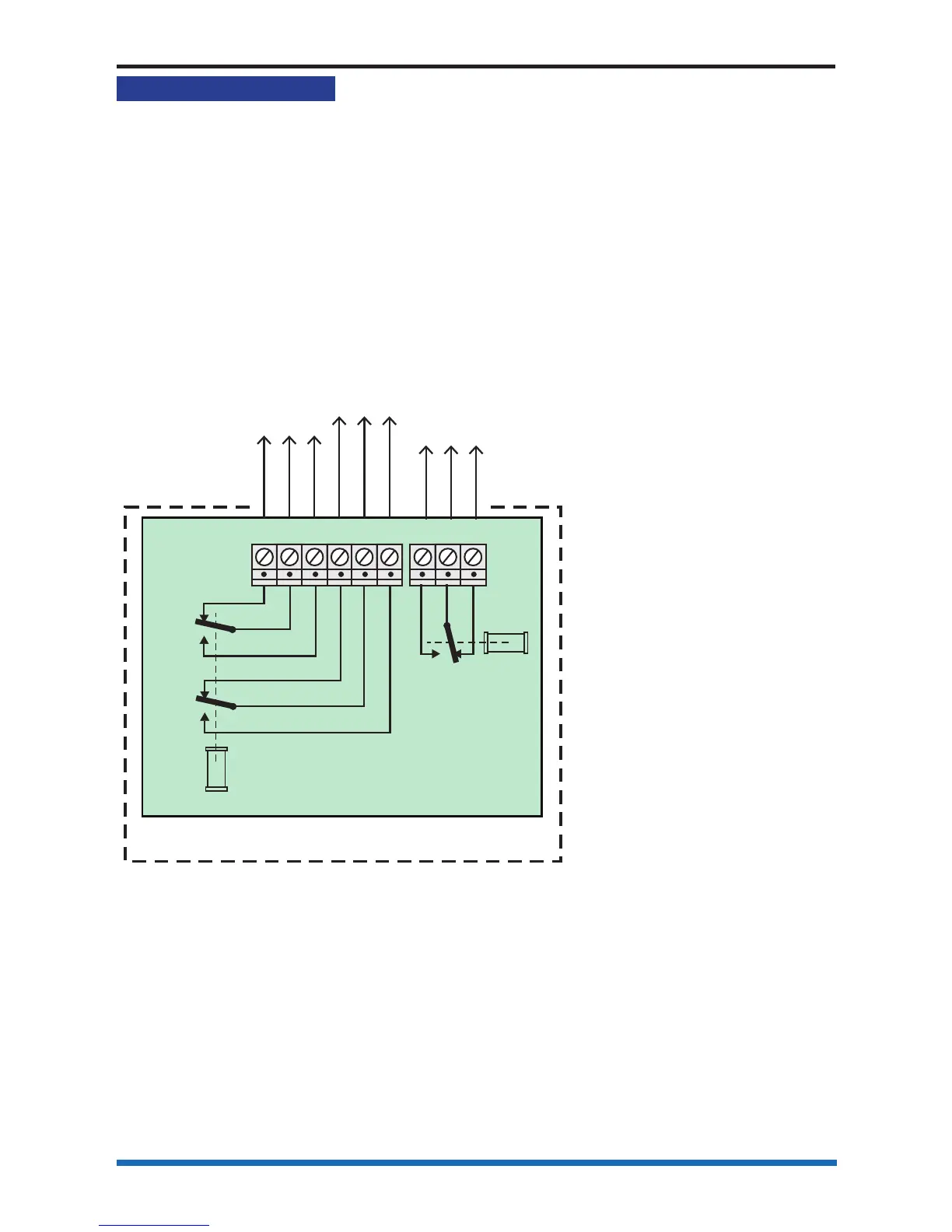

PANEL
MASTER CONTROL
BOARD
Factory default:
Aux relay 1 is normally de-energised and operates with a fire event without delay.
Aux relay 2 is normally energised and operates with fault event without delay.
NC
C
NO
NC
C
NO
NC
C
NO
PB10 PB11
AUXILIARY
RELAY 1
AUXILIARY
RELAY 2
Change over contacts rated 1A @ 24Vdc,
to control external equipment
i
Configurable delayed
operation.
Up to 10 minutes delay
