Vigilon COMPACT fire system

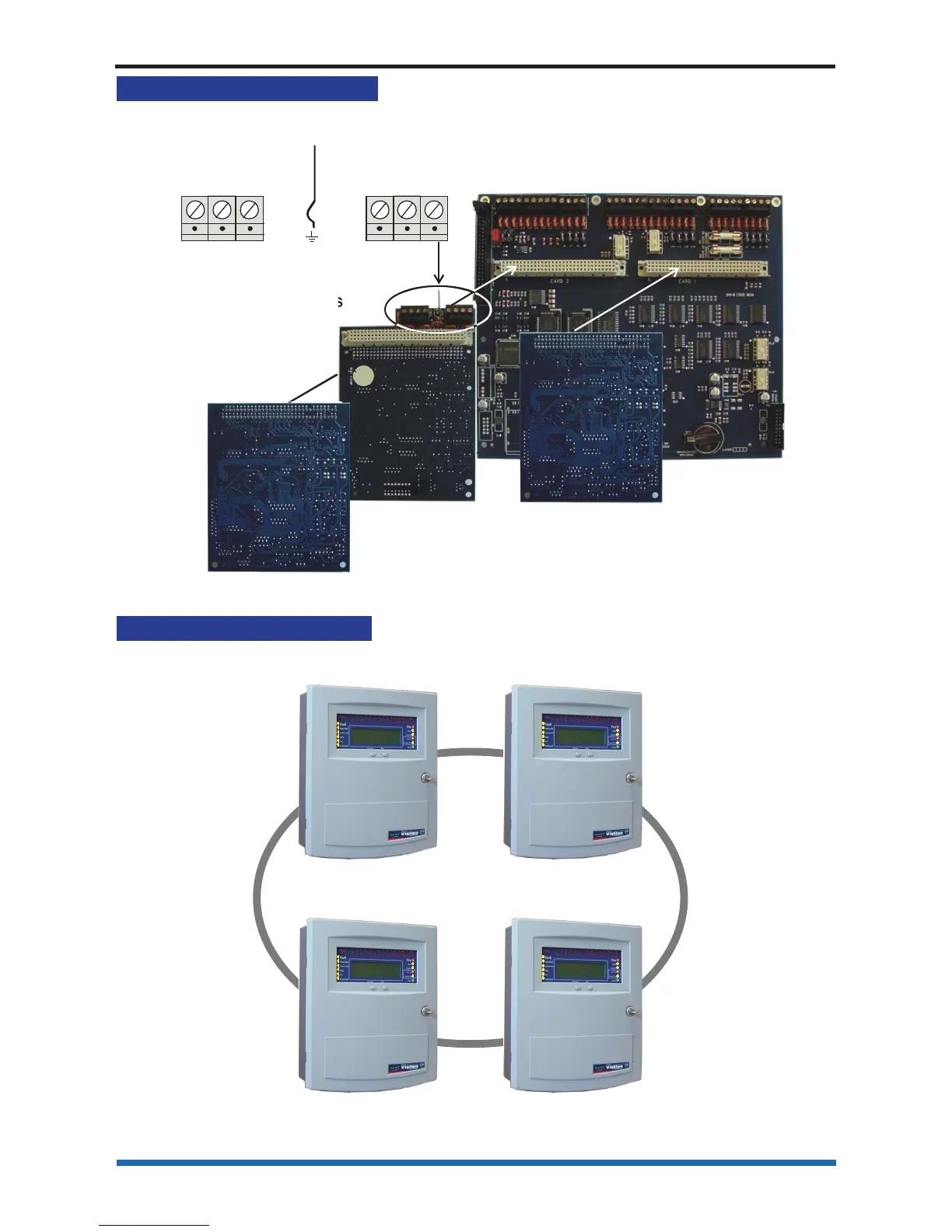

Network card connections
The Network card has the terminals for network cable connection. The Network card is
fi tted during system commissioning.
Master Control Board
Network Card
Loop Card
Terminals for network
connections
PB2
L1-
0V L1+
PB1B
L2-
0V L2+
Loop Card
PB1A
Vigilon Compact Network
A secure network can have up to 31 control panels connected in a loop using any one
of the recommended network cable.
Vigilon Compact
Control panel (Networkable)
Vigilon Compact
Control panel (Networkable)
Vigilon Compact
Control panel (Networkable)
Vigilon Compact
Control panel (Networkable)
1.2Km
1.2Km
1.2Km
1.2Km
Vigilon Compact Fire System
GENT 2015
Designed to EN54 Pt 2 & 4
Panel healthy
15:45
Vigilon Compact Fire System
GENT 2015
Designed to EN54 Pt 2 & 4
Panel healthy
15:45
Vigilon Compact Fire System
GENT 2015
Designed to EN54 Pt 2 & 4
Panel healthy
15:45
Vigilon Compact Fire System
GENT 2015
Designed to EN54 Pt 2 & 4
Panel healthy
15:45
